Kärcher carpet cleaner with a long handle and transparent nozzle, featuring a grey body and yellow accents.

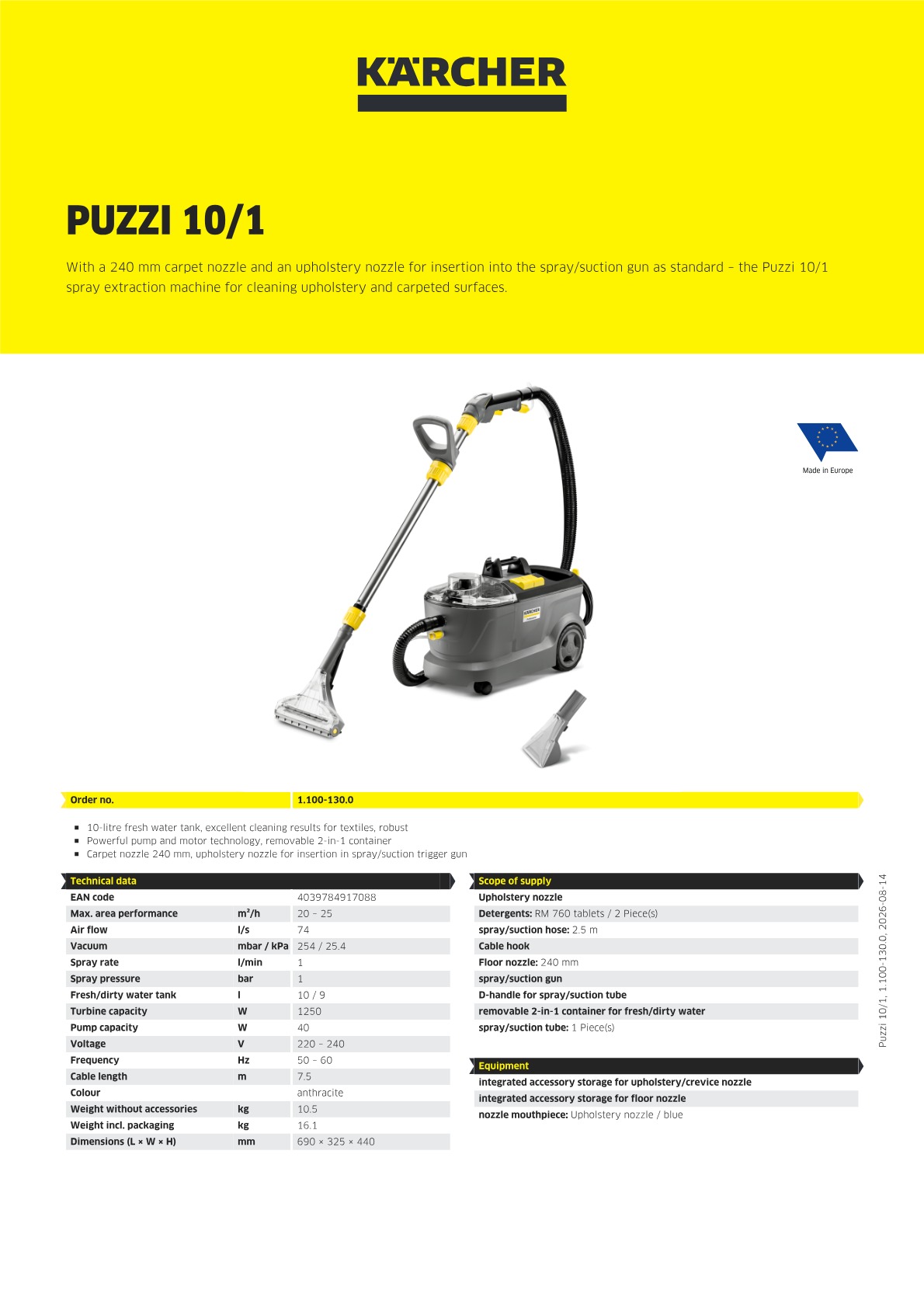

Spray extraction machine

Puzzi 10/1

Order number: 1.100-130.0

10-litre fresh water tank, excellent cleaning results for textiles, robust
Powerful pump and motor technology, removable 2-in-1 container
Carpet nozzle 240 mm, upholstery nozzle for insertion in spray/suction trigger gun

Technical data

Max. area performance (m²/h)	20 - 25
Air flow (l/s)	74
Vacuum (mbar / kPa)	254 / 25.4
Spray rate (l/min)	1
Spray pressure (bar)	1
Fresh/dirty water tank (l)	10 / 9
Turbine capacity (W)	1250
Pump capacity (W)	40
Voltage (V)	220 - 240
Frequency (Hz)	50 - 60
Cable length (m)	7.5
Colour	anthracite
Weight without accessories (kg)	10.5
Weight incl. packaging (kg)	16.1
Dimensions (L × W × H) (mm)	690 x 325 x 440

Scope of supply

Upholstery nozzle
Detergents: 2Piece(s)
spray/suction hose: 2.5m
Cable hook
Floor nozzle: 240mm
spray/suction gun
D-handle for spray/suction tube
removable 2-in-1 container for fresh/dirty water
spray/suction tubePiece(s)

Equipment

integrated accessory storage for upholstery/crevice nozzle
integrated accessory storage for floor nozzle
nozzle mouthpiece

Product information and benefits

The professional Puzzi 10/1 spray extraction cleaner from Kärcher delivers excellent suction power, as well as providing hygienic cleaning results and ensuring that textile surfaces can be used again quickly. For this purpose, the spray extraction machine sprays the cleaning solution deep into the textile fibres, then removes it again with the dislodged dirt, making it perfect for cleaning upholstery, carpets and other textile surfaces. The robust, compact design of the Puzzi 10/1 ensures a long lifetime and thus high cost-effectiveness – ideal for building service contractors, the hotel and hospitality sector or for cleaning vehicle interiors. The appliance lid, upholstery nozzle and floor nozzle are transparent for a better view of the dirty water. Large push-buttons that can be operated by hand or foot also increase convenience for the user. In addition, the machine comes with an integrated cable hook and a fixture for the upholstery nozzle and suction tube.

Excellent cleaning performance

Perfect fibre-deep cleaning of textile surfaces. Fast drying means that surfaces can quickly be used again thanks to the excellent back suction performance. Excellent cleaning result with visible before-and-after effect.

Professional quality: extremely robust and durable

Efficient pump with a long lifetime. Powerful turbine with excellent back suction performance. Robust design and bumper protect the machine from bumps and knocks.

Comprehensive set of carpet cleaning accessories

Flexible suction lip for optimum suction angle and ultimate drying results. 240 mm wide floor nozzle with integrated spray/suction tube. Ergonomic two-handed grip for extra user comfort.

Handy upholstery nozzle

Easy yet thorough cleaning of upholstery and upholstered furniture. Perfect for vehicle interior cleaning. 110 millimetre-wide nozzle for insertion into the spray/suction gun.

Removable, smart 2-in-1 container

Quick and simple to fill the fresh water tank. Convenient and simple to remove dirty water.

Easy to operate thanks to two large push-buttons

No need to bend down: on/off foot switch for speed and ease of use. Quick 1-step method: combined spraying and vacuuming in one operation. 2-step method: Spray on fibres and leave to soak in – then vacuum off.

Large rear wheels and flexible 360° steering rollers

Easy manoeuvring even on uneven surfaces. Particularly manoeuvrable and flexible to handle when cleaning.

Cable hook

For safe storage of the power cable. Practical and protects the cables. The machine can be easily and conveniently transported and stored.

Integrated storage for the upholstery nozzle and the carpet nozzle

Thanks to the clip design, the upholstery nozzle is always within reach. Integrated suction tube holder with a floor nozzle in the carrying handle.

Product safety and documents

Applications and videos

Application areas

For intensive fibre-deep cleaning of upholstery and upholstered furniture
For intermediate cleaning and targeted stain removal on carpets
For cleaning all textile surfaces – including car interiors
For intensive fibre-deep cleaning of upholstered car seats
For targeted fibre-deep cleaning of smaller carpeted areas
For cleaning upholstery and textile surfaces in hygienically sensitive areas
For fibre-deep cleaning of carpets and textile floor coverings
