Sale

Kärcher spray extraction cleaner, grey and yellow, with a clear water tank, flexible hose, and hand nozzle, on a white background.

Spray extraction machine

Puzzi 8/1

Order number: 1.100-240.0

8-litre fresh water tank, excellent cleaning results for textiles, robust
Powerful pump and motor technology, removable 2-in-1 container
Short and ergonomic upholstery nozzle, 2.5 m spray/suction hose

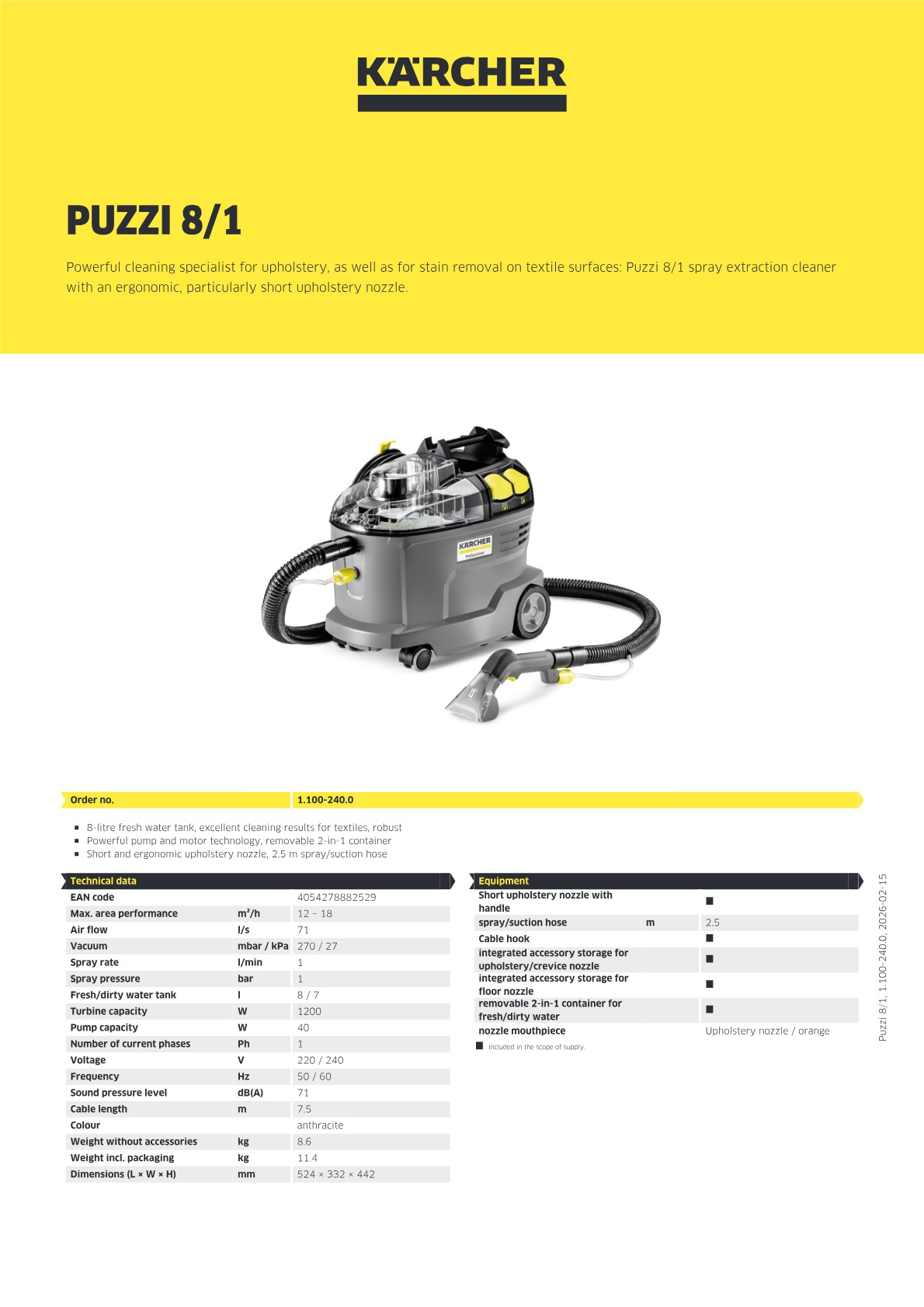

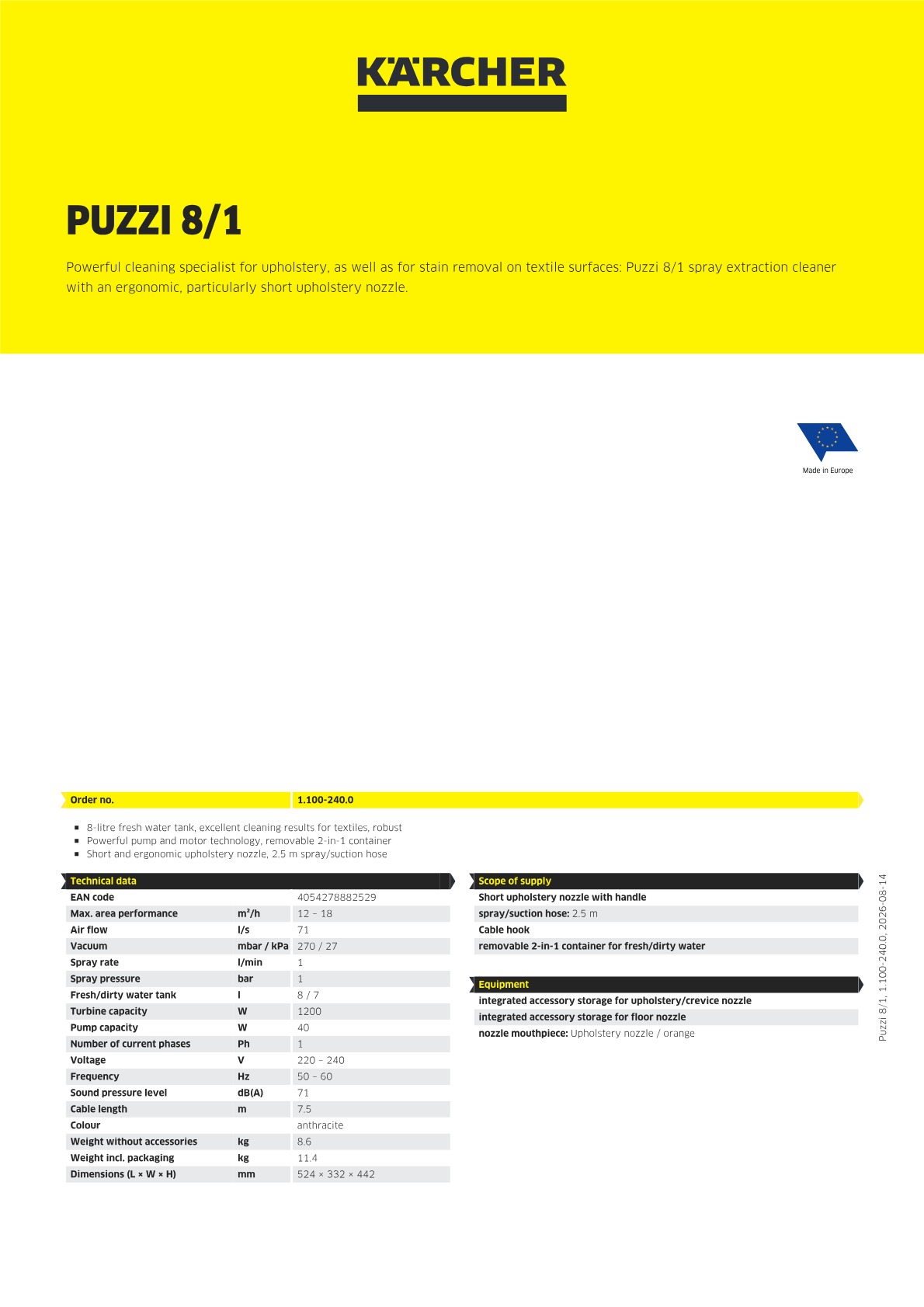

Technical data

Max. area performance (m²/h)	12 - 18
Air flow (l/s)	71
Vacuum (mbar / kPa)	270 / 27
Spray rate (l/min)	1
Spray pressure (bar)	1
Fresh/dirty water tank (l)	8 / 7
Turbine capacity (W)	1200
Pump capacity (W)	40
Number of current phases (Ph)	1
Voltage (V)	220 - 240
Frequency (Hz)	50 - 60
Sound pressure level (dB(A))	71
Cable length (m)	7.5
Colour	anthracite
Weight without accessories (kg)	8.6
Weight incl. packaging (kg)	11.4
Dimensions (L × W × H) (mm)	524 x 332 x 442

Scope of supply

Short upholstery nozzle with handle
spray/suction hose: 2.5m
Cable hook
removable 2-in-1 container for fresh/dirty water

Equipment

integrated accessory storage for upholstery/crevice nozzle
integrated accessory storage for floor nozzle
nozzle mouthpiece

Product information and benefits

Robust, durable, efficient: The Puzzi 8/1 spray extraction cleaner from Kärcher impressively cleans upholstery and removes stains from textile surfaces with outstanding and hygienic cleaning results and high efficiency. The compact spray extraction machine sprays the cleaning solution deep into the textile fibres and then removes it again with the dislodged dirt. This excellent back suction performance also ensures quick drying and means that the textile surfaces can be used again quickly – ideal for the high demands of cleaning professionals in the hotel and hospitality sector or in vehicle interior cleaning. The standard, extra-short upholstery nozzle for convenient, ergonomic cleaning of narrow spaces can also be used. Thanks to its very low weight and ergonomic carrying handle, the spray extraction cleaner can easily be transported with one hand. Large push-buttons that can be operated by hand or foot also increase convenience for the user. The appliance lid and the hand nozzle are transparent for a better view of the dirty water.

Puzzi 8 1 Adv sofa hotel app 04 CI20502x502

Excellent cleaning performance

Perfect fibre-deep cleaning of textile surfaces. Fast drying means that surfaces can quickly be used again thanks to the excellent back suction performance. Excellent cleaning result with visible before-and-after effect.

Puzzi 8 1 Adv bed hotel room app 04 CI20502x502 1

Ergonomically designed and extra-short upholstery nozzle

Handle and pressure switches can be operated with just one finger. Practical knob shape allows different holding positions. Red nozzle mouthpiece ensures efficient water consumption.

Puzzi 8 1 adv stairwell app 05 CI20502x502

Light weight and compact, robust design

Effortless, also one-handed transport over ledges and steps. Designed for long periods of fatigue-free use. Long service life ensures high efficiency.

Removable, smart 2-in-1 container

Quick and simple to fill the fresh water tank. Convenient and simple to remove dirty water. Quick-start illustration for simple operation.

Easy to operate thanks to two large push-buttons

No need to bend down: on/off foot switch for speed and ease of use. Quick 1-step method: combined spraying and vacuuming in one operation. 2-step method: Spray on fibres and leave to soak in – then vacuum off.

Large rear wheels and flexible 360° steering rollers

Easy manoeuvring even on uneven surfaces. Particularly manoeuvrable and flexible to handle when cleaning.

Folding cable hook

For safe storage of the power cable. Practical and protects the cables. The machine can be easily and conveniently transported and stored.

Large, open, fresh water filling opening

Convenient, safe and quickly filled with fresh water. Clearly visible maximum level indicator. No spillage when dragging or pushing back the machine.

Integrated storage for the upholstery nozzle

Thanks to the clip design, the upholstery nozzle is always within reach. Secure storage even during transport.
