Sale

Kärcher hose reel with black casing and yellow nozzle, mounted on a wall bracket.

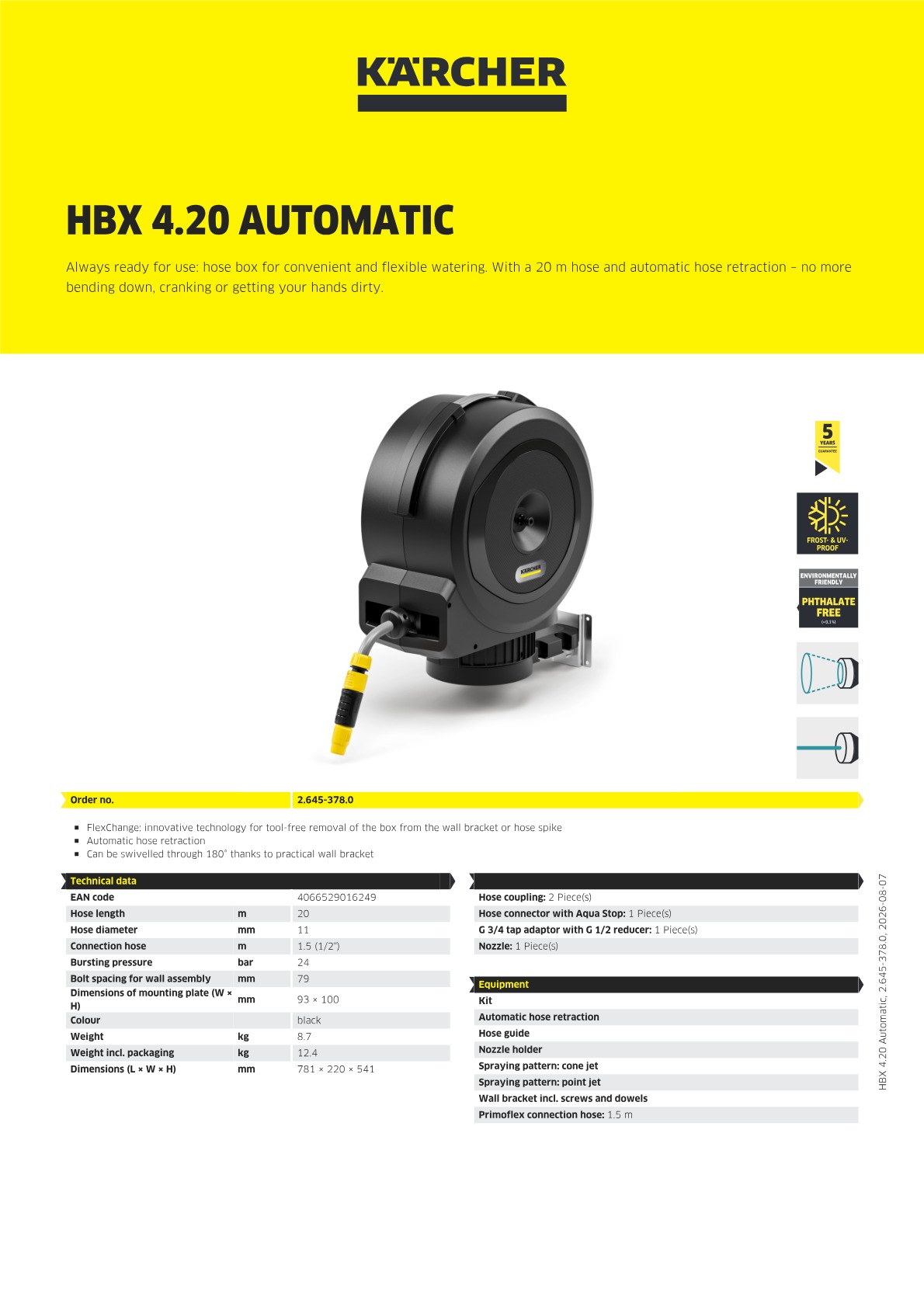

HBX 4.20 Automatic

Order number: 2.645-378.0

FlexChange: innovative technology for tool-free removal of the box from the wall bracket or hose spike
Automatic hose retraction
Can be swivelled through 180° thanks to practical wall bracket

Show full label

Technical data

Hose length (m)	20
Hose diameter (mm)	11
Connection hose (m)	1.5
Bursting pressure (bar)	24
Bolt spacing for wall assembly (mm)	79
Dimensions of mounting plate (W × H) (mm)	93 x 100
Colour	Black
Weight (kg)	8.7
Weight incl. packaging (kg)	12.4
Dimensions (L × W × H) (mm)	781 x 220 x 541

Scope of supply

Hose coupling, 2 Piece(s)
Hose connector with Aqua Stop, 1 Piece(s)
G 3/4 tap adaptor with G 1/2 reducer, 1 Piece(s)
Nozzle, 1 Piece(s)

Equipment

Kit
Automatic hose retraction
Hose guide
Nozzle holder
Spraying pattern: cone jet
Spraying pattern: point jet
Wall bracket incl. screws and dowels
Primoflex connection hose

eye catcher 5 years guarantee CMYK oth 07 EN CI15

picto Frost UV Proof CMYK oth 01 EN CI15 284x284px

picto cone jet oth 1 CI15 86776 CMYK 1 1

picto power jet oth 1 CI15 86763 CMYK 1 1

Product information and benefits

Always ideally stowed: the stylish hose box is mounted on the wall to save space, and connected to the tap with a connection hose. Thanks to the wall bracket, the hose box can be swivelled by more than 180°, allowing the hose to reach every corner of the garden with ease. The garden hose can be easily extended to a maximum length of 20 metres. There are corresponding locking stages: the hose engages fully automatically at short intervals. Gently pulling on the end of the hose releases the locking mechanism so that the hose retracts automatically and in a controlled manner, without kinks or knots. With the innovative FlexChange assembly system, the hose box can be removed from the wall bracket without the need for any tools. This is ideal for easy stowage in the winter or for flexible use between the wall bracket and hose spike, which is available as an optional accessory. The hose box is also UV-resistant and frost-proof, and can therefore be kept on the house wall all year round. To protect against theft, a cable lock can be attached. Kärcher offers a five-year warranty for the product.

FlexChange

No screws, no tools, no stress: with the unique Kärcher FlexChange system, the hose box can be removed from the wall bracket or hose spike in seconds (e.g. in winter).

Practical nozzle holder

Nozzles and spray lances can be hung on the wall bracket for convenient storage.

Hose storage

Pull briefly on the end of the hose and the hose retractor will retract the hose fully automatically. Maximum comfort without knots, cranks or getting your hands dirty.

Hose outlet on the underside of the box

For better protection from the weather and a longer lifetime.

Wall-mounted hose box with 180° application

Mounted on the wall bracket, the hose box can be swivelled by over 180°. This allows maximum freedom of movement when watering the garden without kinking the hose.

Removable wall bracket

The metal core construction is designed for demands in the garden. The removable wall bracket prevents catching on it.

Integrated hose brake

The automatic hose retraction is combined with a hose brake so that the hose is automatically wound back into the hose box in a controlled and slow manner.

Integrated hose guide

Without kinking and knotting: the hose is pulled in evenly and guided.

Ergonomic carrying handle

The ergonomic carrying handle makes it easy to transport the hose box with one hand.
