Industrial vacuum

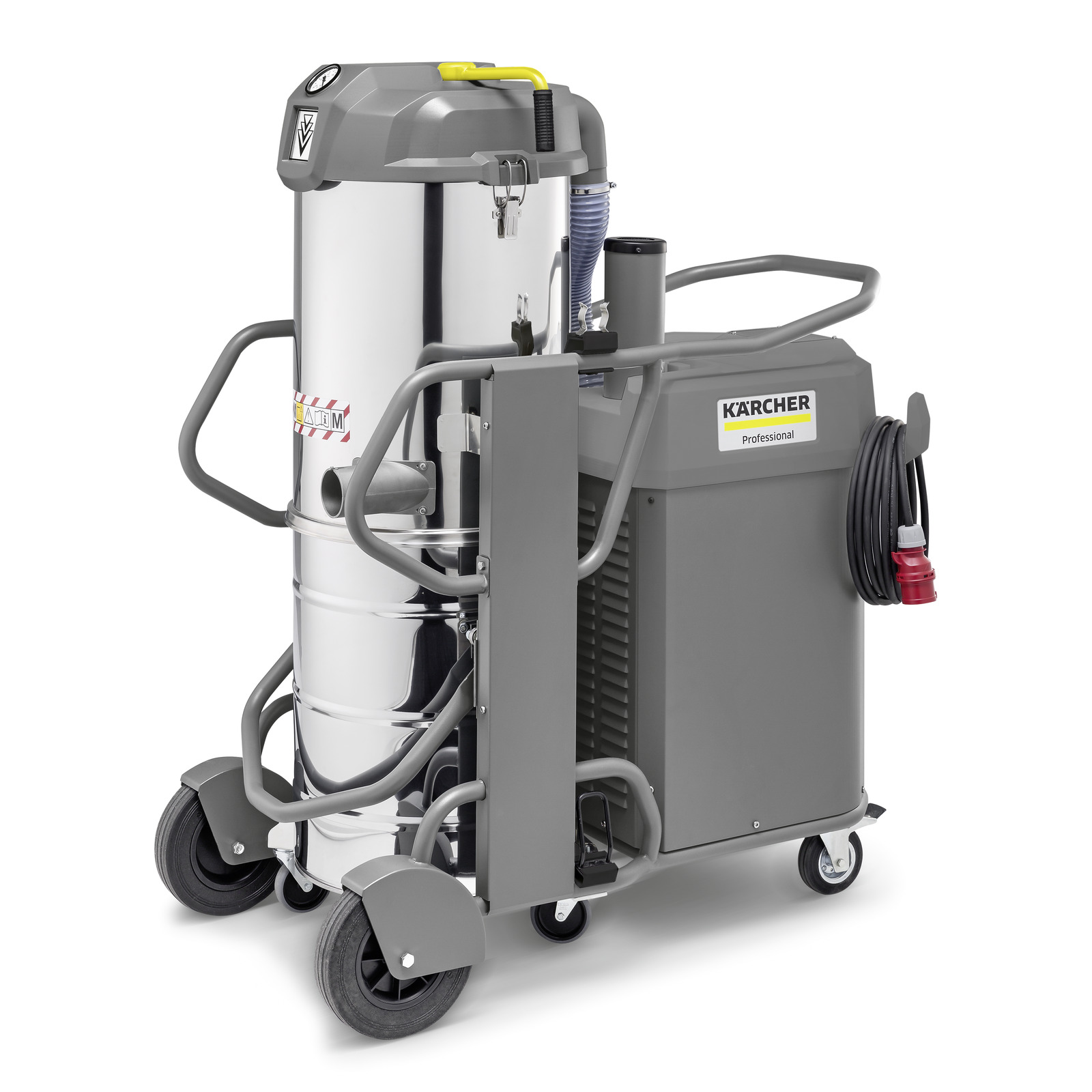

IVS 100/75 M

This device requires instruction

Part number: 1.573-822.0

Our most powerful industrial vacuum from the super-class range with dust class M certification: IVS 100/75 M with 7.5 kW side channel blower for very large quantities of dusts that are hazardous to health.

Make an enquiry

Technical data

Power supply (Ph / V / Hz)	3 / 400 / 50
Air flow (l/s / m³/h)	148 / 536
Vacuum (mbar / kPa)	290 / 29
Container capacity (l)	100
Container material	Stainless steel
Rated input power (kW)	7.5
Vacuuming type	Electric
Sound pressure level (dB(A))	73
Main filter dust class	M
Filter area for main filter (m²)	2.2
Weight without accessories (kg)	165
Weight incl. packaging (kg)	177
Dimensions (L × W × H) (mm)	1202 x 686 x 1465

Equipment

Accessories included with machine: no

Recommended maximum duration of use in hours/day.

Product information and benefits

The IVS 100/75 M is the top model in our super-class industrial vacuum range with dust class M certification. Fitted with extremely high-performance components, such as the 7.5 kW side channel blower, it also safely vacuums very large quantities of fine dusts that are hazardous to health. The largest three-phase motor in this class works with high efficiency (IE2) and features a soft start-up function which effectively prevents peaks in power during start-up. In addition, the machine is designed for mobile and stationary continuous use and is equipped with a corrosion-free stainless steel container with a volume of 100 litres and a set-down mechanism along with a large, 16-pleated star filter. The filter system is cleaned by means of a manual, horizontal filter shaker. A special gearbox for targeted power transmission ensures comparable cleaning results at all times and regardless of how much force is applied by the user. Accessories can be stowed on the machine for safe transportation, while the optional remote control is a very practical addition to the wide range of equipment on the IVS 100/75 M.

Dust class M

Complete device certified according to DIN EN 60335-2-69 for dust class M.

Wear-resistant side channel compressor

With 7.5 kW power and soft start for large quantities of dust and solids. For strong suction power and service life of at least 20,000 hours. Suitable for multiple shift operation and/or with multiple suction points.

Manual IVS filter cleaning

Effortless operation by means of an ergonomically placed lever if required. Extends the life of the filter and thus reduces the maintenance effort. Identical cleaning results, regardless of the amount of force used.

Equipped with a large star filter

Also suitable for oily and adhesive dusts thanks to special coating. Also suitable for large quantities of dust. Large industrial rollers ensure maximum mobility even on uneven floors and under heavy load.

IVS 100/75 M

Technical data

Product information and benefits

Dust class M

Wear-resistant side channel compressor

Manual IVS filter cleaning

Equipped with a large star filter
