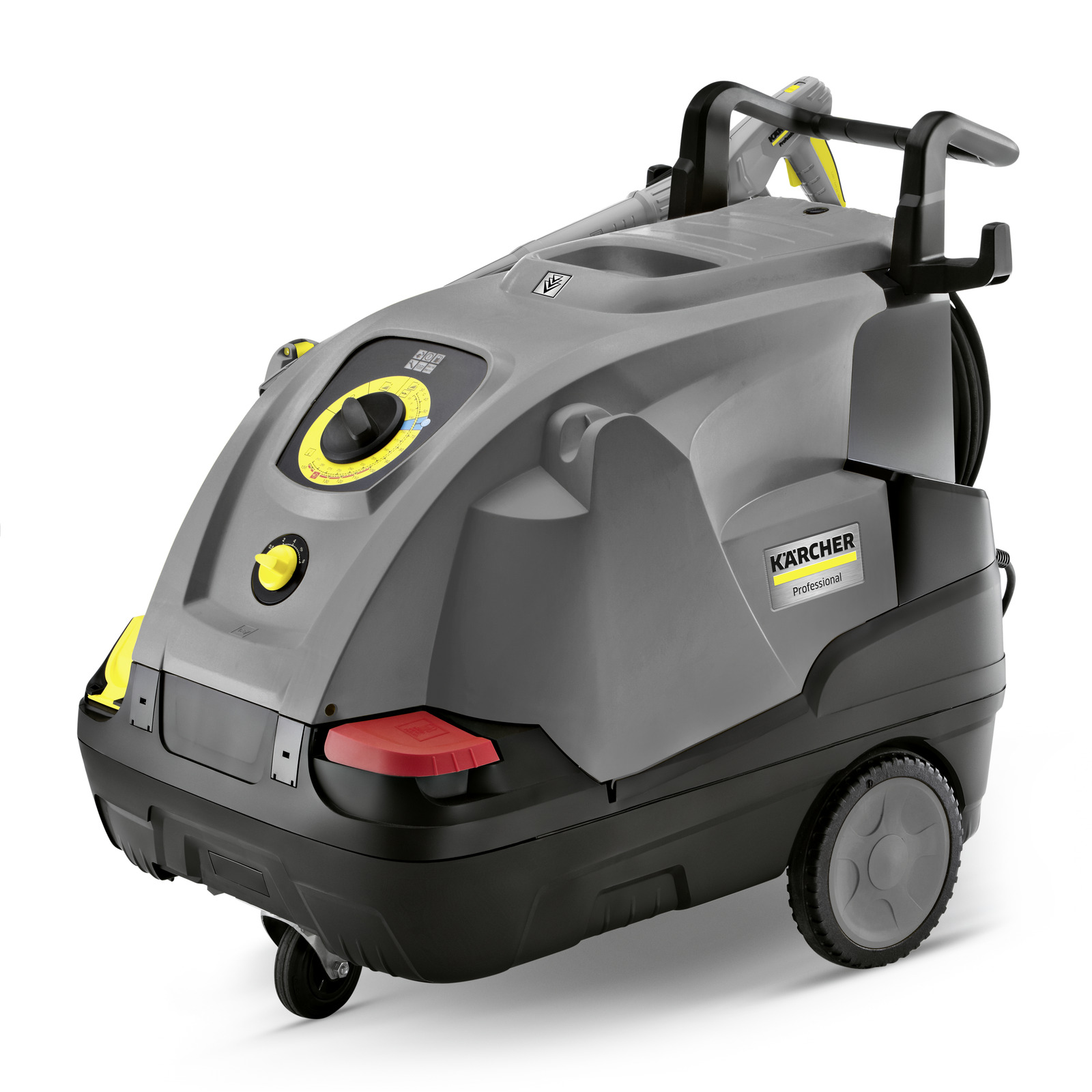

Kärcher professional high-pressure cleaner with grey body, yellow control dial, and black wheels.

Awards and exclusive range

High pressure cleaner

HDS 6/10-4 C

This device requires instruction

Part number: 1.170-901.0

Compact hot water pressure washer with eco!efficiency mode and 4-pole motor for longer period of operation

Make an enquiry

Technical data

Power supply (Ph / V / Hz)	1 / 240 / 50
Flow Rate (l/h)	320 - 610
Operating pressure (bar / MPa)	30 - 105 / 3 - 10.5
Temperature (supply 12°C) (°C)	max. 80
Power rating (kW)	3
Heating oil consumption ( 60°C) / eco!efficiency mode (kg/h)	3.5
Heating oil consumption, eco!efficiency (kg/h)	2.8
Power cable (m)	5
Fuel tank (l)	15
Weight (with accessories) (kg)	111.2
Weight incl. packaging (kg)	120
Dimensions (L × W × H) (mm)	1060 x 650 x 920

Scope of supply

Trigger gun
Spray lance: 1050 mm
Power nozzle

Equipment

High-pressure hose length
High-pressure hose specification: DN 6, 250 bar
SDS system
Pressure switch control
Integral fuel and detergent tank

Recommended maximum duration of use in hours/day.

High-pressure trigger gun with zero holding force for fatigue-free operation.

Robust, long-lasting quick-release lock: five times faster than screwing.

Weeding with our weed remover and hot water high-pressure cleaners without chemicals.

Product information and benefits

State-of-the-art 4-pole compact hot water pressure washer with unique eco!efficiency mode that reduces diesel consumption by 20% without compromising daily cleaning performance. The machine's 4-pole motor runs more slowly than a standard 2-pole motor, reducing operating noise and prolonging service life. The HDS 6/10-4 C also features Kärcher’s unique Machine Protector system that prolongs component life and provides a 3-year burner coil warranty. With central one-button operation, excellent mobility and superb cleaning performance the HDS 6/10-4 is easy to set-up, intuitive to operate and cheap to run.

Efficiency

eco!efficiency mode – economical and environmentally friendly, even during longer periods of use. Reduces fuel consumption and CO2 emissions by 20%.

Ease of use

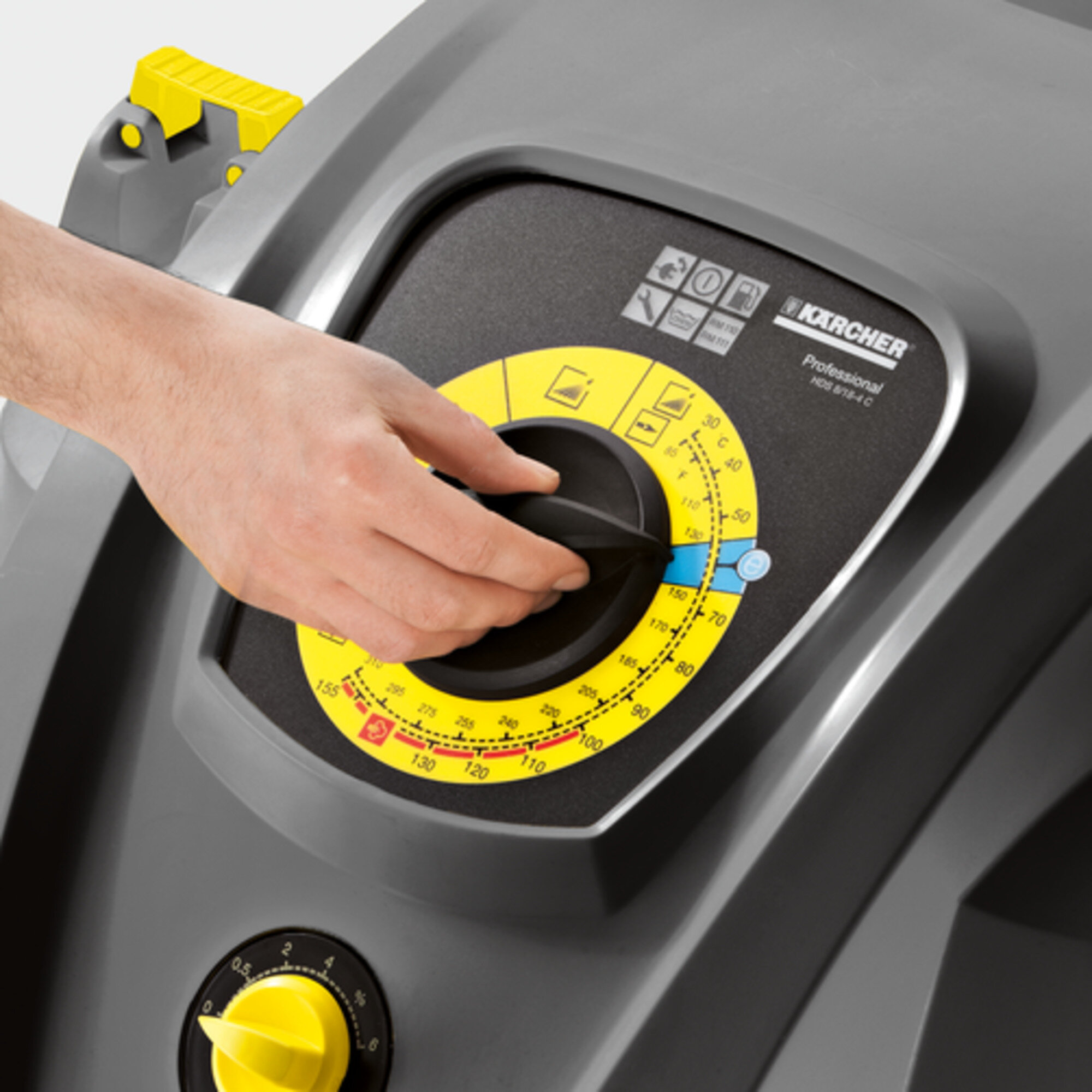

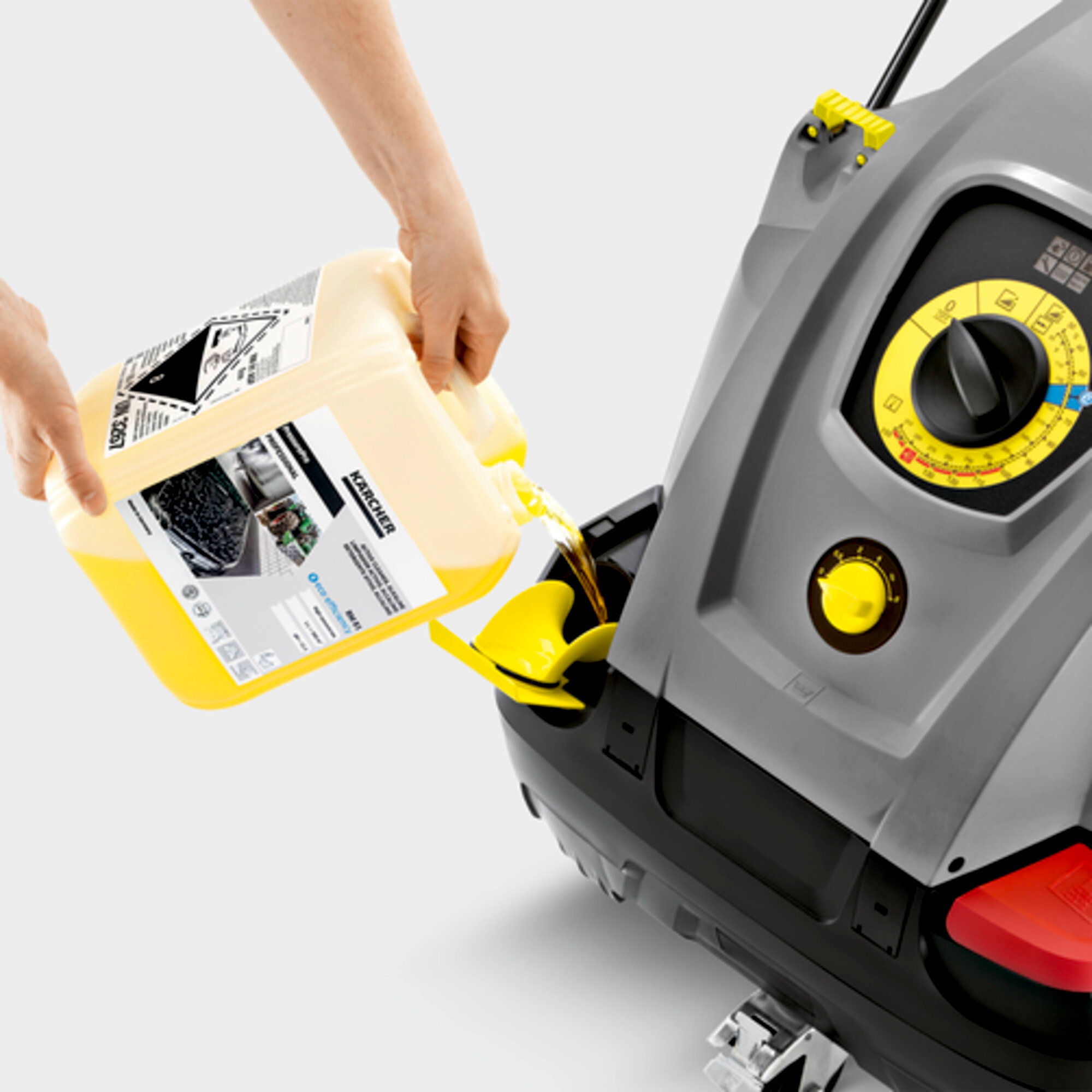

Intuitive operation thanks to the large single-button selector switch. Large tank opening with filling chute. System care bottle can be changed conveniently from the outside.

Storage

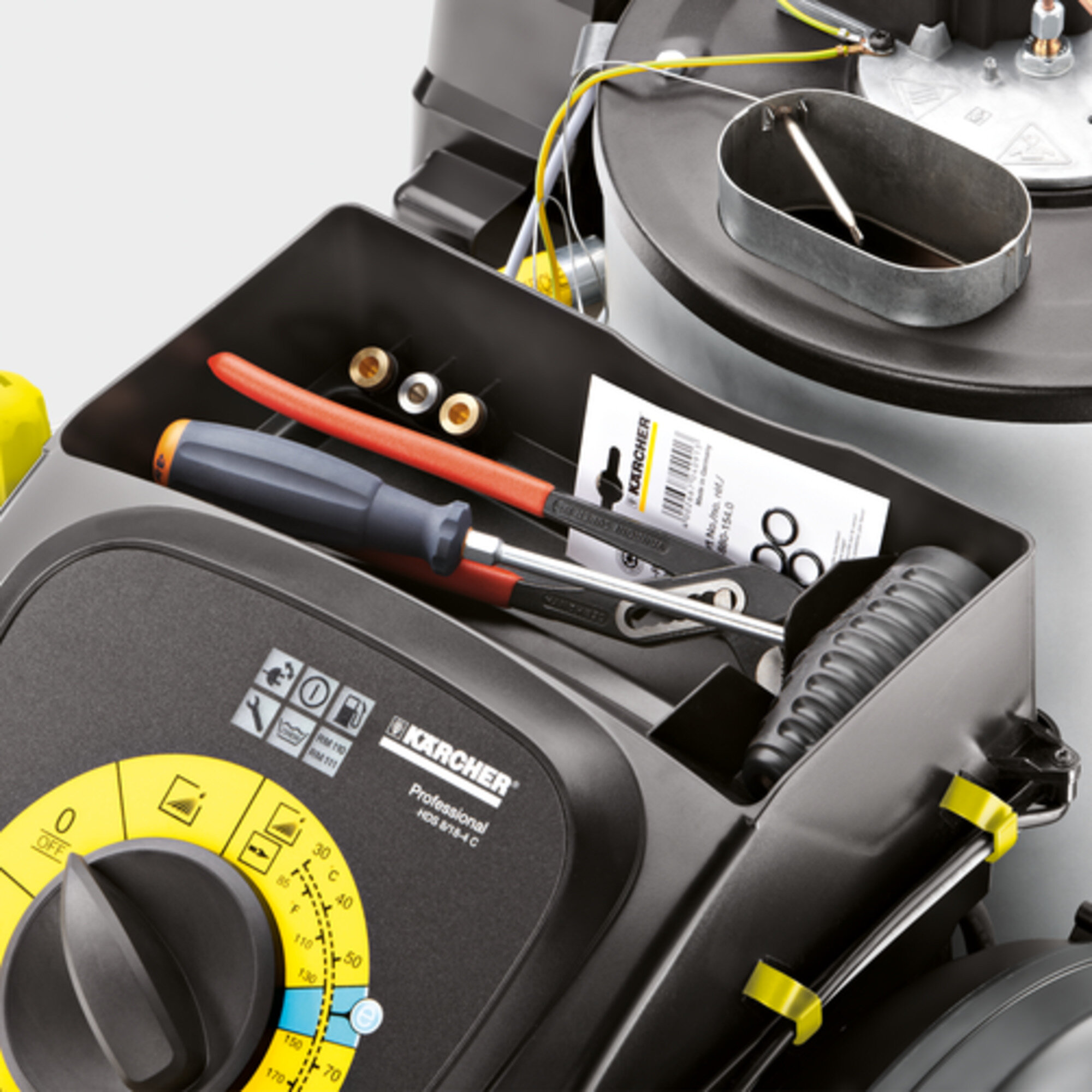

Lockable accessory compartment for nozzles, tools, etc. Storage hooks for power cable and high-pressure hose. Integrated lance holder for transport.

Reliability

Water softening system to protect the heating coil against calcification damage. Large water filter protects pump against damage. An integrated exhaust gas thermostat switches off the drive motor if the exhaust gas temperature exceeds 300°C.

Mobility

Jogger principle with large wheels and steering roller. Large integrated handles in the chassis. Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.

Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners

Fatigue-free work at last: the EASY!Force high pressure gun. EASY!Lock quick-release locks: durable and robust. And five times faster than a standard screw connection.
