Vacuum sweeper KM 130/300 RI D
Features and benefits

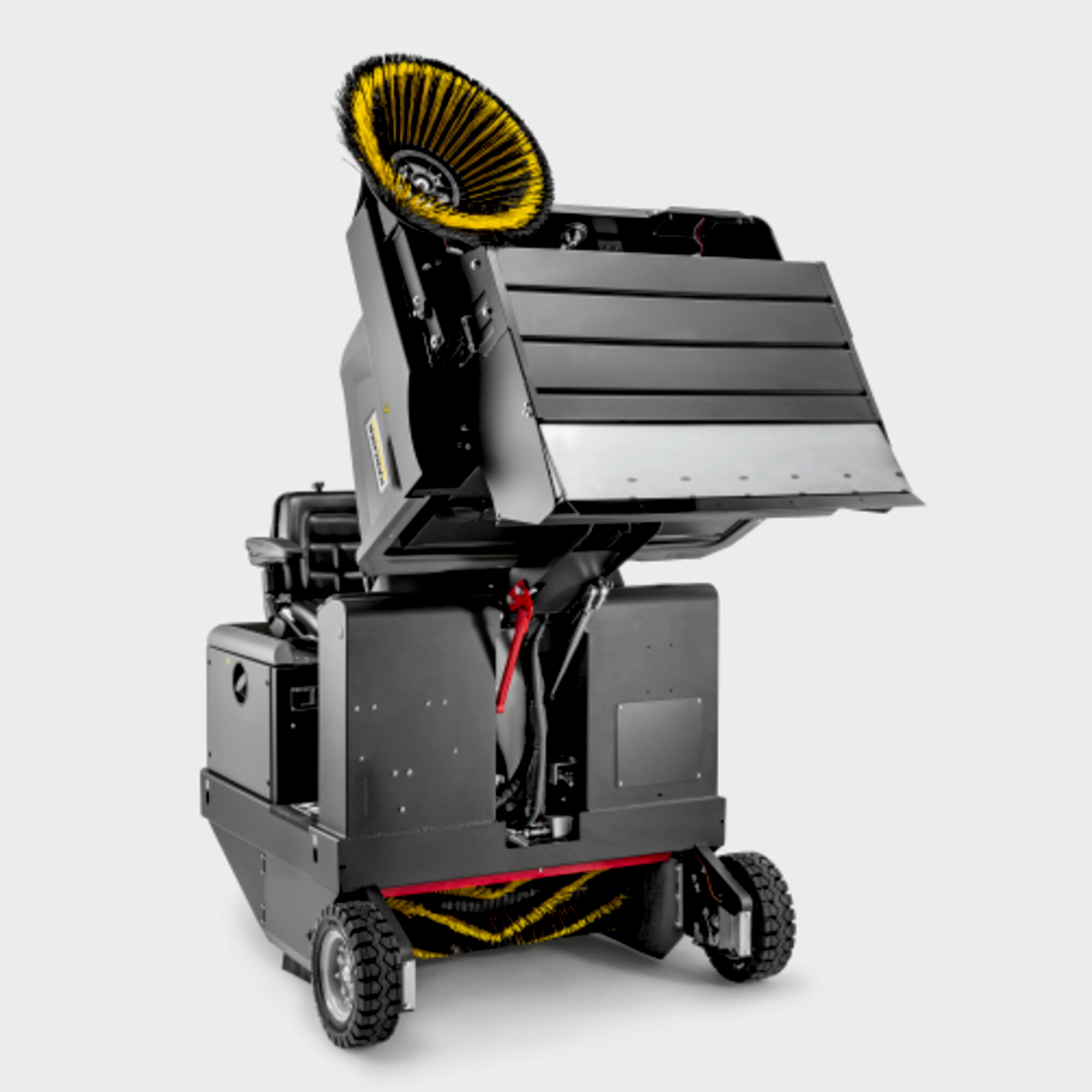

Hydraulic high container emptying
- Waste can be emptied safely, easily and with no contact.
Fully hydraulic traction drive and driven main sweeper roller and side brush
Very easy servicing
Dustpan principle
- Good intake of fine and coarse waste.
- Low dust dispersion.
Specifications
Technical data
| Drive type | Diesel |
| Motor manufacturer | Yanmar |
| Drive– performance (kW) | 15.8 |
| Max. Area Performance (m²/h) | 13000 |
| Working width (mm) | 1000 |
| Working width with 1 side brush (mm) | 1300 |
| Working width with two side brushes (mm) | 1550 |
| Waste Container (l) | 300 |
| Climbing ability (%) | 18 |
| Working speed (km/h) | 10 |
| Filter areas (m²) | 7.8 |
| Load capacity (kg) | 477 |
| Weight (with accessories) (kg) | 970 |
| Weight, ready to uset (kg) | 970 |
| Weight incl. packaging (kg) | 970 |
| Dimensions (L x W x H) (mm) | 2082 x 1345 x 1469 |
Scope of supply
- pocket filter
- Wheels, solid rubber
Equipment
- Automatic filter cleaning
- Main sweeper roller, floating
- Power steering
- Adjustable suction power
- Dustpan principle
- Forwards traction drive
- Backwards traction drive
- Suction
- Hydr. high dump
- Outdoor use
- Operating hour meter
- Sweep function (can be switched off)
- Automatic wear adjustment of the main sweeper roller
Videos
Application areas
- Building material processing plants
- Metal casting plants
- Metal processing plants
- Storage areas
- Construction sites
- Iron and steelworks
- Material processing plants
