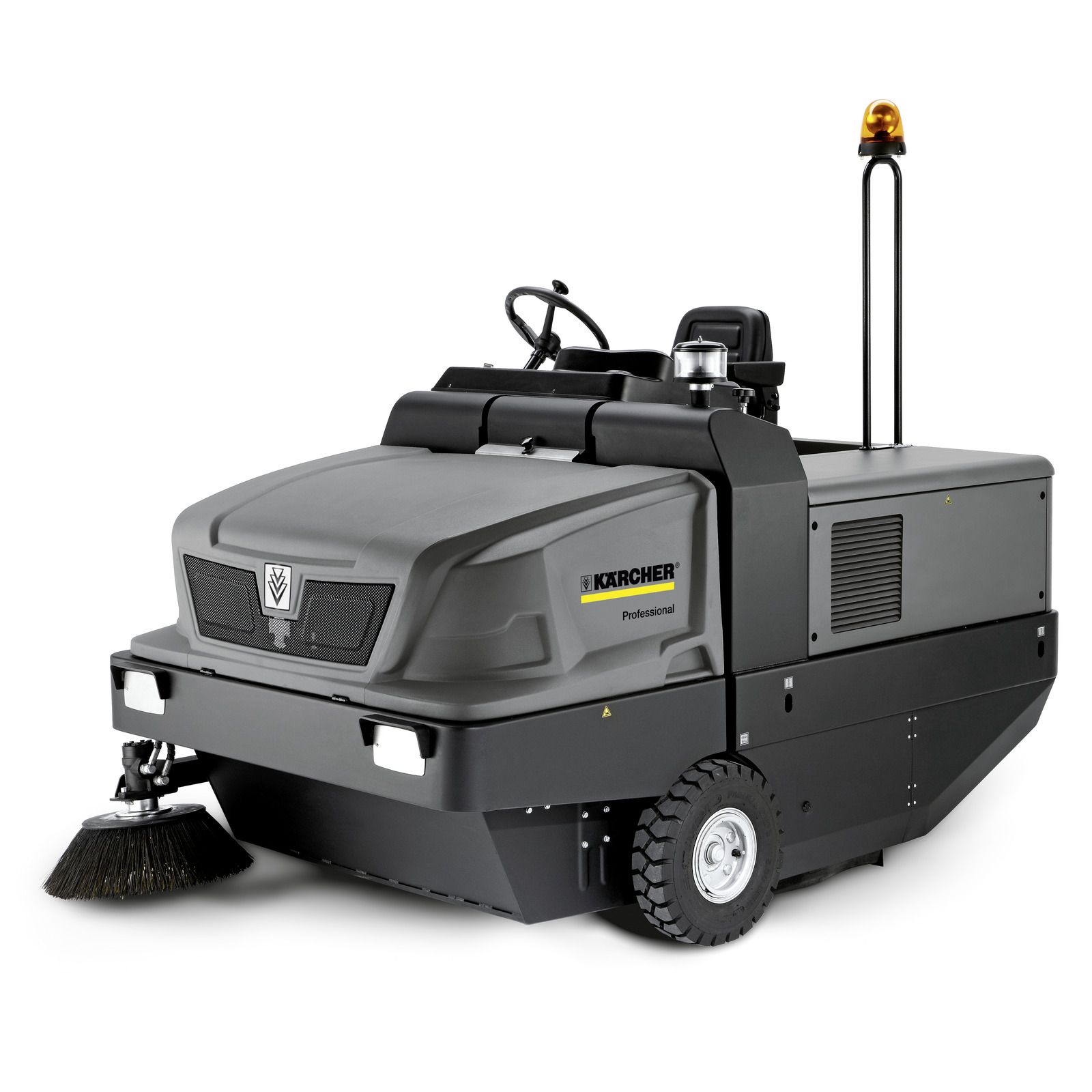

Kärcher ride-on sweeper with a brush attachment and an orange warning light on top.

Vacuum sweeper

KM 150/500 R D

This device requires instruction

Part number: 1.186-124.0

Diesel-powered, fully hydraulic industrial sweeper with three-wheel chassis and rear steering. For tackling tough jobs in the building material or metal-working industries, foundries and other dirt-intensive sectors. With Yanmar 21.6kW engine.

Make an enquiry

Technical data

Drive type	Diesel
Motor manufacturer	Yanmar
Drive– performance (kW)	18.6
Max. Area Performance (m²/h)	18000
Working width (mm)	1200
Working width with 1 side brush (mm)	1500
Working width with two side brushes (mm)	1800
Waste Container (l)	500
Climbing ability (%)	18
Working speed (km/h)	12
Filter areas (m²)	7
Weight (with accessories) (kg)	1440
Weight, ready to uset (kg)	1440
Dimensions (L × W × H) (mm)	2442 x 1570 x 1640

Scope of supply

Wheels, pneumatic

Equipment

Filter cleaning manual
Main sweeper roller adjustable
Power steering
Adjustable suction power
Dustpan principle
Forwards traction drive
Backwards traction drive
Suction
Hydr. high dump
Outdoor use
Operating hour meter
Sweep function (can be switched off)
Side brush swings out automatically

Product information and benefits

Kärcher’s fully hydraulic KM 150/500 R sweeper can be perfectly tailored to meet the needs of your business. Choose LPG or diesel power; indoor or outdoor protective cabs; and a wide range of accessories. Fantastic build quality, incredible productivity and fully hydraulic controls all come as standard. The choice of power options make it very versatile for use in different areas from public road to cleaning of noise sensitive areas indoors. Thanks to the dustpan principle, fine sweepings and coarse dirt are reliably vacuumed. The roller brush automatically adjusts to uneven surfaces and the innovative sweeping system reduces wear and tear to a minimum. The main roller brush can be easily changed without tools. The waste container automatically closes during transport. Two horizontally installed flat pleated filters ensure clean air under heavy dust conditions. Filter cleaning can be done with the push of a button using a highly effective dual scraper. The filter is easily accessible and can be cleaned or changed without the need for tools. The engine is also easy to access.

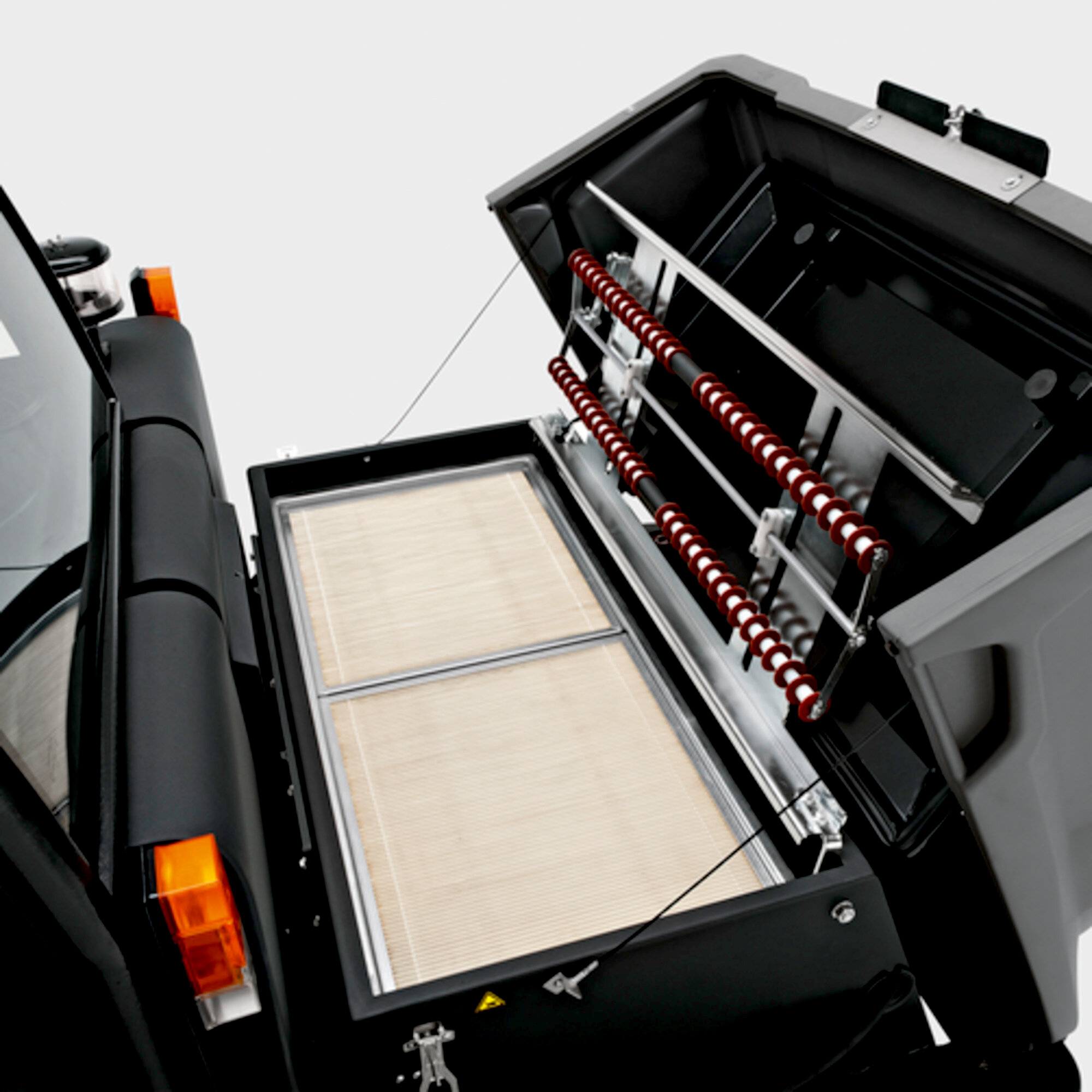

Efficient filter system

Flat pleated filter with 7 m² filter area. Effective cleaning with dual scraper. For dust-free sweeping.

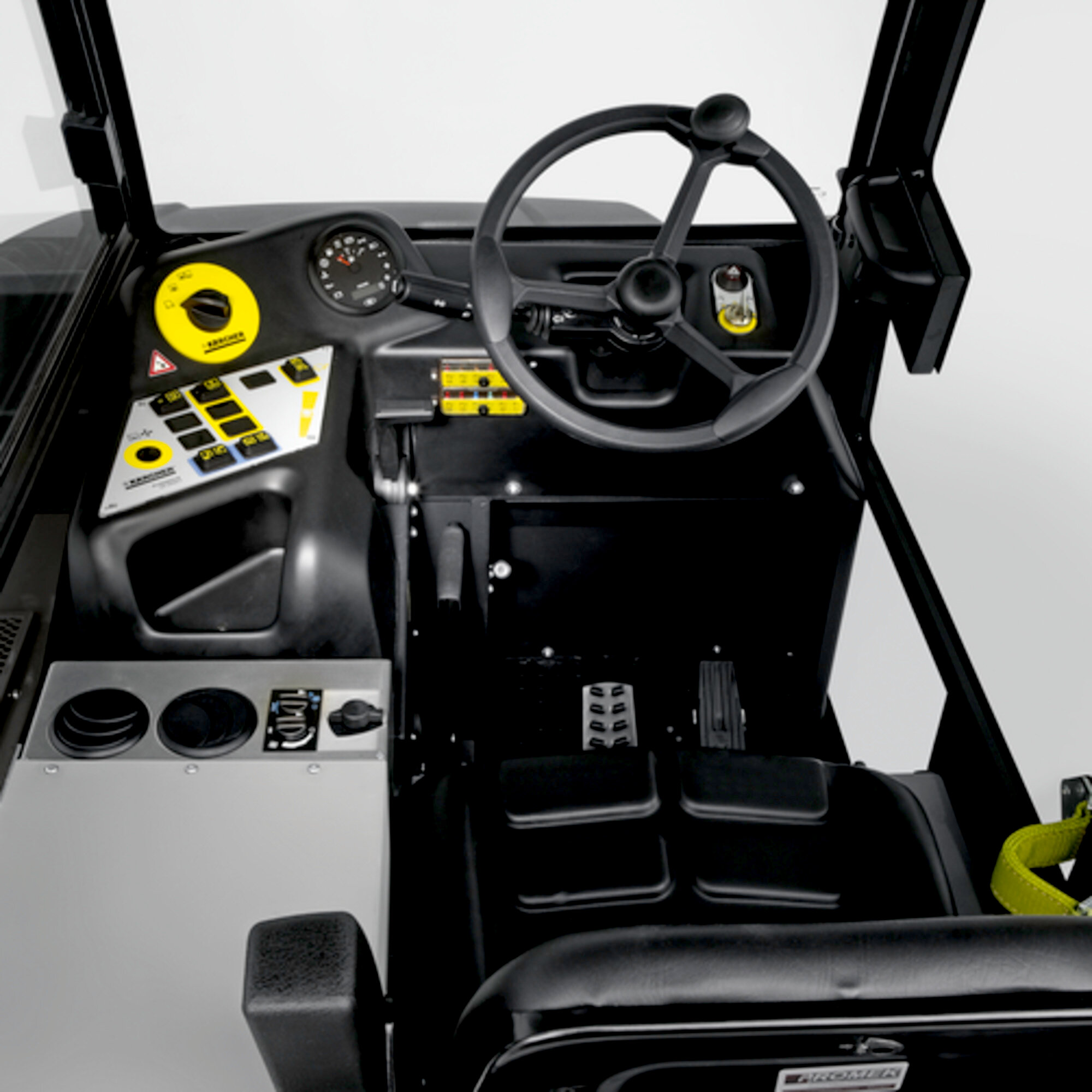

Comfortable workplace

All controls are clearly arranged and easy to access. All displays in full view. Optional: cabs with heating or air-conditioning.

Simple operation, maintenance and servicing

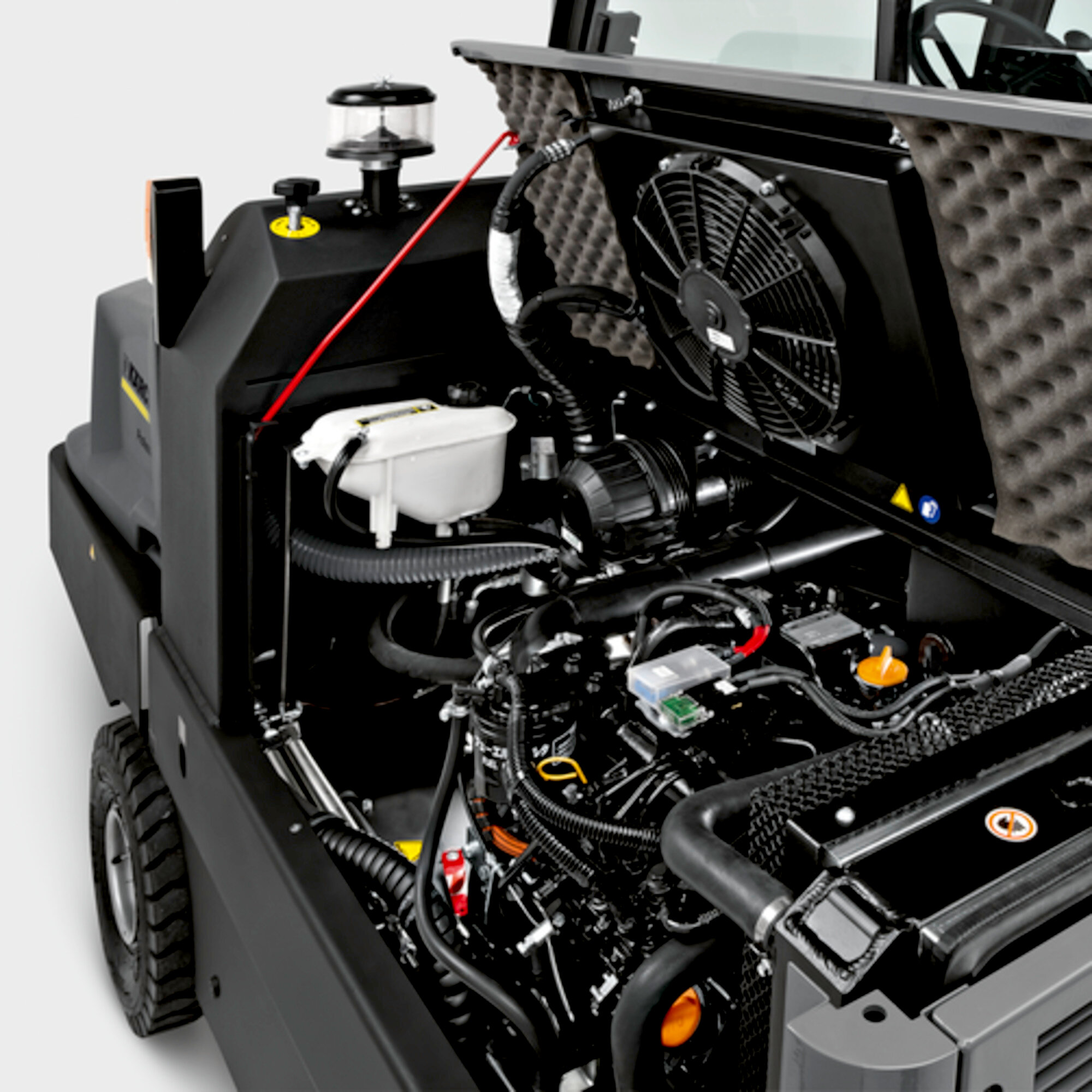

Simple technology with tried and tested components: fully hydraulic drive; electric instead of electronic. Easy motor access for quick and simple maintenance. Main roller brush and flat pleated filter can be replaced without tools.

Diesel operation

Designed for continuous use. Powerful motorisation

Optional four-wheel chassis

Improves traction on slippery and uneven surfaces. Increases ride comfort and driving safety. Ideal for use on sensitive surfaces due to low surface pressure.

Hydraulic high container emptying

Emptying the waste is safe and easy. High dump system up to 1.52 m.

Dustpan principle

Good intake of fine and coarse waste. Low dust dispersion.

Extensive range of accessories and attachment kits

Easy adaptation to individual cleaning needs. Impressive equipment (e.g. comfort cab, air-conditioner, heating). Second and third side brushes available on request.

KM 150/500 R D

Technical data

Product information and benefits

Efficient filter system

Comfortable workplace

Simple operation, maintenance and servicing

Diesel operation

Optional four-wheel chassis

Hydraulic high container emptying

Dustpan principle

Extensive range of accessories and attachment kits

Fully hydraulic traction drive and driven main sweeper roller and side brush
