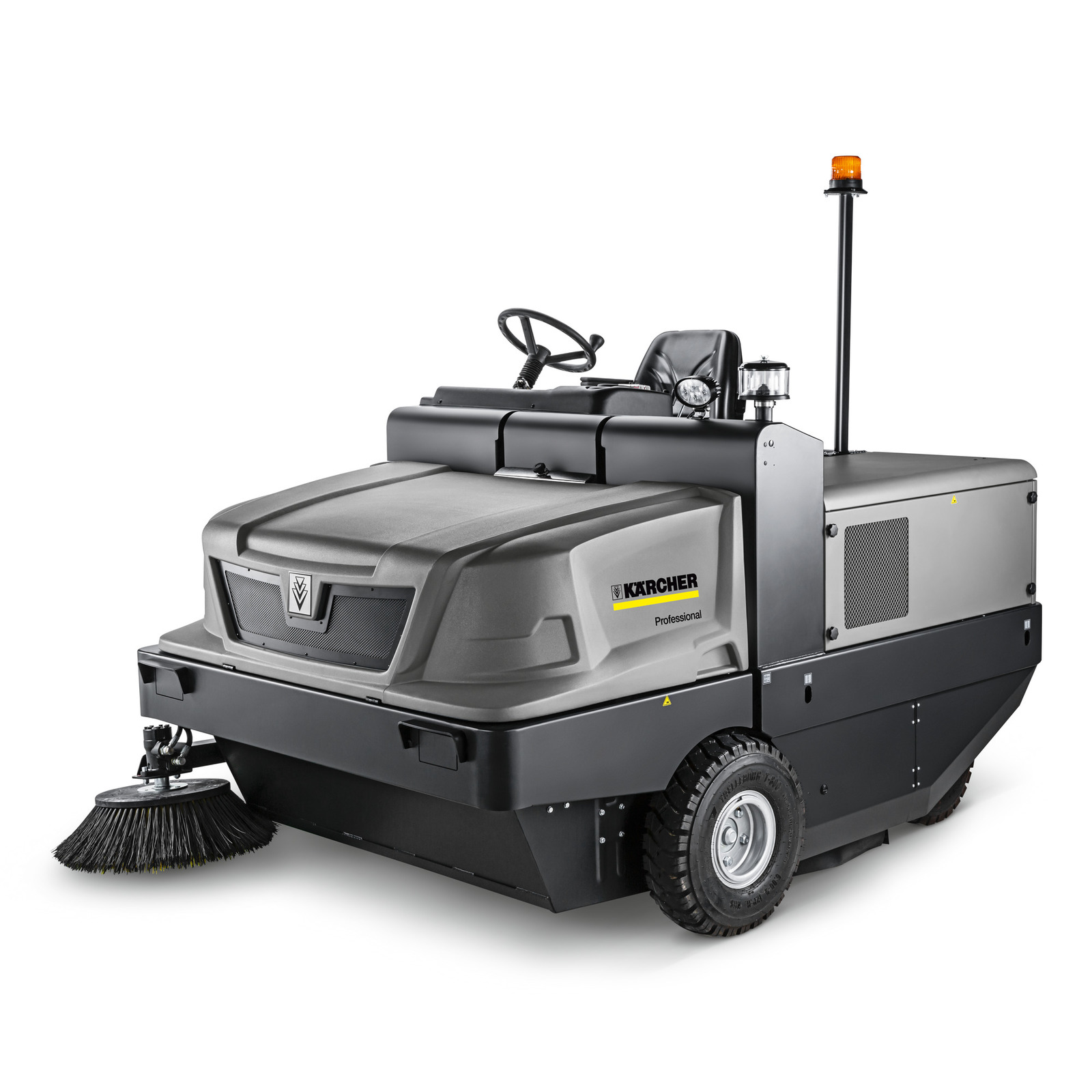

Kärcher ride-on sweeper with a brush on the front, steering wheel, and an orange warning light on top.

Vacuum sweeper

KM 170/600 R D Classic

This device requires instruction

Part number: 1.186-145.0

Technical data

Drive type	Diesel
Drive– performance (kW)	18.5
Max. Area Performance (m²/h)	23800
Working width (mm)	1350
Working width with 1 side brush (mm)	1700
Working width with two side brushes (mm)	2000
Waste Container (l)	600
Climbing ability (%)	18
Working speed (km/h)	14
Filter areas (m²)	13
Weight (with accessories) (kg)	1698
Weight, ready to uset (kg)	1695
Weight incl. packaging (kg)	1698
Dimensions (L × W × H) (mm)	2742 x 1904 x 2213

Scope of supply

pocket filter
Wheels, pneumatic

Equipment

Filter cleaning manual
Automatic filter cleaning
Main sweeper roller adjustable
Main sweeper roller, floating
Power steering
Adjustable suction power
Dustpan principle
Forwards traction drive
Backwards traction drive
Suction
Hydr. high dump
Outdoor use
Operating hour meter
Sweep function (can be switched off)
Side brush swings out automatically

Product information and benefits

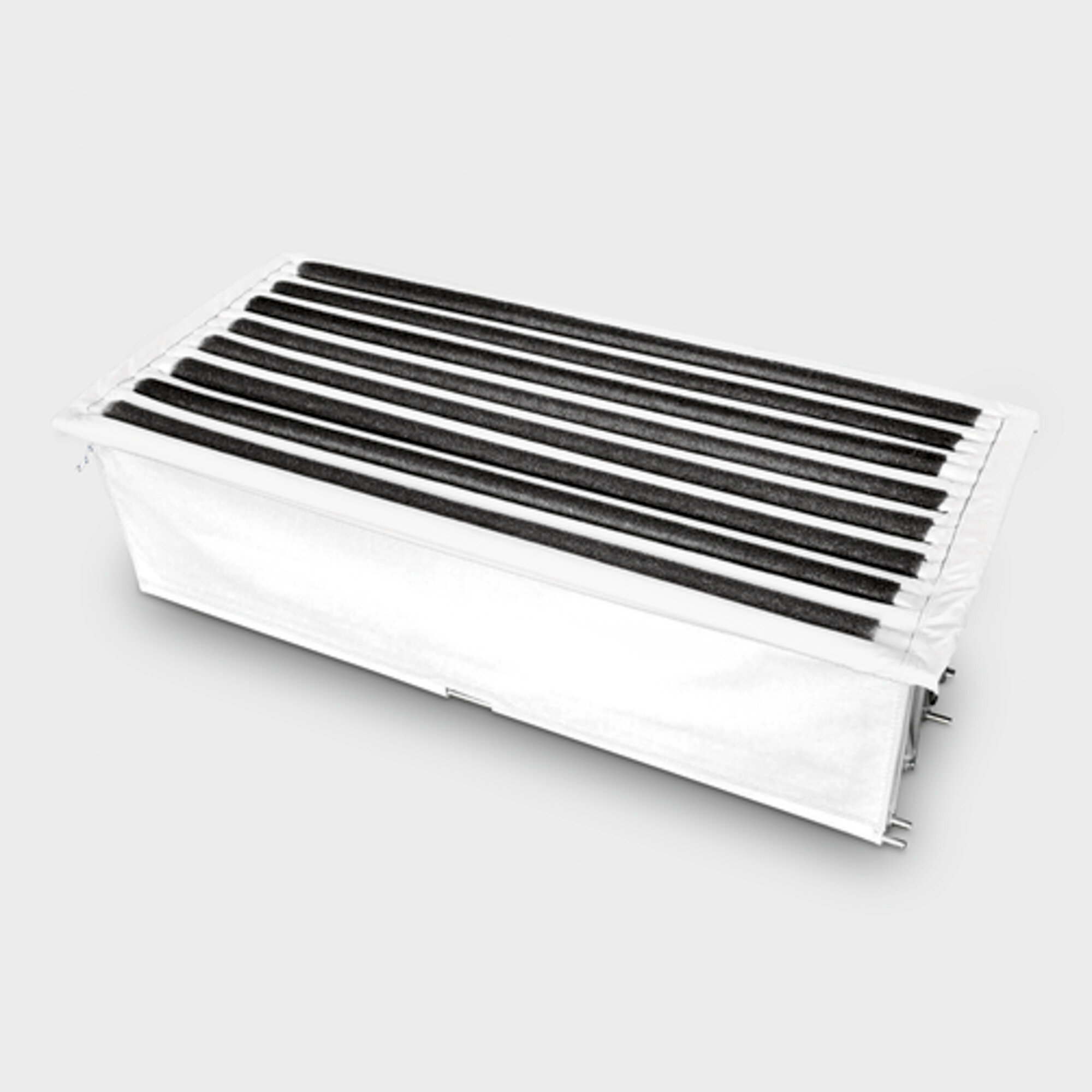

Efficient pocket filter system

Effectively minimises dust production when sweeping. Also available with optional flat pleated filter or round filter system. Extremely effective cleaning for a long service life.

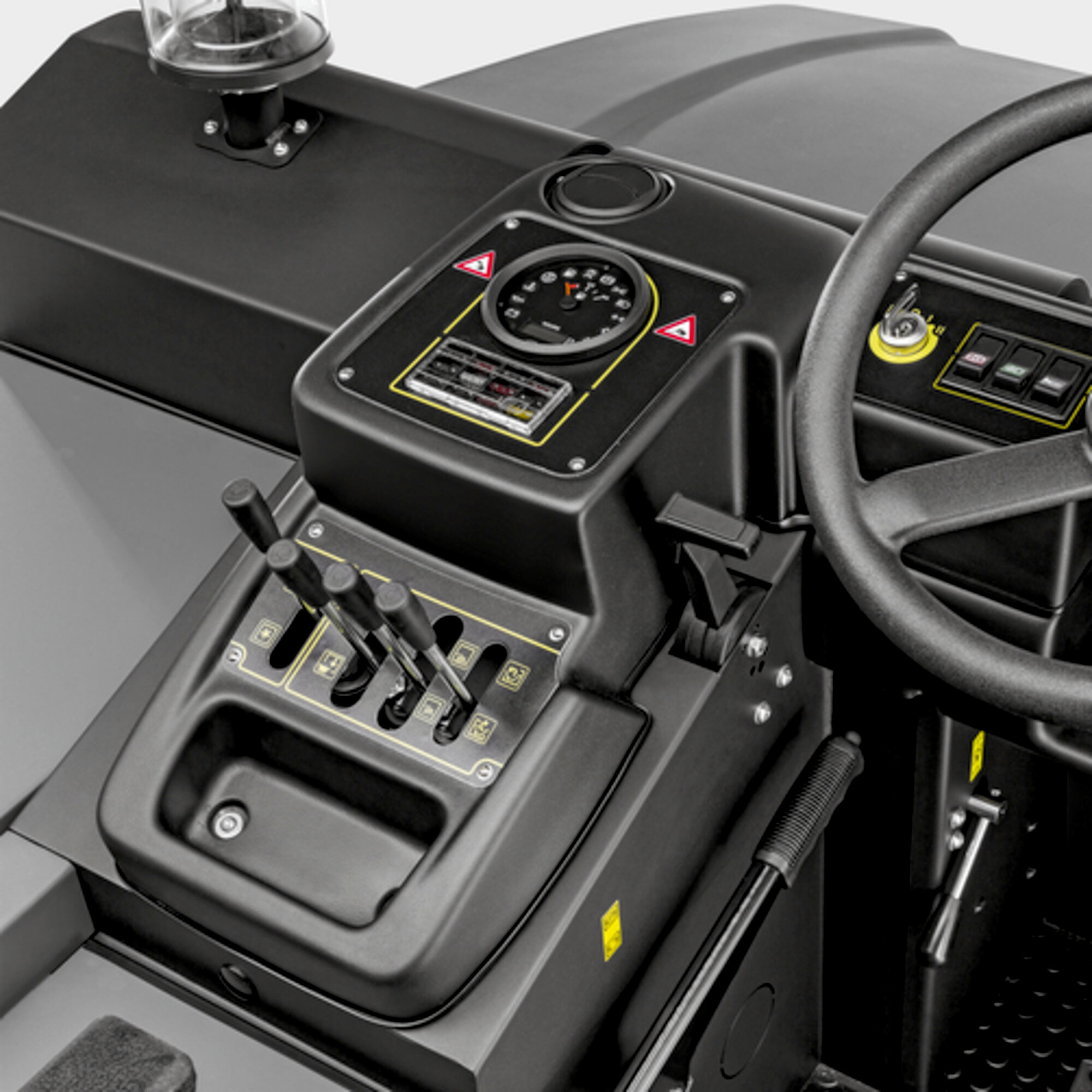

Simple operation, maintenance and servicing

Intuitive operation using levers. Main sweeper roller and filter can be replaced easily without tools. Easy access to all key components.

Automatic filter cleaning

Regular cleaning extends the service life of the filter. Reduces dust production, even in extreme external conditions. Functions reliably with all available filter systems.

Extensive range of accessories and attachment kits

Easy adaptation to individual cleaning needs. Impressive equipment (e.g. comfort cab, air conditioning, heating).

Robust design of the machine for safe work

Permits applications in extreme external conditions. Leads to longer service life of components and machine. Standard flashing beacon increases safety for user and environment.

Dustpan principle

Guarantees good cleaning results also with fine waste. Effortless pick-up of coarse waste. Low dust production.
