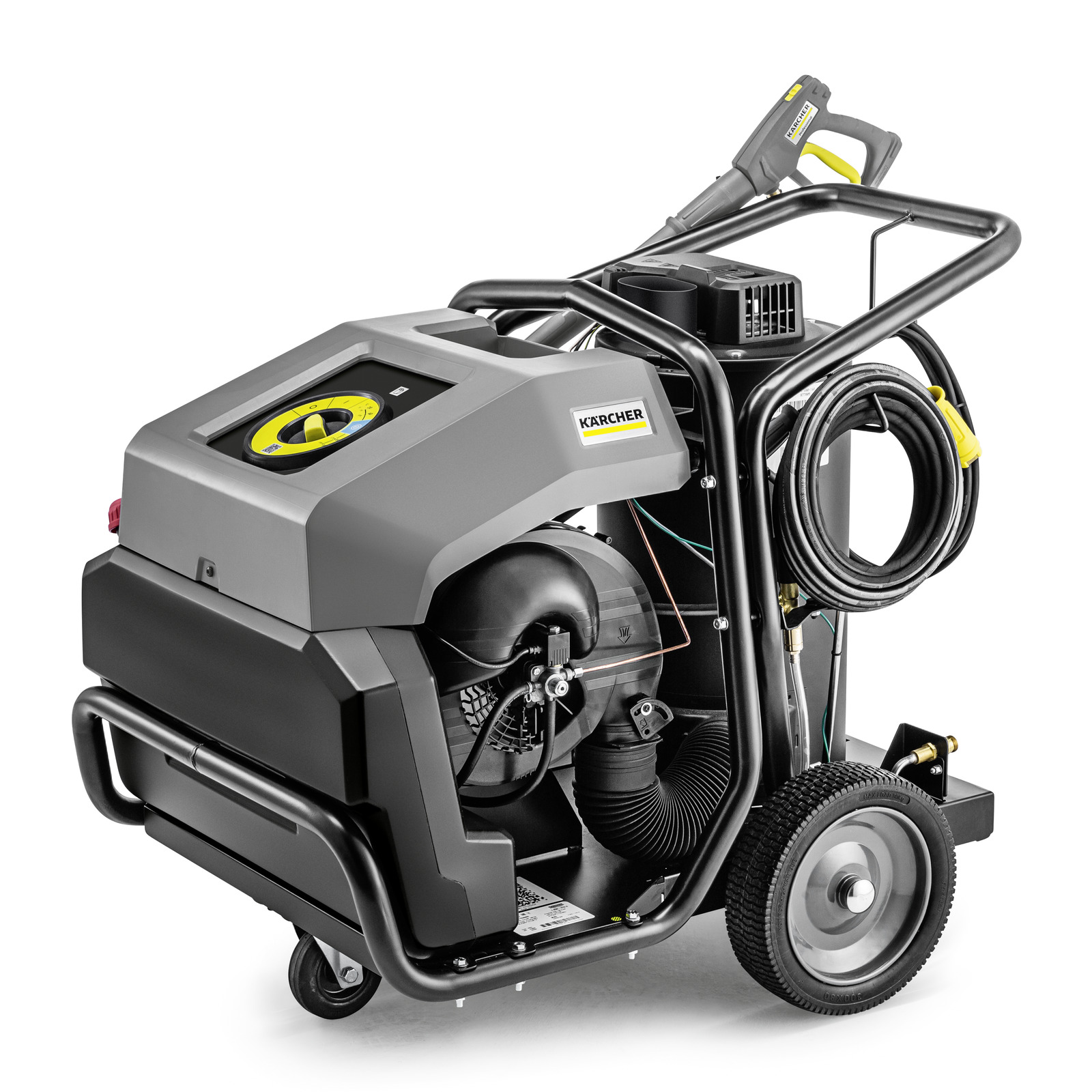

    Kärcher high-pressure cleaner with wheels, hose, and handle, featuring a grey and black design.

    Awards and exclusive range

    Record Holder Guinness World Records
    World's No. 1 Pressure Washer Brand

    High pressure cleaner

    HDS 9/20-4 Classic

    This device requires instruction

    Part number: 1.030-910.0

    Reliable, easy to operate hot water high-pressure cleaner, with excellent price/performance ratio and equipped with a high-quality crankshaft pump as well as a robust tubular steel frame.

    Make an enquiry
    Number of current phases (Ph)
    3
    Voltage (V)
    400
    Frequency (Hz)
    50
    Flow Rate (l/h)
    300 - 900
    Operating pressure (bar / MPa)
    30 - 200 / 3 - 20
    Temperature (supply 12°C) (°C)
    max. 80
    Power rating (kW)
    7
    Heating oil consumption ( 60°C) / eco!efficiency mode (kg/h)
    5.8
    Heating oil consumption, eco!efficiency (kg/h)
    4.7
    Power cable (m)
    5
    Fuel tank (l)
    30
    Weight (with accessories) (kg)
    124
    Weight incl. packaging (kg)
    134
    Dimensions (L × W × H) (mm)
    1075 x 722 x 892

    Scope of supply

    • Trigger gun
    • High-pressure hose length: 10 m
    • High-pressure hose specification
    • Spray lance: 1050 mm
    • Power nozzle

    Equipment

    • ANTI!Twist
    • Pressure switch control
    • Pole reversing plug (three-phase)
    Made in Germany
    Recommended maximum duration of use in hours/day.
    Hose with freely rotatable connectors.
    Thanks to its proven and particularly powerful and reliable components, the HDS 9/20-4 M Classic hot water high-pressure cleaner from Kärcher shines with the simplest operation, ease of maintenance and best cleaning results. The robust crankshaft pump, protected from contamination by a water filter, and the low-speed, 4-pole electric motor ensure high performance and long-lasting operation. Thanks to the open design, all essential components are very easy to access, while maximum protection is ensured by a sturdy tubular steel frame. This makes the HDS 9/20-4 M Classic suitable for the most challenging applications under harsh conditions, such as on construction sites or in agriculture. Integrated crane hooks and large, puncture-resistant wheels facilitate transport to and from the site. The machine from the middle class is also equipped with the proven Classic high-pressure gun, a 30 litre fuel tank for very long cleaning applications and practical options for accessory storage as standard.
    Robust and long-lasting
    A robust tubular steel frame reliably protects the machine against damage. Good accessibility for easy service and maintenance.
    Reliability

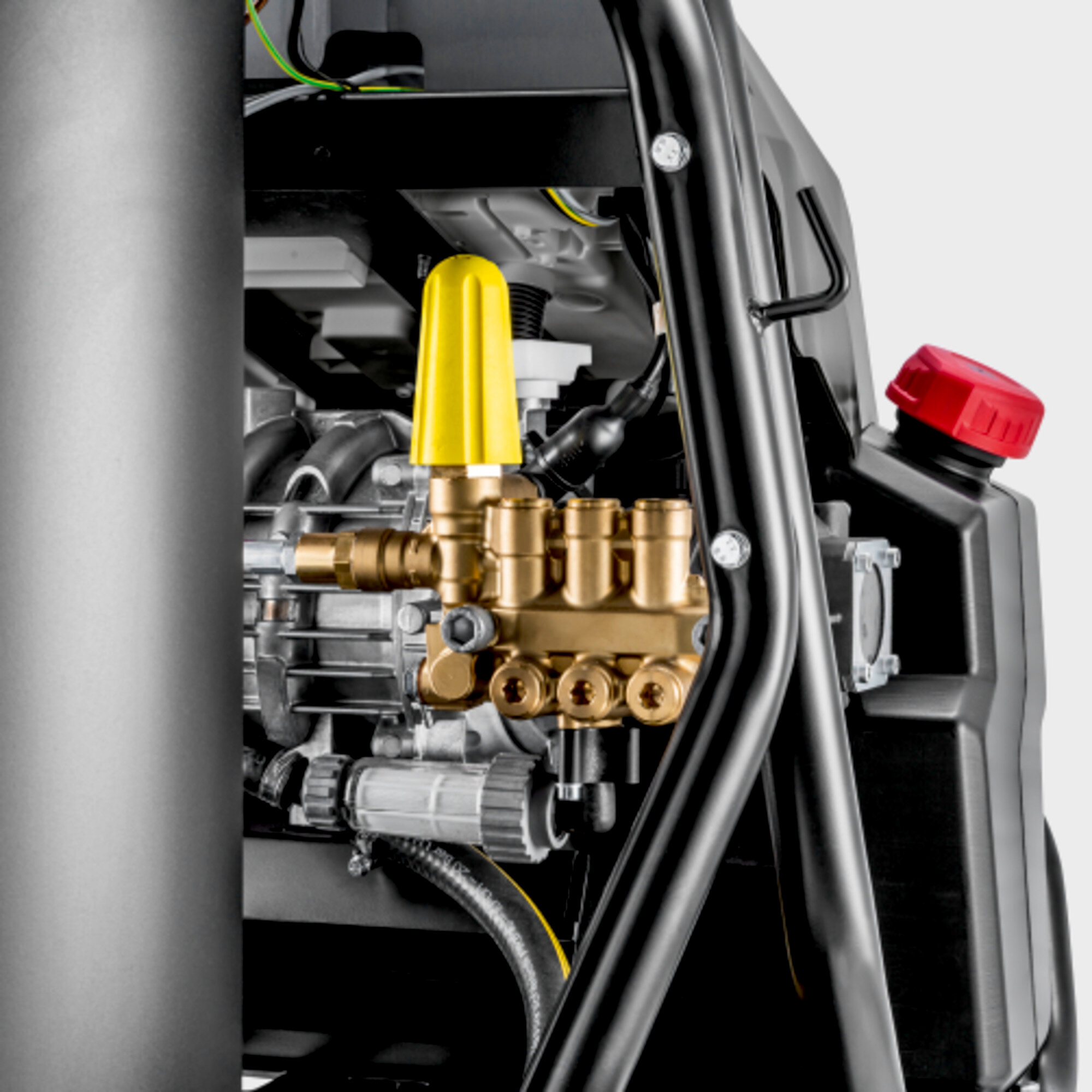

    Robust crankshaft pump with proven Kärcher quality. Proven safety technology such as thermo and safety valve and water filter.
    Efficient burner engineering
    High degree of efficiency with low emissions and long life. Long work applications thanks to 30-l fuel tank. In eco!efficiency mode, the machine operates in the most economical temperature range (60 °C) – with full water flow.
    Outstanding mobility
    Puncture-proof, large wheels for safe manoeuvring on uneven surfaces. With crane hook for simple transport.

    Manufacturer: Alfred Kärcher SE & Co. KG
    Alfred-Kärcher-Strasse 28-40, 71364 Winnenden, Germany
    Tel. +49 7195 / 14-0 I Fax +49 7195 / 14-2212
    E-mail: info@karcher.com

    Manual

    Read the manual online easily

    Read online
    • Manual

      Manual

      Download PDF
    • Manual

      Manual

      Download PDF
    • Manual

      Manual

      Download PDF

    Application areas

    • Vehicle cleaning
    • Device and machine cleaning
    • Workshop cleaning
    • Cleaning outdoor spaces
    • Service station cleaning
    • Façade cleaning
    • Swimming pool cleaning
    • Cleaning of sports facilities
    • Cleaning during production processes
    • Cleaning of production facilities
