Industrial vacuum

IVR 100/24-2 Sc H ACD

Name: IVR 100/24-2 Sc H ACD
Brand: Kärcher
SKU: 9.990-646.0
Rating: 0.0 (0 reviews)

Part number: 9.990-646.0

ACD – Applied for Combustible Dust

Make an enquiry

Technical data

Number of current phases (Ph)	1
Voltage (V)	220 - 240
Frequency (Hz)	50 - 60
Air flow (l/s / m³/h)	148 / 532
Vacuum (mbar / kPa)	230 / 23
Container capacity (l)	100
Container material	Steel
Rated input power (kW)	2.4
Vacuuming type	Electric
Sound pressure level (dB(A))	68
Cable length (m)	10
Main filter dust class	M
Filter area for main filter (m²)	1.75
Secondary filter dust class	H
Filter area for secondary filter (m²)	3
Colour	anthracite
Weight without accessories (kg)	113
Weight incl. packaging (kg)	113
Dimensions (L × W × H) (mm)	855 x 760 x 1869

Equipment

Main filter: Pocket filter
Secondary filter: Cartridge filter
Accessories included with machine: no

Recommended maximum duration of use in hours/day.

Product information and benefits

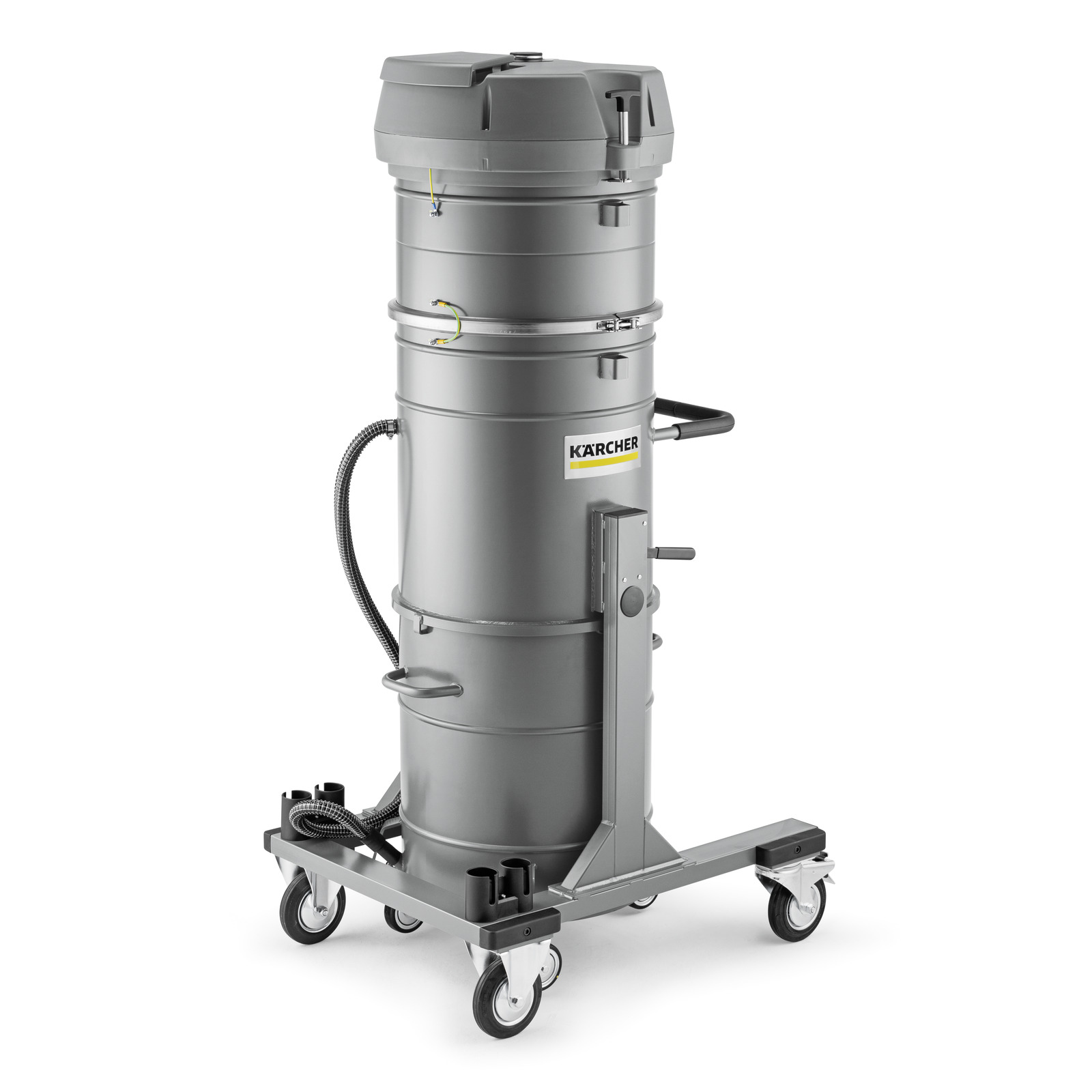

Industrial vacuum cleaner IVR 100/24-2 Sc H ACD designed for vacuuming medium quantities of shavings and combustible dusts in non-explosive areas. With a rated input power of 2.4 kW, an AC-powered two-turbine solution ensures consistently strong suction power. This is permanently maintained thanks to a washable dust class M pocket filter, a dust class H cartridge filter, and effective manual filter cleaning. Low-dust emptying of the 100-litre mobile collection container is carried out via an ergonomic set-down chassis without removing the drive head, while a safety filter bag enables safe disposal of the vacuumed material. The mobile chassis, sound-dampened operation at 68 dB(A), and a maintenance-accessible design complete the equipment of the AC-powered vacuum cleaner.

ACD – Applied for Combustible Dust

For the safe and economical vacuuming of combustible dusts. Conforms to the IEC 60335-2-69 standard.

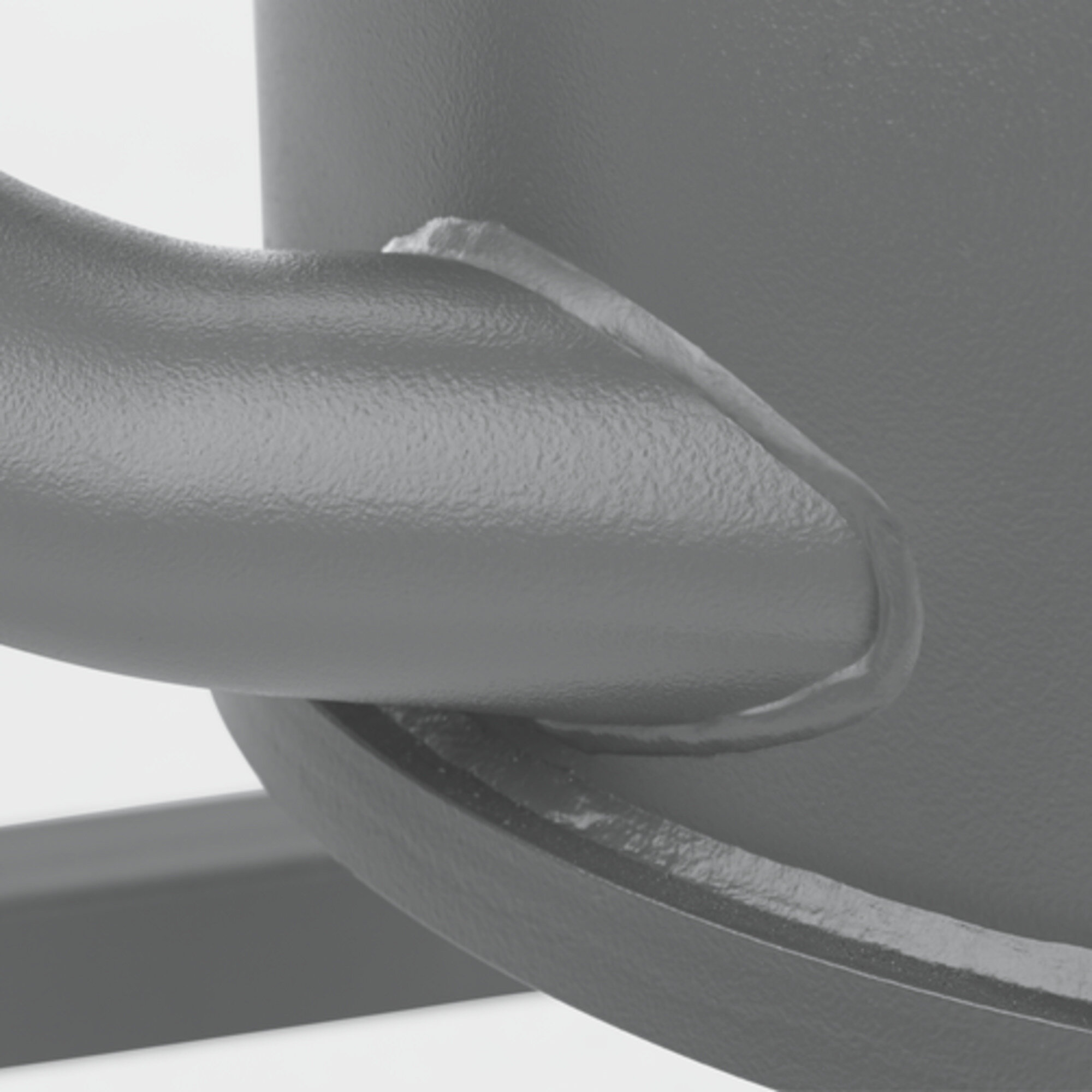

Designed for high mechanical stress and versatile in use.

With practical, movable suction hose port/pipe bend. With numerous options for accessory storage. The device and chassis are designed for industrial use due to their wall thickness.

Fitted with two very quiet fan motors

For powerful suction power and optimum cleaning performance. Fans can be switched on separately for individual suction power as required. The drive head with a sound pressure level of 68 dB(A) ensures an even discharge of the cooling air.

Convenient, manual filter cleaning

Effortless operation by means of an ergonomically placed lever if required. Extends the life of the filter and thus reduces the maintenance effort. Identical cleaning results, regardless of the amount of force used.

Equipped with large pocket filter

For safely picking up solids and dusts up to dust class H. Also suitable for large quantities of dust. Special geometry of the filter prevents suctioned solids getting caught.
