Industrial vacuum

IVR-L 100/30 Sc

Part number: 9.986-064.0

User-friendly set-down mechanism
Overfill protection and filling level indicator

Technical data

Number of current phases (Ph)	3
Voltage (V)	400
Frequency (Hz)	50 - 60
Air flow (l/s / m³/h)	87.5 / 315
Vacuum (mbar / kPa)	260 / 26
Container capacity (l)	100
Container material	Metal
Rated input power (kW)	3
Vacuuming type	Electric
Main filter dust class	L
Filter area for main filter (m²)	0.45
Sound pressure level (dB(A))	62
Weight without accessories (kg)	132
Weight (with accessories) (kg)	132
Weight incl. packaging (kg)	132.8
Dimensions (L × W × H) (mm)	850 x 760 x 1800

Equipment

Accessories included with machine: no

Recommended maximum duration of use in hours/day.

picto IE2 high efficiency motor oth 1 EN CI15 110474 CMYK

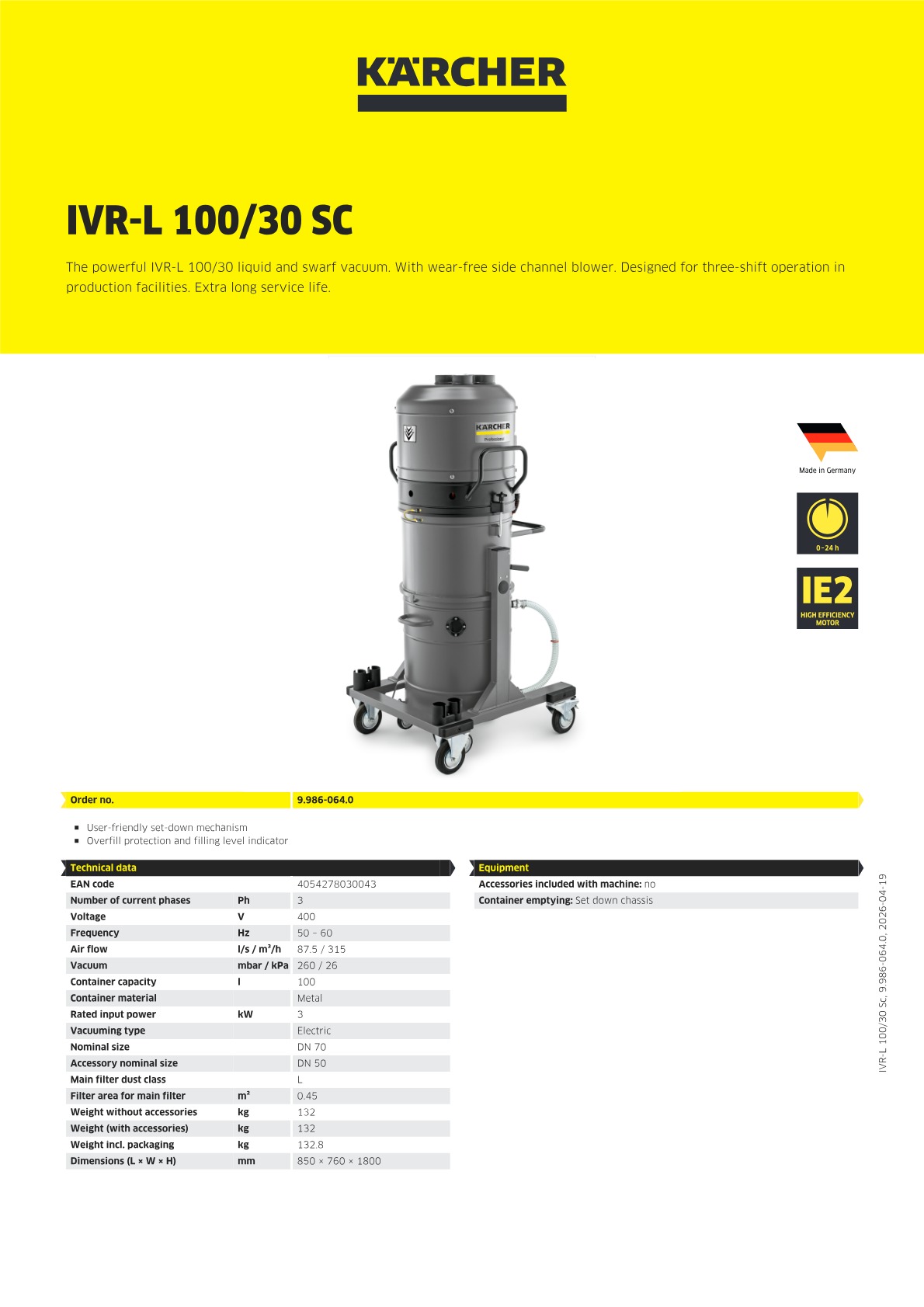

Product information and benefits

The IVR-L 100/30: a durable and powerful industrial vacuum cleaner that is particularly suitable for vacuuming liquids and/or swarf in the metalworking industry. The robust design ensures the vacuum cleaner has a long service life despite the toughest industrial applications. The 3-shift side channel blower of the IVR-L 100/30 is designed for shift operation. This also makes the machine suitable for stationary applications in production. When vacuuming liquids, the current filling level can be seen at all times through the drain hose. The collecting container is linked to the vacuum cleaner via a set-down mechanism that can be operated from a standing position.

Wear-resistant side channel compressor

Side channel compressor offers high suction power and durability. These machines are ideal for multi-shift use.

Visual filling level indicator

Always stay up to date: the filling level is visible at all times when vacuuming. Emptying can be carried out as required via the filling level hose.
