    Carpet & upholstery cleaners
    Carpet & Upholstery Cleaners
    Puzzi 9/1 Bp Adv *SHELL
    Kärcher carpet cleaner with transparent nozzle, grey body, yellow accents, and detachable accessory on white background.

    Puzzi 9/1 Bp Adv *SHELL

    Part number: 1.101-702.0

    SHELL machine so battery and charger not included: For maximum manoeuvrability for fibre-deep cleaning: Our robust Puzzi 9/1 Bp Adv cordless spray extraction cleaner with upholstery nozzle and floor nozzle.

    Battery platform
    36 V battery platform
    Area performance (m²/h)
    12 - 18
    Tank of fresh/dirty water (l)
    9 / 7
    Air flow (l/s)
    57
    Vacuum (kPa)
    15
    Spray rate (l/min)
    0.5
    Spray pressure (MPa)
    0.16 - 0.22
    Turbine capacity (W)
    550
    Power rating, pump (W)
    4
    Rated input power (W)
    575
    Sound pressure level (dB(A))
    70
    Standard accessory ID ( )
    32
    Number of batteries required (Piece(s))
    1
    Run time per battery charge (min)
    35 27
    Battery charging time with quick charger 80% / 100% (min)
    58 81
    Charging current (A)
    6
    Power supply for battery charger (V / Hz)
    100 - 240 / 50 - 60
    Colour
    anthracite
    Weight without accessories (kg)
    7.6
    Weight incl. packaging (kg)
    13
    Dimensions (L × W × H) (mm)
    540 x 332 x 460

    Scope of supply

    • Versions
    • Spray suction hose: 2.5 m
    • Spray extraction tube: 1 / 700 Piece(s) / mm
    • Motor protection filters
    • Fresh water filter
    • Upholstery nozzle
    • Compartment for detergent tablets
    • Removable 2-in-1 container
    • Detergent: 2 Tablets
    • Spray/suction gun

    Equipment

    • Hose transport lock
    • Integrated accessory storage
    Made in Europe
    The only one of its kind in the world, offering an extremely robust design and cordless flexibility: Our Puzzi 9/1 Bp Adv Pack cordless spray extraction cleaner. As the only professional-standard battery powered spray extraction machine on the market, this Puzzi never fails to impress with its exceptional performance and maximum freedom of movement when deep-cleaning upholstery, carpets and other textile areas in any industry, be it hotels or hospitality, vehicle valeting or building cleaning operations. Despite its power, this Puzzi is extremely quiet, making it ideal for use in public areas: plus its ergonomically designed handle means it can easily be carried around one-handed. For best cleaning results, the cleaning solution is pressurised and sprayed deep into the textile fibres, then sucked back up together with the loosened dirt. When ordering this machine version, please bear in mind that the powerful 36 V Kärcher Battery Power+ battery and the corresponding fast charger must be ordered separately.

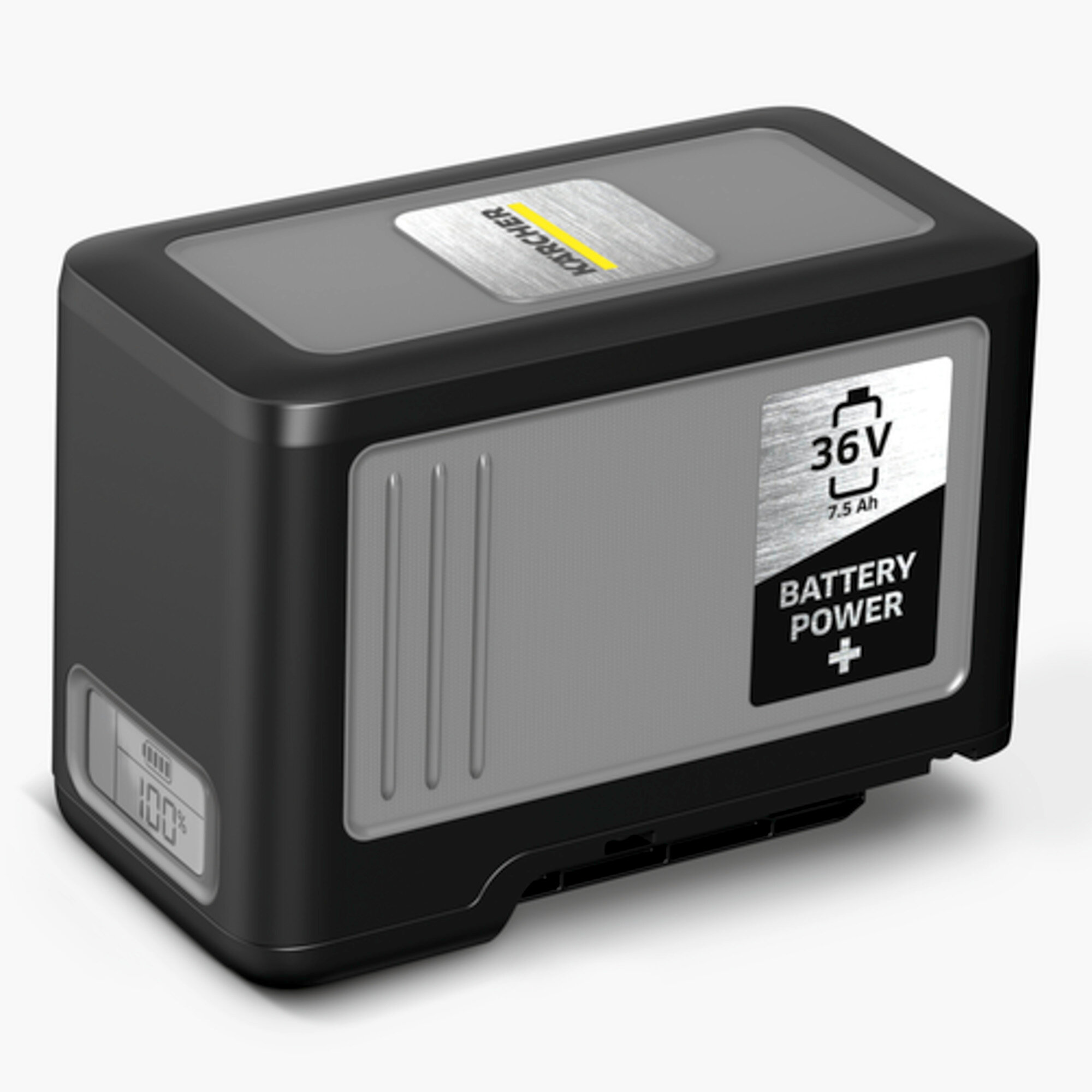

    Powerful Kärcher Battery Power+ 36V battery
    Cordless freedom of movement. Real Time Technology with LCD battery display: remaining running time, remaining charging time and battery capacity. Compatible with all machines from the 36 V Kärcher Battery Power+ battery platform.
    Durable, robust machine design

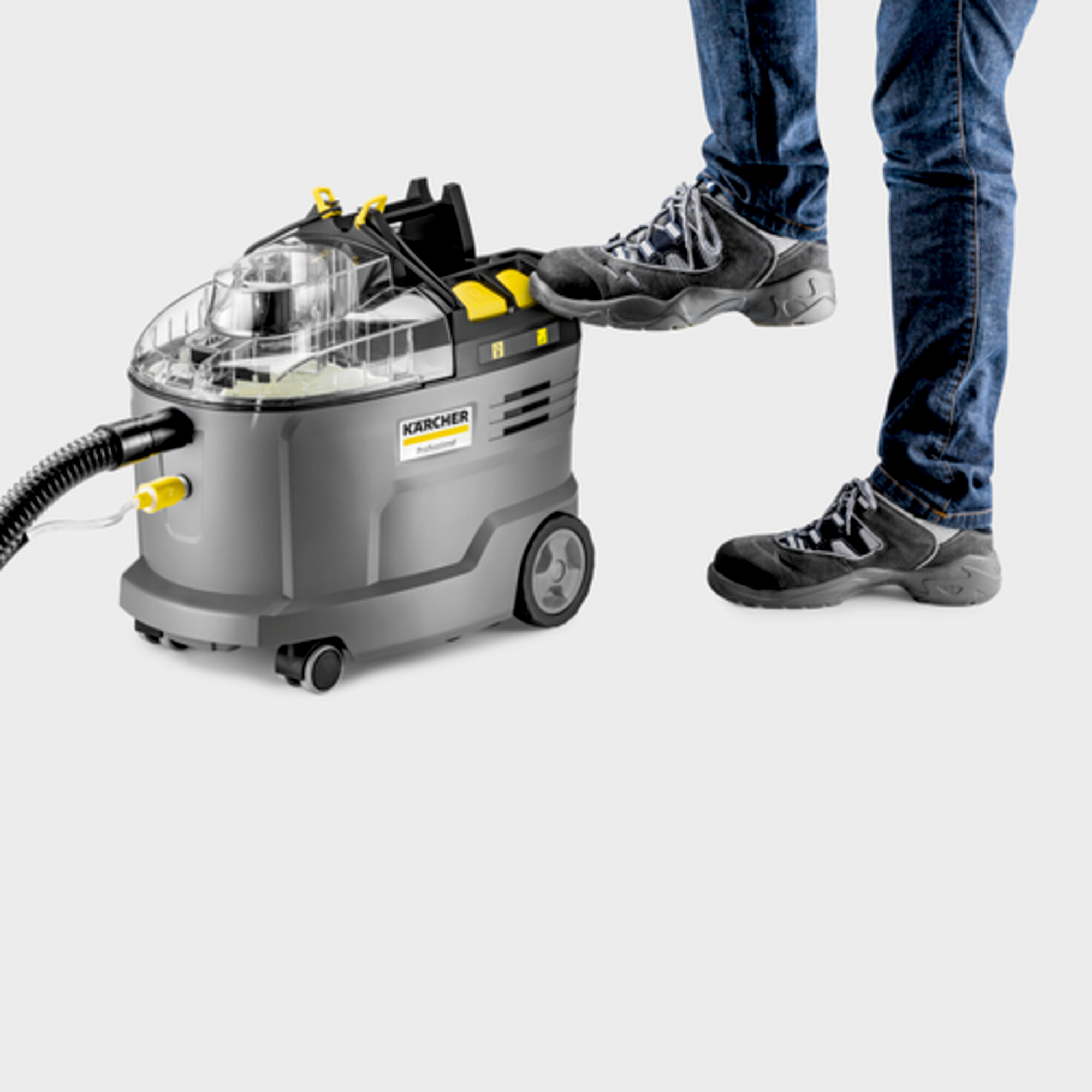

    Long service life ensures high efficiency. Robust and hard-wearing diaphragm pump. Two large buttons operated by hand or foot for convenience.
    Comprehensive set of carpet cleaning accessories
    Flexible suction lip for optimum suction angle and ultimate drying results. 240 mm wide floor nozzle with integrated spray/suction tube. Ergonomic two-handed grip for extra user comfort.
    Removable, smart 2-in-1 container
    Quick and simple to fill the fresh water tank. Convenient and simple to remove dirty water. Quick-start illustration Puzzi 9/1 Bp for enhanced user safety.
    Ergonomic carrying handle
    Convenient, one-handed transport. Conveniently well-balanced machine. Suction tube holder integrated in carrying handle for secure and convenient transport.
    Integrated accessory storage
    All of the accessories can be stowed conveniently on the machine and are therefore always close at hand. Practical, built-in storage compartment for cleaning agent tabs. Secure storage, even during transport.
    Handy upholstery nozzle
    Easy yet thorough cleaning of upholstery and upholstered furniture. Perfect for vehicle interior cleaning. Thanks to the small size, it is suitable for use in confined spaces.
    Low weight
    Effortless, also one-handed transport over ledges and steps. Designed for long periods of fatigue-free use. Lightweight entry-level machine.
    Low operating noise
    Even suitable for cleaning in noise-sensitive areas and at night. Increases the user comfort. Very quiet machine for the entry-level segment.
    2-in-1 comfort system with integrated spray and suction hose
    The cleaning solution is sprayed deep into the fibres under pressure. Thorough extraction of cleaning solution and ingrained dirt. Quick drying.

    Manufacturer: Alfred Kärcher SE & Co. KG
    Alfred-Kärcher-Strasse 28-40, 71364 Winnenden, Germany
    Tel. +49 7195 / 14-0 I Fax +49 7195 / 14-2212
    E-mail: info@karcher.com

    • placeholder

      Product information

      Download PDF
    • Manual

      Manual

      Download PDF

    Application areas

    • For intensive fibre-deep cleaning of upholstery and upholstered furniture
    • For intermediate cleaning and targeted stain removal on carpets
    • For cleaning all textile surfaces – including car interiors
    • For intensive fibre-deep cleaning of upholstered car seats
    • For targeted fibre-deep cleaning of smaller carpeted areas
