Industrial vacuum

IVR-L 100/24-2 Tc Dp

This device requires instruction

Part number: 9.989-400.0

IVR-L 100/24-2 Tc Dp mobile liquid and swarf vacuum. AC-powered, suitable for oils, coolant emulsions or fine, light metal shavings in medium quantities, for example.

Make an enquiry

Technical data

Power supply (Ph / V / Hz)	1 / 220 - 240 / 50 - 60
Air flow (l/s / m³/h)	148 / 532
Vacuum (mbar / kPa)	230 / 23
Container capacity (l)	100
Rated input power (kW)	2.4
Vacuuming type	Electric
Main filter dust class	L
Filter area for main filter (m²)	0.45
Weight without accessories (kg)	57
Weight (with accessories) (kg)	57
Weight incl. packaging (kg)	57
Dimensions (L × W × H) (mm)	840 x 660 x 1320

Equipment

Barrel pump function

Recommended maximum duration of use in hours/day.

Product information and benefits

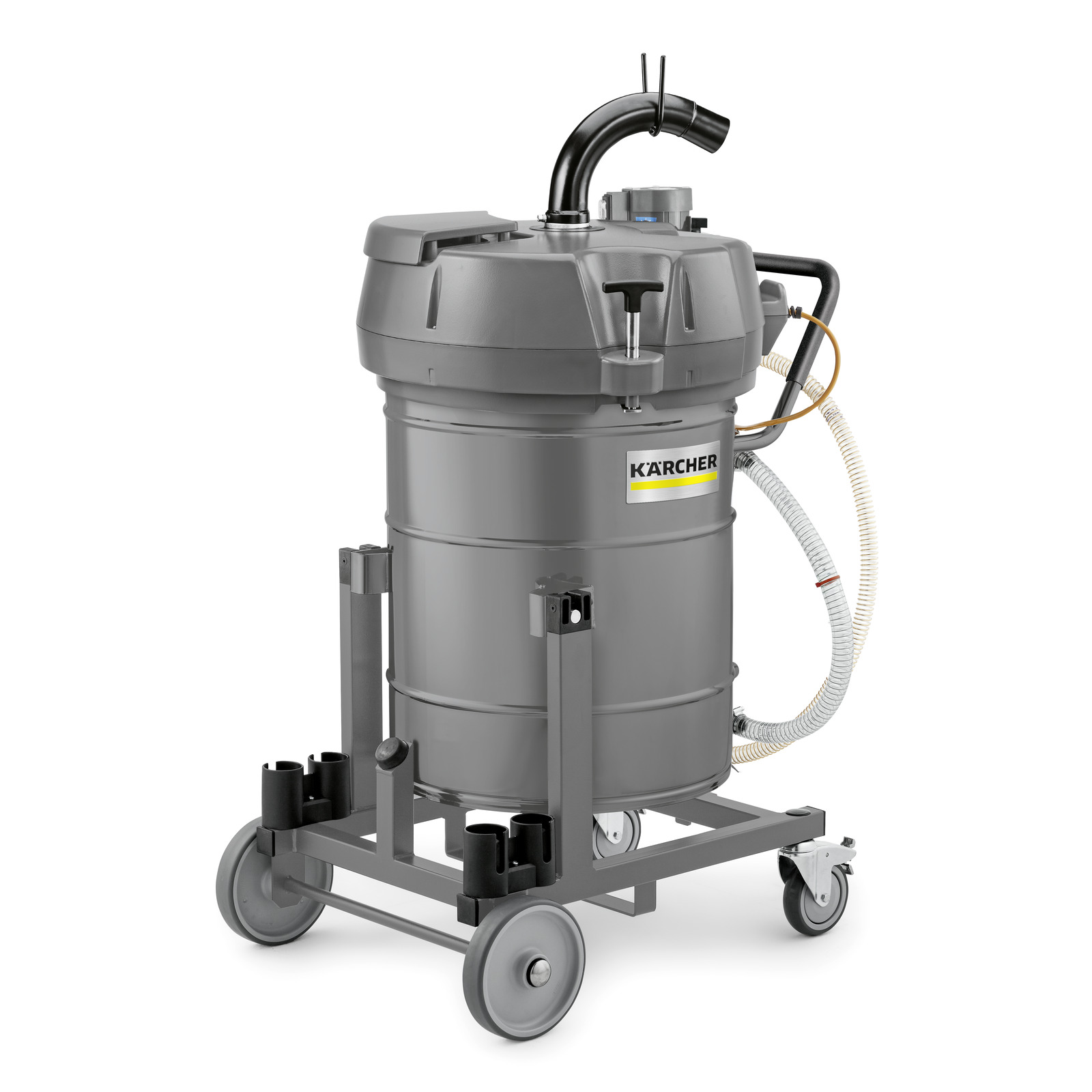

IVR-L 100/24-2 Tc Dp AC-powered liquid and swarf vacuum for vacuuming medium quantities of oils, coolant emulsions and fine, light metal shavings. The powerful two-turbine solution with low operating noise ensures high suction power for the mobile machine with a rated input power of 2.4 kW, while the washable, durable pocket filter enables continuous operation and the optional strainer basket effectively separates liquid and solid suction media. Vacuumed liquids are drained from the 100 l container by simply detaching the drain hose and a filling level indicator prevents overfilling. Up to a height difference of six metres, this process can be sped up by using the integrated, infinitely variable barrel pump. The emptying system with a tilting chassis enables safe emptying with a roll-off mechanism. It is also possible to use a forklift or crane for emptying.

Ergonomic tilting chassis

Sophisticated system for safe, manual, effortless emptying. Frame system enables ergonomic tilted emptying using the roll-off mechanism. Quick and easy emptying of the container: just tip backwards and you're done!

Barrel pump function

An autonomous barrel pump significantly increases the ability for vacuumed matter to be returned. Transparent hose for checking the amount of fluid absorbed.

High robustness, flexibility and modularity

Machine and chassis very robust and equipped with high wall thicknesses. Rotatable hose connection with up to 360° rotatable pipe bend. Optionally available with overfill protection, strainer or accessories holder.

Fitted with two very quiet fan motors

For powerful suction power and optimum cleaning performance. Fans can be switched on separately for individual suction power as required. Very quiet drive head ensures that the cooling air is blown out evenly.

IVR-L 100/24-2 Tc Dp

Technical data

Product information and benefits

Ergonomic tilting chassis

Barrel pump function

High robustness, flexibility and modularity

Fitted with two very quiet fan motors

Equipped with compact surface filter of dust class L
