Industrial vacuum

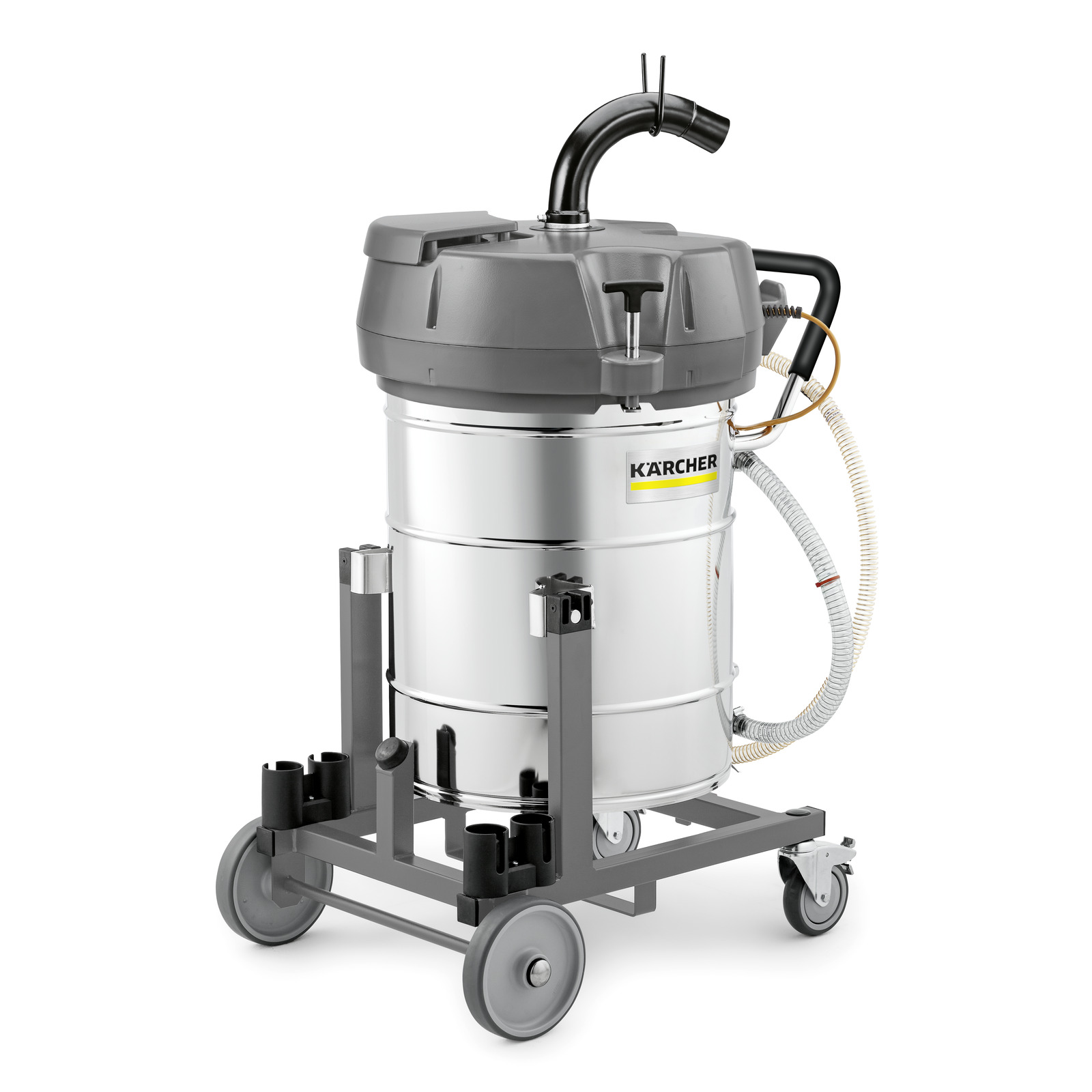

IVR-L 100/24-2 Tc Me

This device requires instruction

Part number: 9.987-886.0

The stainless steel version of the IVR-L 100/24-2 Tc Me industrial vacuum is suited to vacuuming and separating fluids and solids – including corrosive media.

Make an enquiry

Technical data

Power supply (Ph / V / Hz)	1 / 220 - 240 / 50 - 60
Air flow (l/s / m³/h)	148 / 532
Vacuum (mbar / kPa)	230 / 23
Container capacity (l)	100
Container material	Stainless steel
Rated input power (kW)	2.4
Vacuuming type	Electric
Main filter dust class	L
Filter area for main filter (m²)	0.45
Weight without accessories (kg)	58.8
Weight (with accessories) (kg)	59
Weight incl. packaging (kg)	59
Dimensions (L × W × H) (mm)	640 x 620 x 1060

Equipment

Accessories included with machine: no

Recommended maximum duration of use in hours/day.

Product information and benefits

The IVR-L 100/24-2 Tc Me is a compact and extra robust industrial vacuum. Castors and power cord are oil-resistant, emphasizing just how suited the durable machine is to use in tough day-to-day industry. Picking the machine up using a forklift is also possible. The vacuum cleaner offers a 100-litre stainless steel container and tilting chassis – perfect for vacuuming large quantities of liquids and/or mostly dust-free solids such as shavings. These can be perfectly separated from the liquids using the optional swarf basket. The stainless steel version makes the IVR-L 100/24-2 Tc Me industrial vacuum into a versatile machine. Even corrosive media can be vacuumed without problems. The 360° rotatable hose connection on the suction head guarantees high flexibility and tangle-free vacuuming. During vacuuming, the current filling level can be easily read from the drainage pipe. Drainage can becarried out either using the drainage tube or the tilting chassis.

Ergonomic tilting chassis

Sophisticated system for safe, manual, effortless emptying. Frame system enables ergonomic tilted emptying using the roll-off mechanism. Quick and easy emptying of the container: just tip backwards and you're done!

High-quality stainless steel collection container

Very easy to clean. Suitable for corrosive suction material. Transparent hose as filling level indicator and for draining liquids.

High robustness, flexibility and modularity

Machine and chassis very robust and equipped with high wall thicknesses. Rotatable hose connection with up to 360° rotatable pipe bend. Optionally available with overfill protection, strainer or accessories holder.

Fitted with two very quiet fan motors

For powerful suction power and optimum cleaning performance. Fans can be switched on separately for individual suction power as required. Very quiet drive head ensures that the cooling air is blown out evenly.

IVR-L 100/24-2 Tc Me

Technical data

Product information and benefits

Ergonomic tilting chassis

High-quality stainless steel collection container

High robustness, flexibility and modularity

Fitted with two very quiet fan motors

Equipped with compact surface filter of dust class L
