Industrial vacuum

IVR-L 120/24-2 Tc Me

This device requires instruction

Part number: 9.987-889.0

The IVR-L 120/24-2 Tc Me industrial vacuum for vacuuming and separating liquids and solids. Even corrosive media can be vacuumed thanks to the stainless steel construction.

Make an enquiry

Technical data

Power supply (Ph / V / Hz)	1 / 220 - 240 / 50 - 60
Air flow (l/s / m³/h)	148 / 532
Vacuum (mbar / kPa)	235 / 23
Container capacity (l)	120
Container material	Stainless steel
Rated input power (kW)	2.4
Vacuuming type	Electric
Main filter dust class	L
Filter area for main filter (m²)	0.45
Weight without accessories (kg)	65
Weight (with accessories) (kg)	65
Weight incl. packaging (kg)	66
Dimensions (L × W × H) (mm)	740 x 620 x 1180

Equipment

Accessories included with machine: no

Recommended maximum duration of use in hours/day.

Product information and benefits

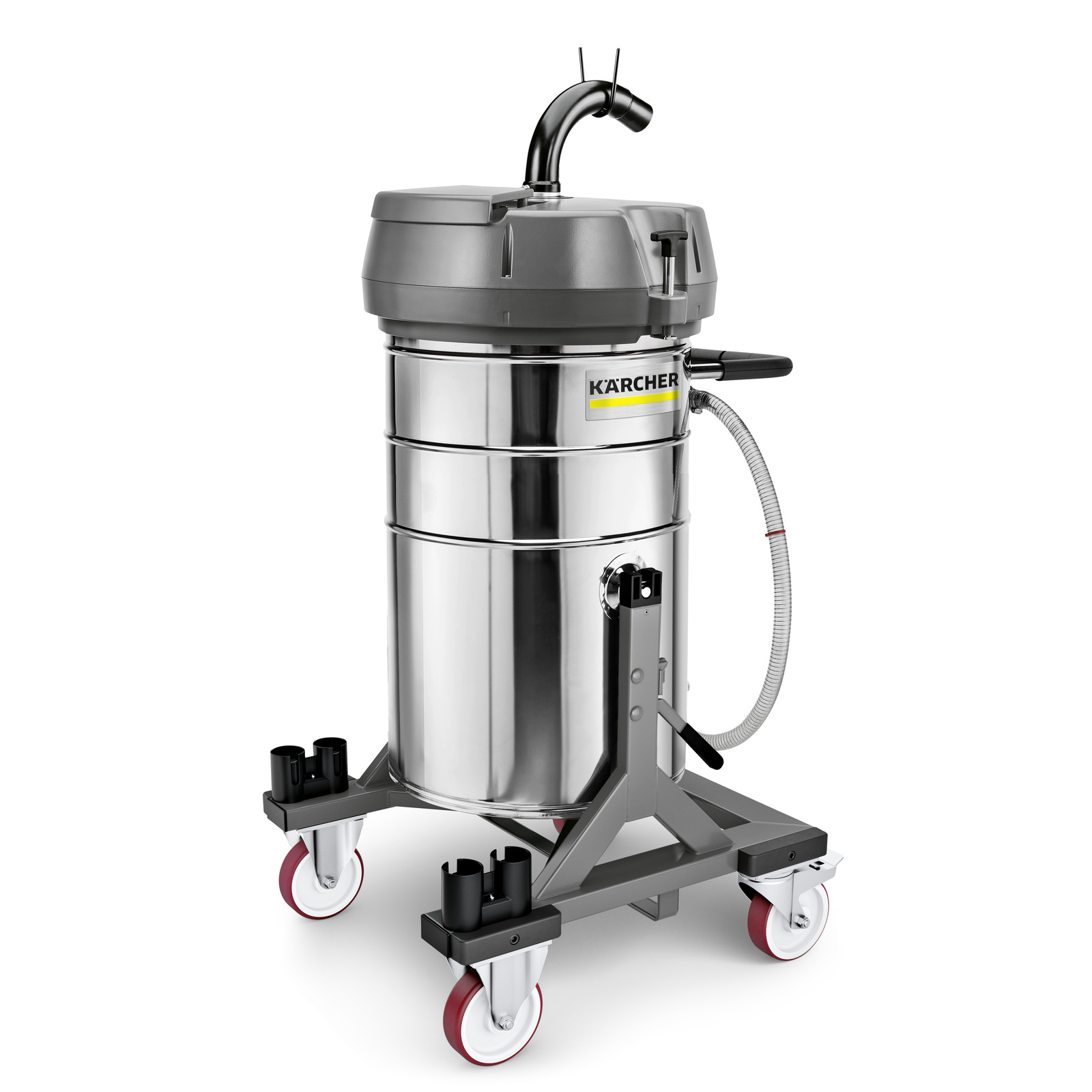

The IVR-L 120/24-2 Tc Me industrial vacuum is a compact machine with tilting chassis. The liquid vacuum offers a 120-litre stainless steel container for large quantities of liquids and/or mostly dust-free solids such as shavings. Solids can be separated from the vacuumed liquids without problems using the optional swarf basket. The IVR-L 120/24-2 Tc Me can vacuum even corrosive media thanks to its stainless steel construction. The 360° rotatable hose connection on the suction head guarantees excellent freedom of movement and prevents annoying tangling of the suction hose. The current filling level can be comfortably read off the drainage pipe. Drainage is carried out either by the drainage pipe of using the tilting chassis. The robust design including oil-resistant castors and power cord ensures a long service life even through tough daily industrial use. Thanks to the robust design, picking the machine up using a forklift is completely hassle-free.

High-quality stainless steel collection container

Very easy to clean. Suitable for corrosive suction material. Transparent hose as filling level indicator and for draining liquids.

High robustness, flexibility and modularity

Machine and chassis very robust and equipped with high wall thicknesses. Rotatable hose connection with up to 360° rotatable pipe bend. Optionally available with overfill protection, strainer or accessories holder.

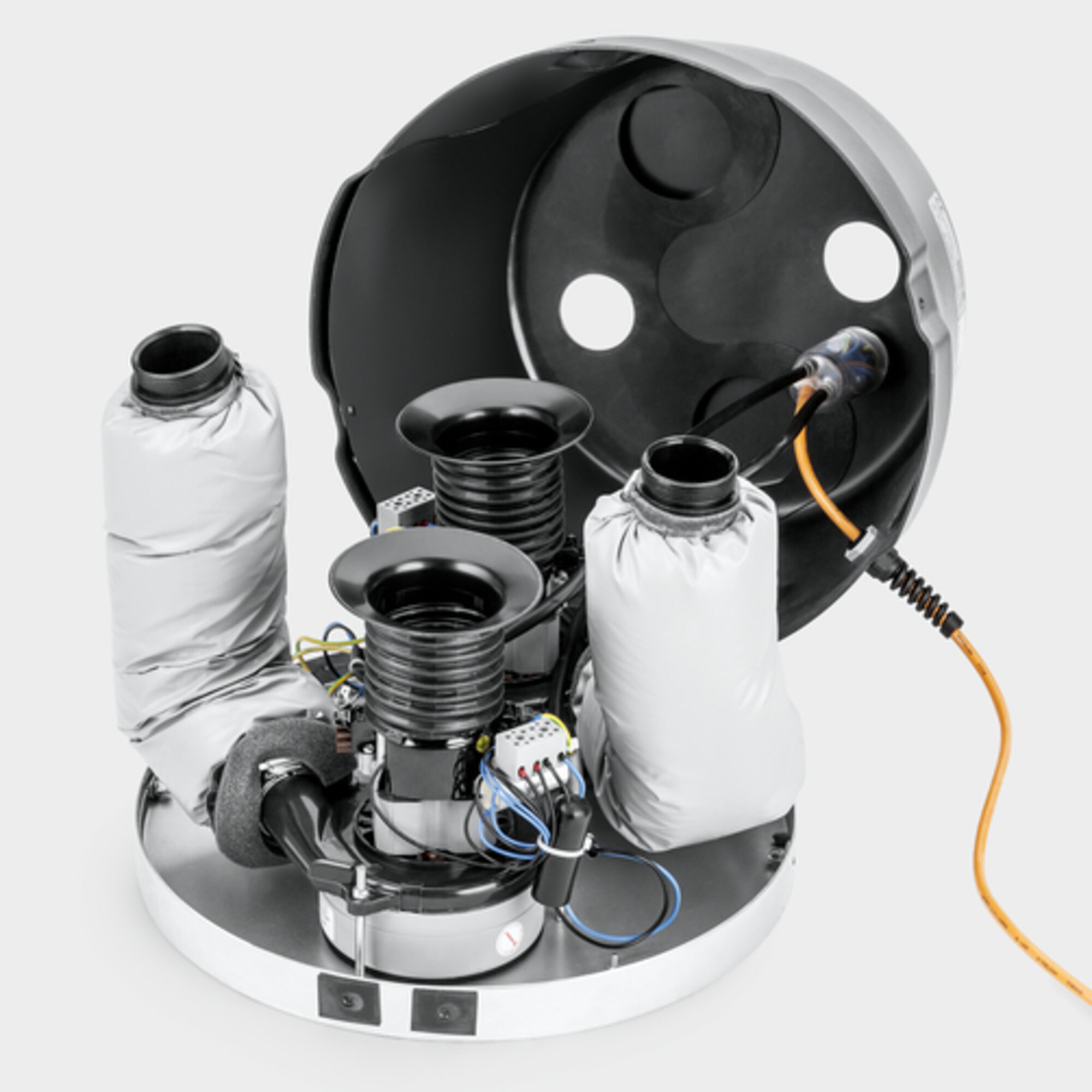

Fitted with two very quiet fan motors

For powerful suction power and optimum cleaning performance. Fans can be switched on separately for individual suction power as required. Very quiet drive head ensures that the cooling air is blown out evenly.
