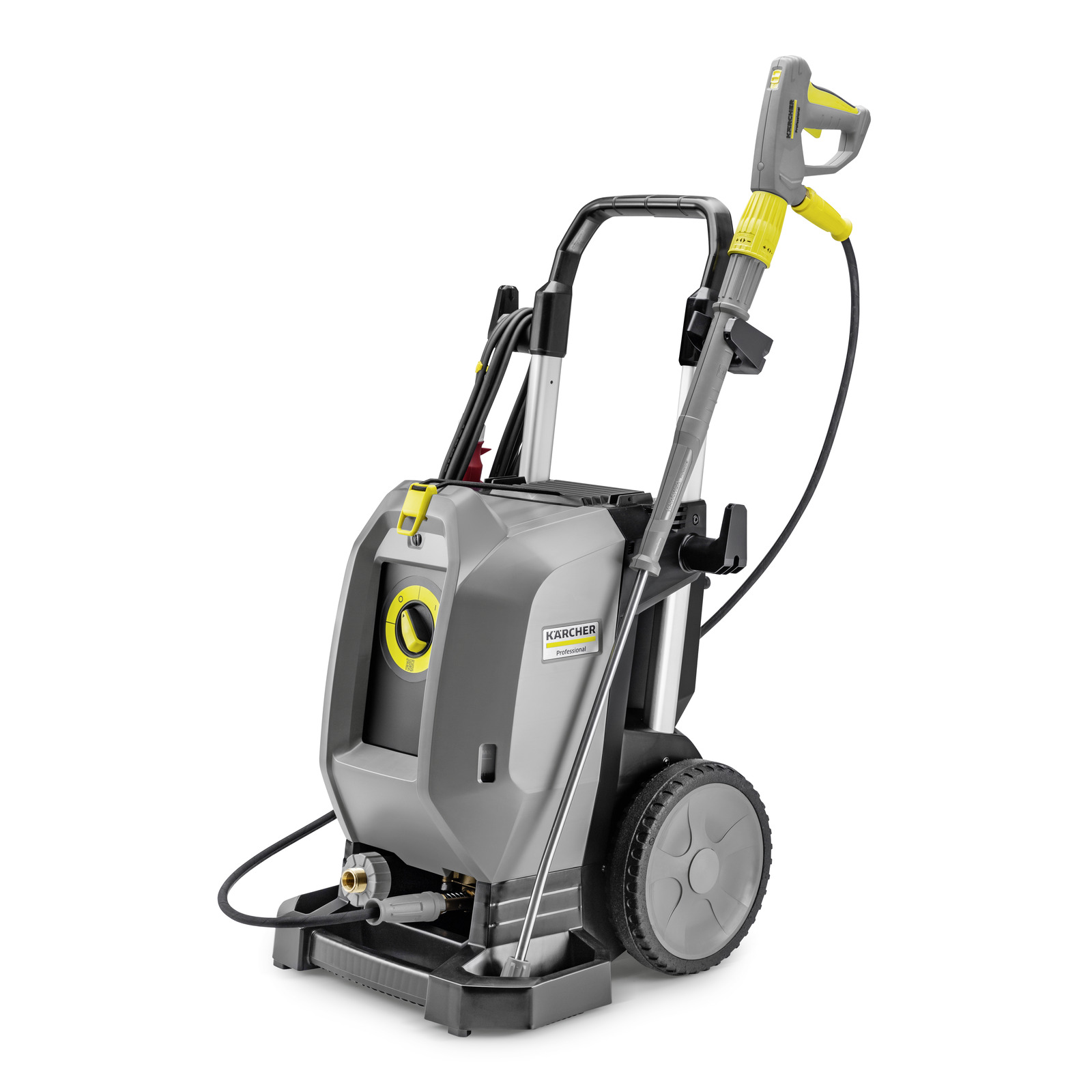

Kärcher high-pressure cleaner with wheels, grey body, yellow accents, and attached hose and spray gun.

Awards and exclusive range

High pressure cleaner

HD 10/21-4 S Plus

This device requires instruction

Part number: 1.286-958.0

Space-saving upright design
Air/water-cooled motor
Energy-saving EASY!Force high-pressure gun for fatigue-free work

Make an enquiry

Technical data

Power supply (Ph / V / Hz)	3 / 376 - 424 / 50
Flow Rate (l/h)	500 - 1000
Water feed temperature (°C)	60
Operating pressure (bar)	50 - 210
Max. Pressure (bar)	250
Power rating (kW)	8
Power cable (m)	5
Nozzle size	050
Water feed	1″
Colour	anthracite
Weight (with accessories) (kg)	63.9
Weight incl. packaging (kg)	72.2
Dimensions (L × W × H) (mm)	607 x 518 x 1063

Scope of supply

Trigger gun
Trigger gun with soft grip
High-pressure hose length: 10 m
High-pressure hose type
High-pressure hose specification
Spray lance: 1050 mm
Power nozzle
Dirt Blaster spray lance
High pressure lance
Servo Control

Equipment

4-pole three-phase motor with air and water cooling
Three piston axial pump: with stainless steel pistons
Pressure switch control
Integrated fine mesh water filter
Oil sight glass
Brass water inlet fitting

Recommended maximum duration of use in hours/day.

Trigger gun regulation of pressure and water flow.

High-pressure trigger gun with zero holding force for fatigue-free operation.

Robust, long-lasting quick-release lock: five times faster than screwing.

Product information and benefits

The HD 10/21-4 S Plus cold water high-pressure cleaner is the ideal machine for ergonomic and fatigue-free work. The Kärcher EASY!Force Advanced trigger gun makes it comfortable to use without any holding force. The Servo Control controller regulates the pressure and water volume. The Vibrasoft rotary nozzle reduces vibrations on the spray lance by up to 30%. Carefully selected materials and premium quality are the hallmarks of the HD 10/21-4 S Plus. A hard-wearing wobble pump, stainless steel pistons and brass cylinder head work in partnership with a 4-pole low-speed motor with air-water cooling system. Integrated frame carriers made from aluminium form a lightweight yet robust chassis, making crane loading an option. For maximum portability and compact proportions, the motor and pump unit is mounted vertically in an upright arrangement. The machine also features accessory storage in the form of a stowage compartment and adjustable hooks.

Compact upright design concept based on vertical arrangement of motor and pump unit

Small footprint and space-saving proportions. Easy to manoeuvre and transport. Maximum stability ensures a stable footing for the machine.

4-pole low-speed motor with air-water cooling system, robust pump with stainless steel pistons and brass cylinder head

Long service life and low maintenance costs. High performance and high efficiency. With suction feature and up to 60 °C water temperature.

Ergonomic Vibrasoft Dirt Blaster

Reduces vibrations by up to 30%. Reduces volume and noise level. Rotary nozzle takes the hard work out of extensive cleaning tasks.

Intelligently designed service concept facilitates quick operations on site

Swivelling pump head. Convenient oil fill level display and oil drain hole integrated in the chassis. Modular construction, comprising pump, motor and control cabinet.

Wide-ranging accessories with EASY!Lock

Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun. EASY!Force Advanced for fatigue-free work without any holding force. Rotating 1050 mm stainless steel lance.

Extensive range of accessories and attachment kits

Stowage compartment. Adjustable hooks, e.g. for storing second lance or electric cable. Storage for high pressure hose.

Product safety and documents

Applications and videos

Application areas

Cleaning tractors, machines and implements in agriculture

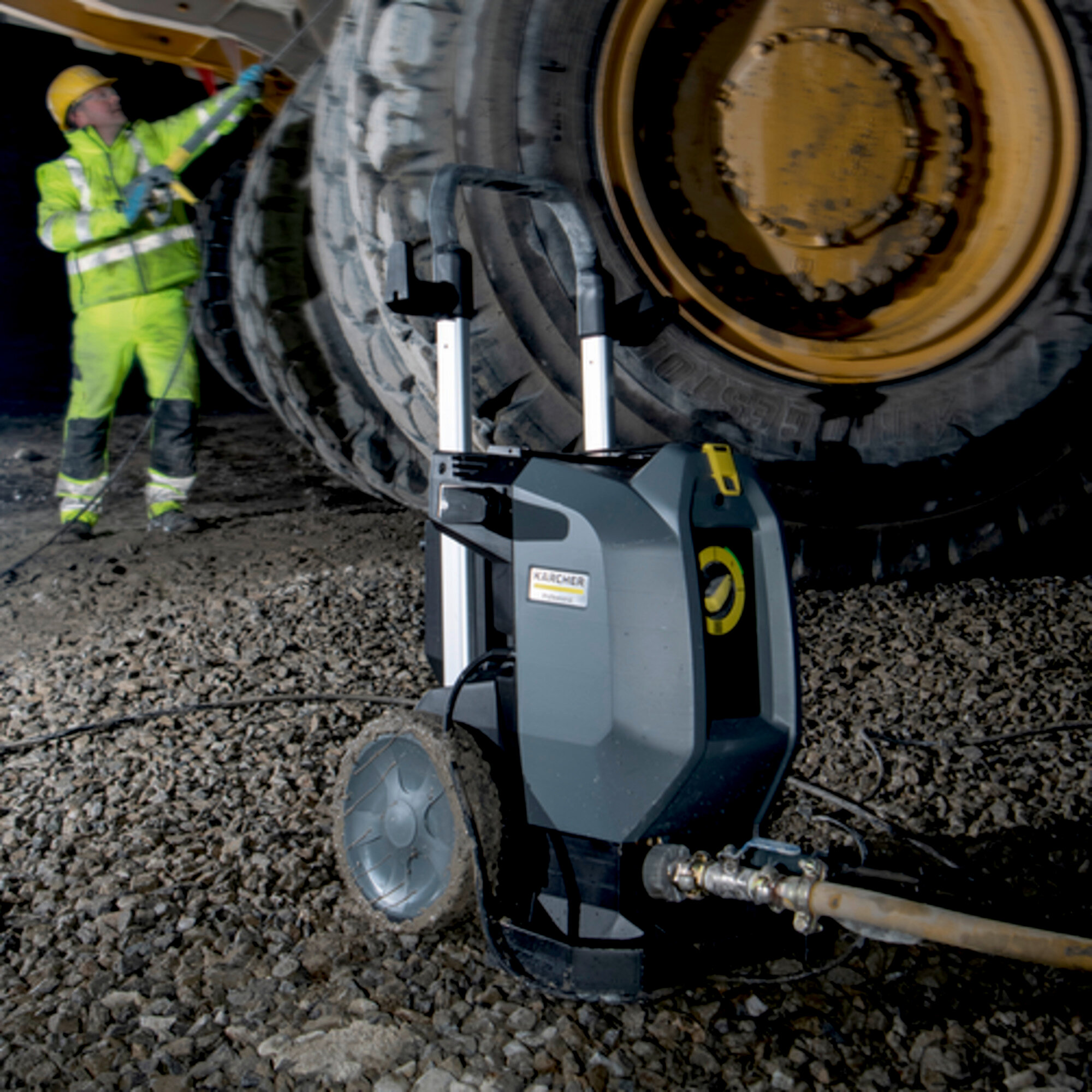

Cleaning machines and equipment on the building site, such as cement mixers, scaffolding, wheel loaders, diggers or concrete pumps
Cleaning production machinery in industry, such as in paint shops, in food production or in the manufacturing sector
Cleaning vehicles in transport sector, such as trucks, ships, aeroplanes or buses
Cleaning communal spaces such as public squares, driveways, fountains or car parks
