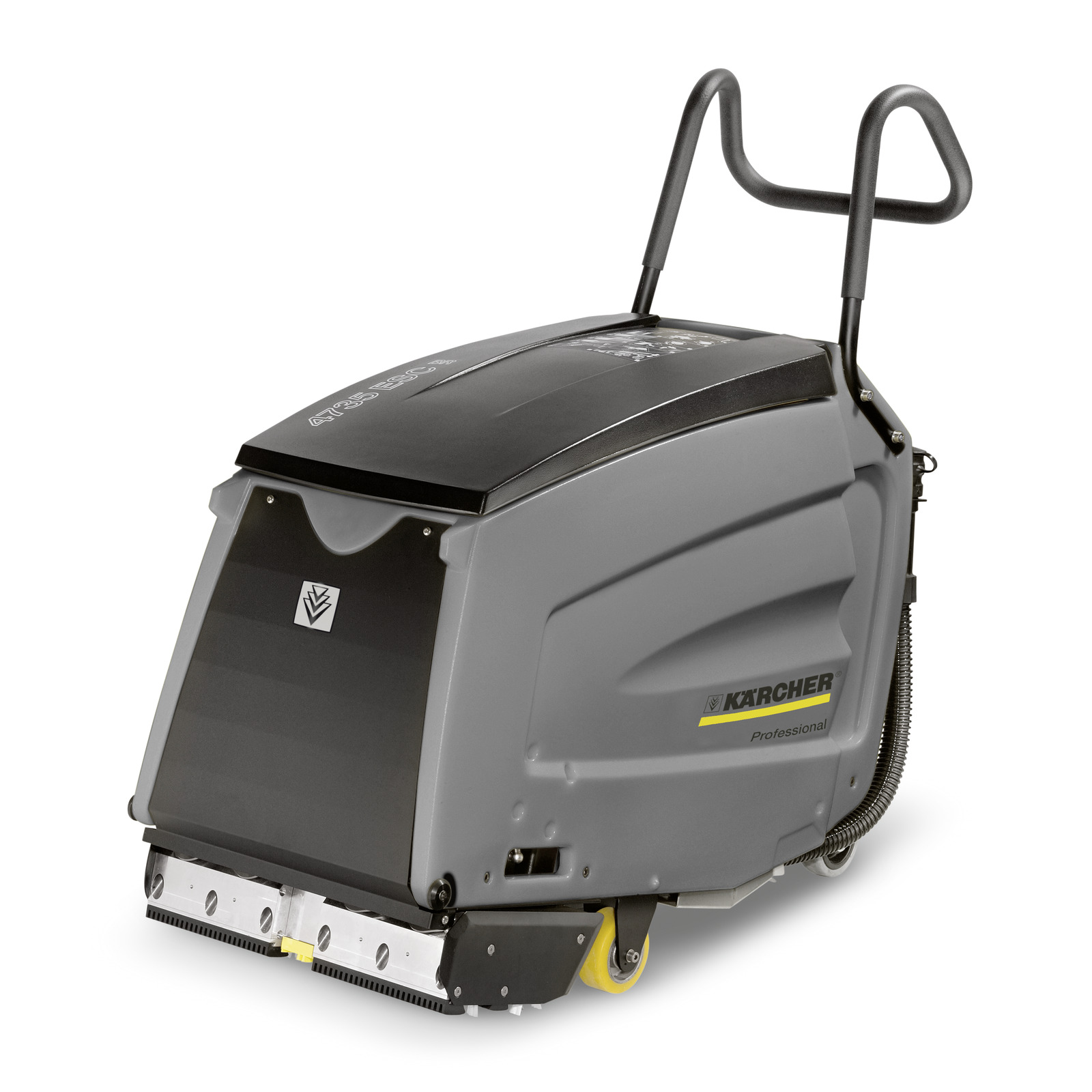

Grey Kärcher floor scrubber with black top and yellow accents, featuring dual handles and visible brush mechanism at the front.

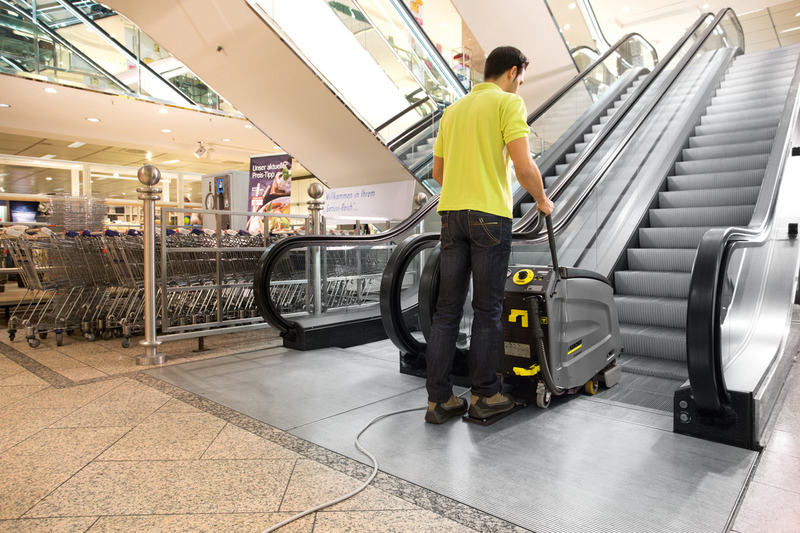

Person operating a Kärcher escalator cleaner in a busy shopping centre, with trolleys and various products visible in the background.

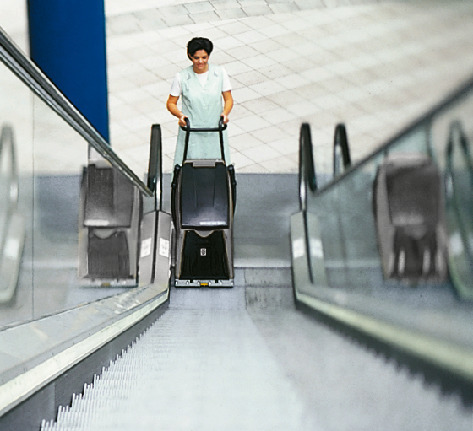

Person operating a Kärcher escalator cleaner on a moving escalator in a tiled indoor setting.

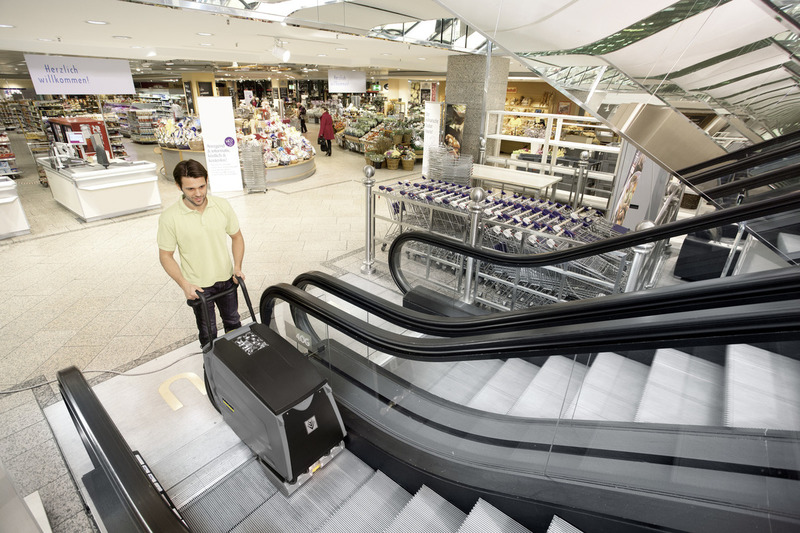

Person operating a Kärcher escalator cleaner in a shopping centre near escalators and shopping trolleys.

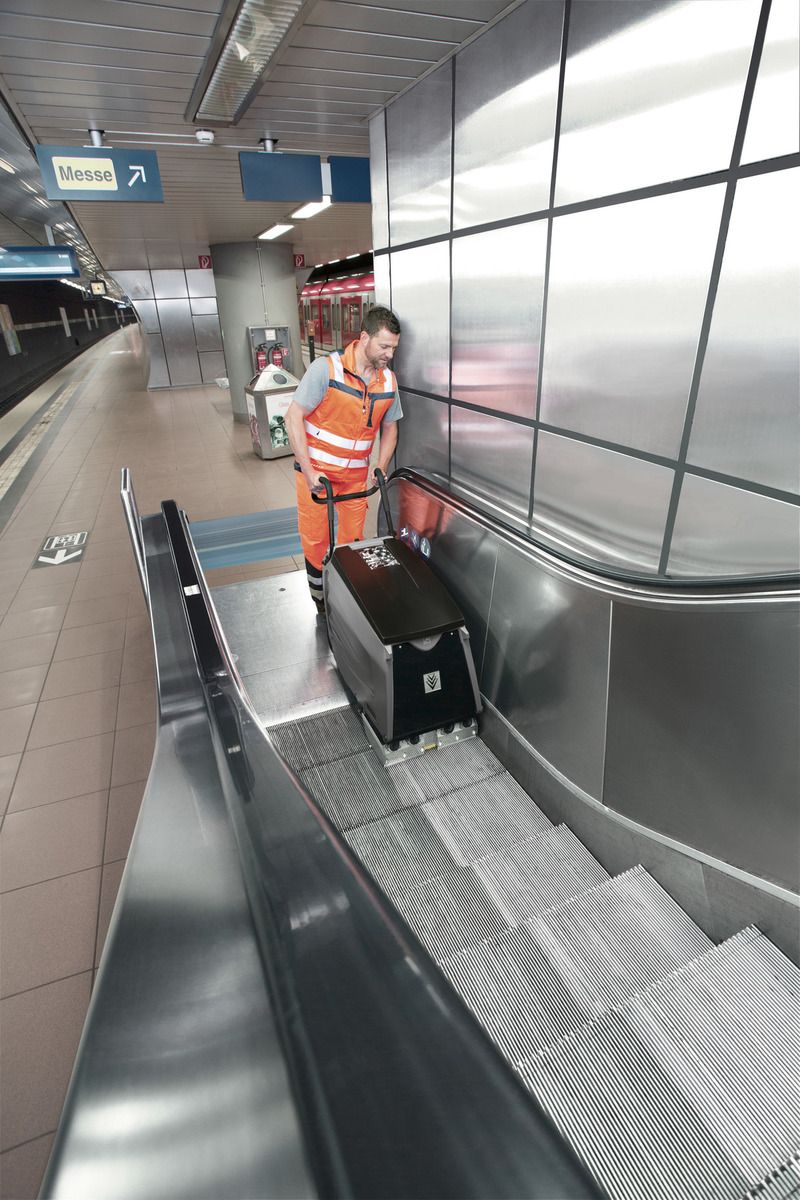

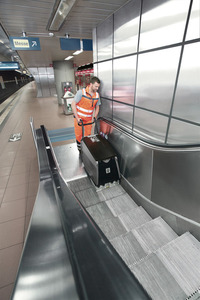

Worker in orange vest operates Kärcher escalator cleaner in a subway station, with signage and tiled walls visible.

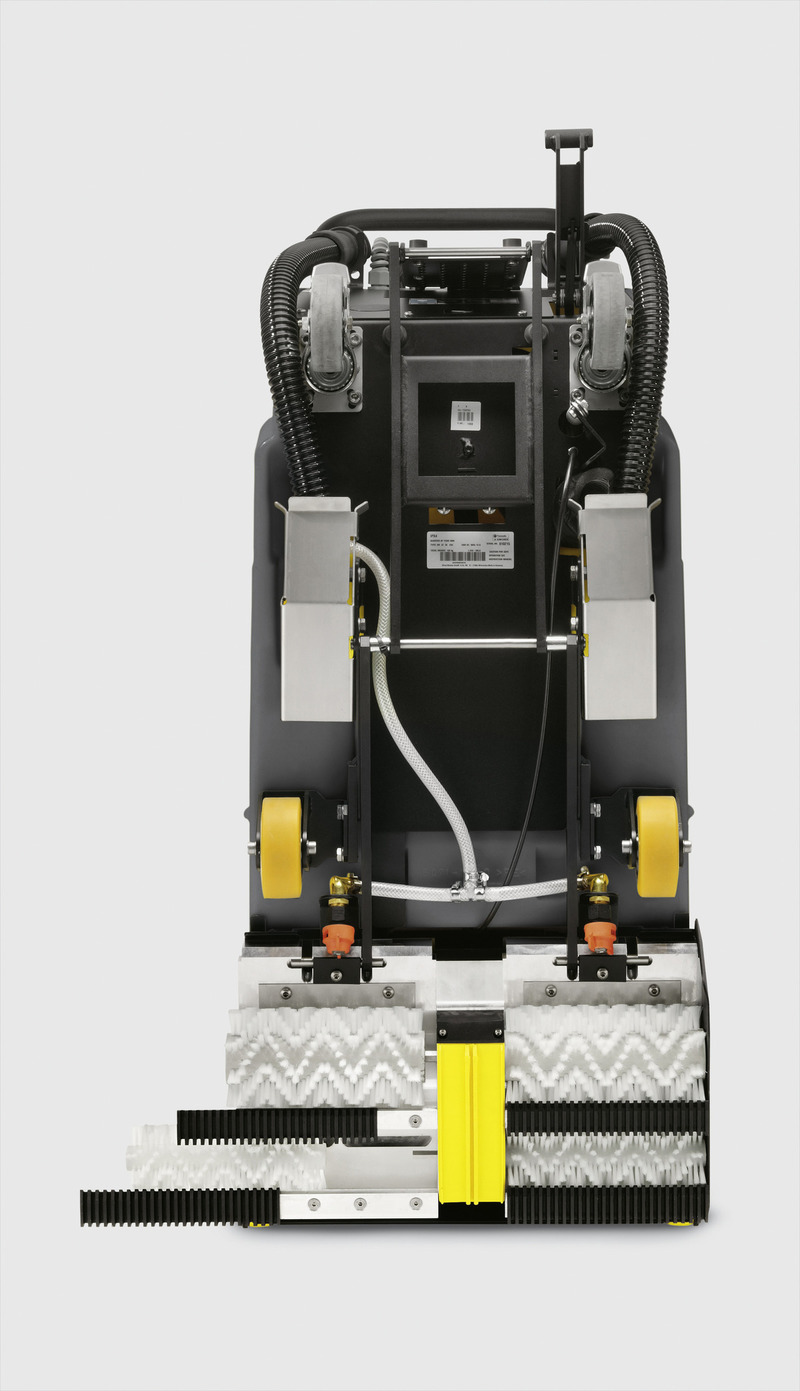

Kärcher floor scrubber with yellow wheels, hoses, and brushes, viewed from the rear against a plain background.

Escalator cleaner

BR 47/35 Esc Ep

This device requires instruction

Part number: 1.310-109.0

Fast and thorough cleaning of escalators and travellators.

Make an enquiry

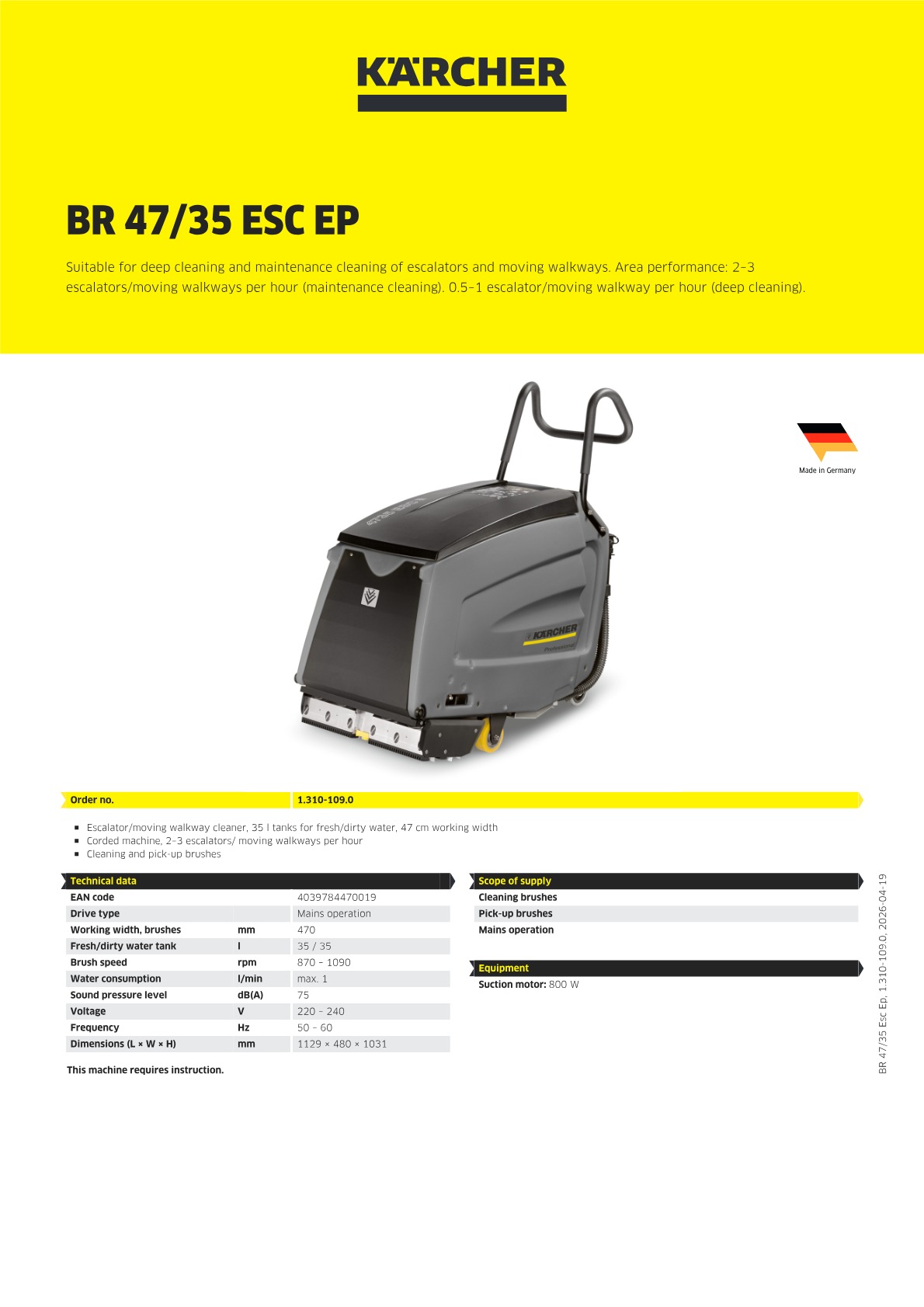

Technical data

Product information and benefits

The BR 47/35 Esc makes it possible to wet-clean an escalator while it is moving. Deep cleaning and maintenance cleaning operations can be performed six to seven times faster than with other systems available in the marketplace. Furthermore, the machine is also suitable for travellators. This remarkable, robust machine features a tubular steel chassis and stainless steel tank and functions like a scrubber drier. Operating the BR 47/35 Esc requires very little training, making it especially well suited for contract cleaners and with its compact dimensions, the BR 47/35 is easy to transport to and from sites.

Excellent suction power

The applied water is reliably sucked back into the machine by the two powerful suction turbines together with four straight suction hoses and matching combs. Prevents water from dripping into the escalator shaft.

Suitable for escalators

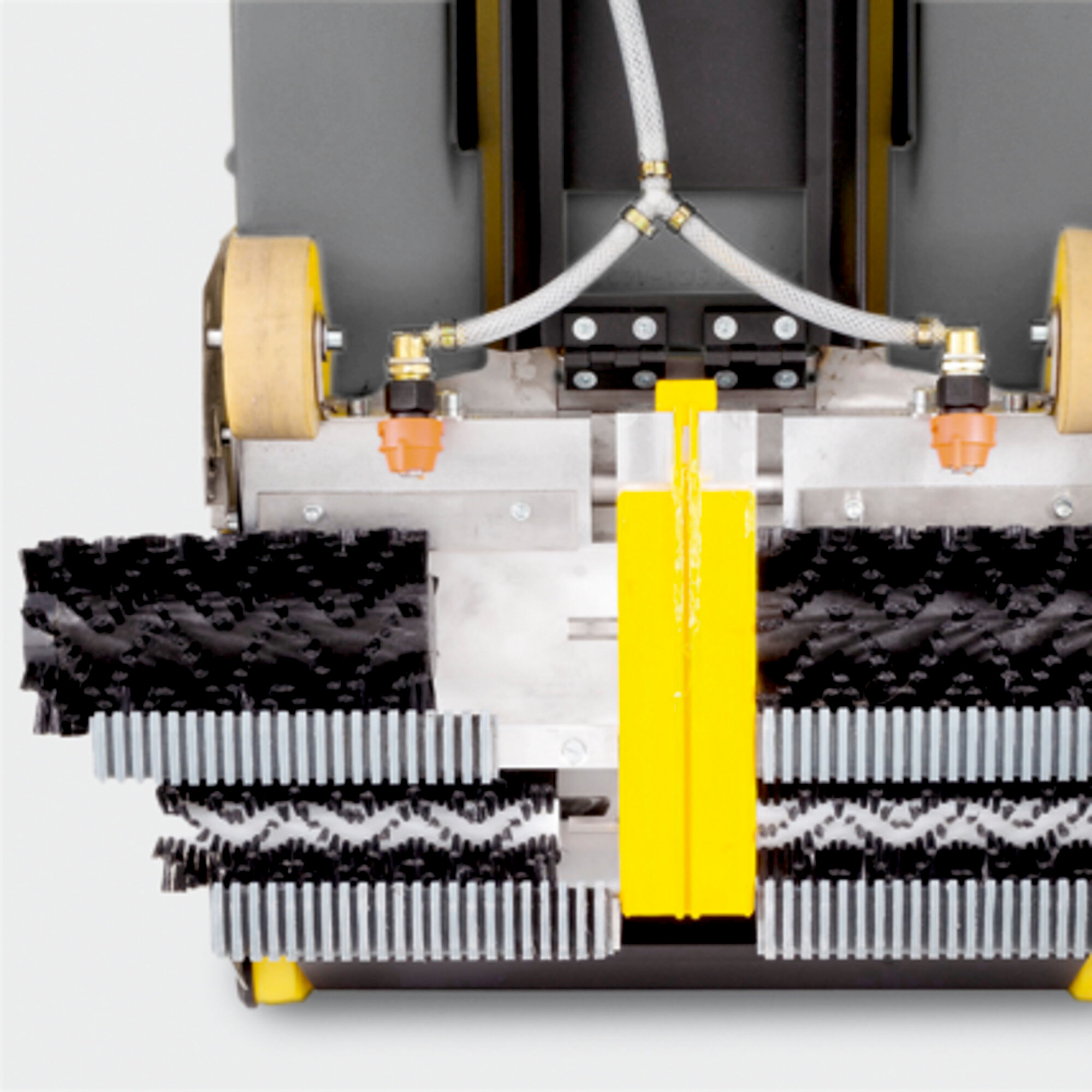

Combs which enter the grooves in the escalator provide the necessary vacuum. Different combs are available to suit different types of escalators. This ensures that the moisture is effectively vacuumed from the escalator.

Easy to stand up at the rear of the machine during operation

For simple operation.

Brush and comb replacement without tools

When the tanks are empty, the brushes and combs can be changed without additional tools.

Brush head is lowered on escalators

Safe handling

High quality

High-quality components reduce maintenance effort to a minimum

No vibrations

More comfort

Powerful suction turbine

For extremely high suction power. The applied water is reliably sucked back into the machine together with four straight suction hoses and matching combs.

Short brush head

For universal use. Also suitable for cleaning escalators that ascend after 1½ steps.

Drive type	Mains operation
Working width of brushes (mm)	470
Tank of fresh/dirty water (l)	35 35
Brush rotational speed (rpm)	870 - 1090
Water consumption (l/min)	max. 1
Sound pressure level (dB(A))	75
Power supply (V / Hz)	220 - 240 / 50 - 60
Dimensions (L × W × H) (mm)	1129 x 480 x 1031
