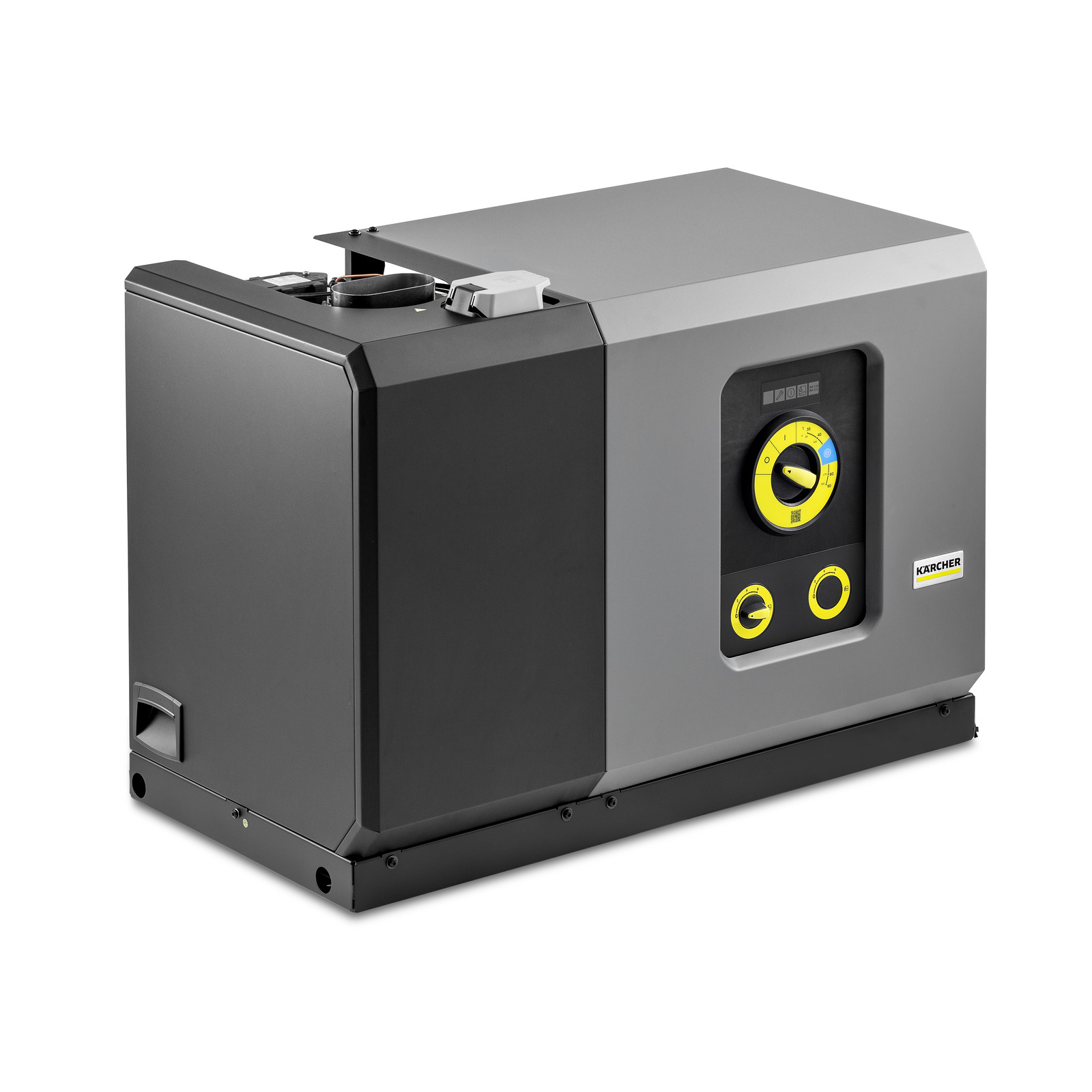

High pressure cleaner HDS 10/21 -4 St EU-I

Technical data

Number of current phases (Ph)	3
Voltage (V)	400
Frequency (Hz)	50
Flow Rate (l/h)	500 - 1000
Operating pressure (bar)	210
Max. Pressure (bar)	235
Temperature (supply 12°C) (°C)	max. 80
Water feed temperature (°C)	max. 30
Power rating (kW)	8
Heating oil consumption ( 60°C) / eco!efficiency mode (kg/h)	6.5
Heat energy (kW)	77
Power cable (m)	5
Water feed	1″
Mobility	Stationary
Fuse protection (A)	25
Weight (with accessories) (kg)	160
Weight incl. packaging (kg)	170
Dimensions (L × W × H) (mm)	1142 x 578 x 790

Scope of supply

Flame monitor
Ready for Servo Control
Ready for remote control
Power nozzle
Cleaning agent function

Equipment

Oil dipstick
Oil sight glass
Pre-equipped for a detergent inlet
RM1 dosing
Dry running protection
Large fine mesh water filter
Storage tank with float valve
Crankshaft pump with ceramic pistons
Water-cooled motor

Recommended maximum duration of use in hours/day.

Trigger gun regulation of pressure and water flow.

Robust, long-lasting quick-release lock: five times faster than screwing.

Switchable cleaning agent dosing system.

Product information and benefits

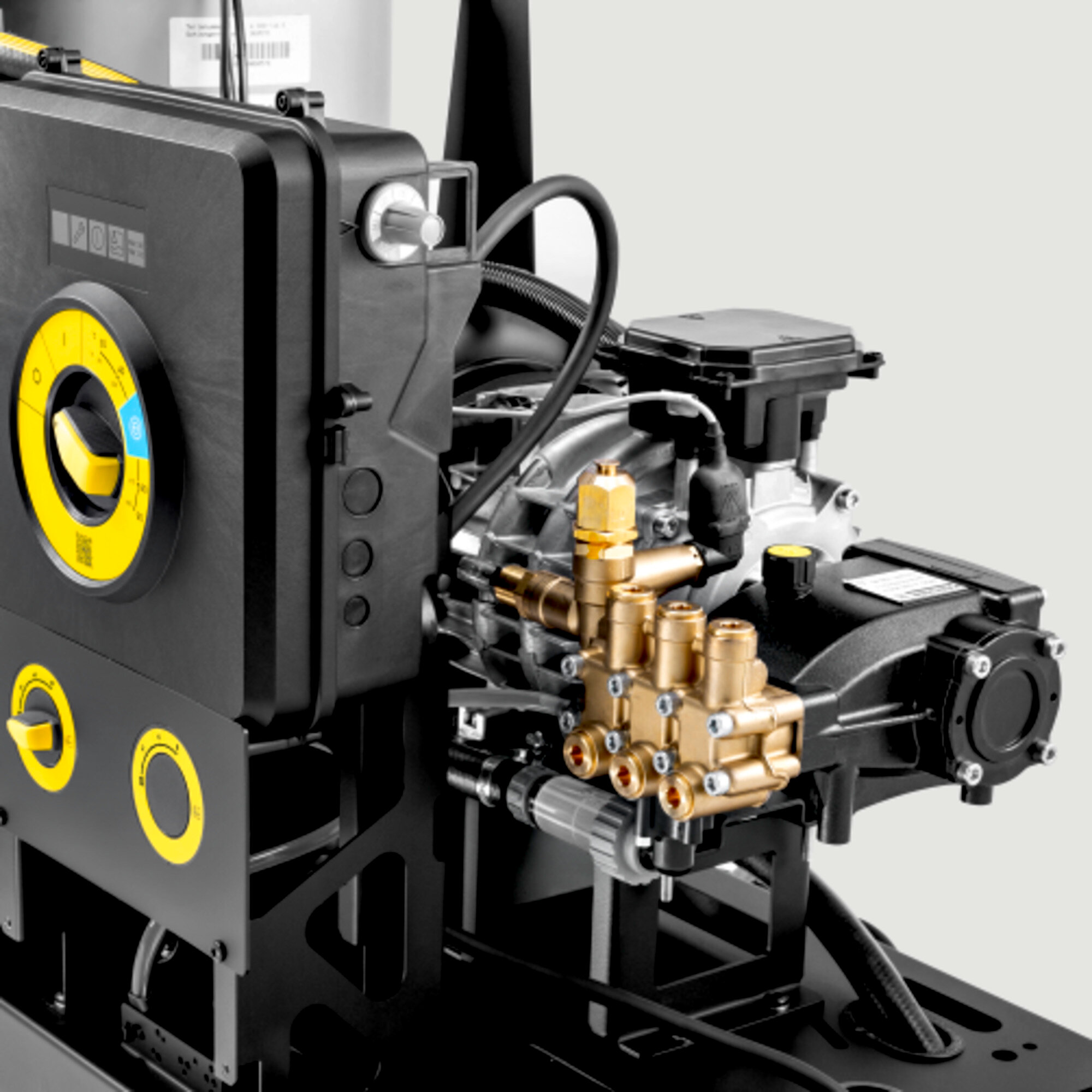

High-performance crankshaft pump

Robust reciprocating pump with brass cylinder head and high-quality materials ensure a long service life. Especially robust and extremely long-lasting. Longer working times, less maintenance effort and lower costs. Ideal for industrial use.

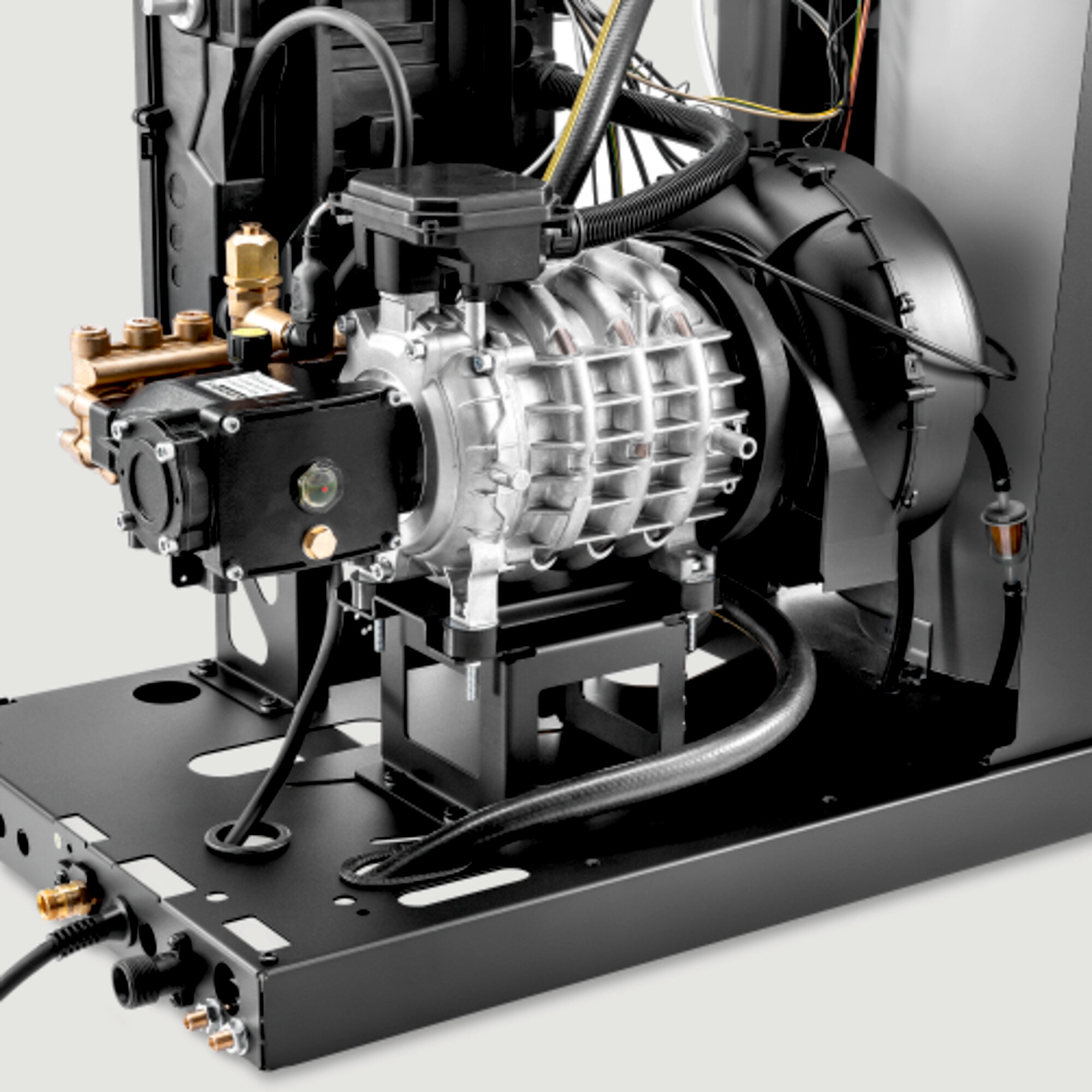

Water-cooled 4-pole electric motor (oil-heated)

Water-cooled motor for a high performance and long service life. 4-pole, slow-running electric motor guarantees a long working time. For high performance and low maintenance costs.

Efficient burner engineering

High-output burner with upright heating coil and continuous ignition without deflagration.

Electronic monitoring for greater operating safety

Switches off in case of leaks or phase failure. Automatic switch-off in case of low voltage range or overvoltage.

High-quality equipment

Easy and convenient operation

One control for all functions. Easy to learn and use Practical error display informs users immediately and saves time. Particularly user-friendly thanks to self-explanatory symbols. No need for time-consuming induction.

Large, transparent fine-mesh water filter

Large, easily accessible water fine filter for protecting the pump against dirt particles in water. Protects all high-pressure components. Easy to use, easy to clean.

Simple maintenance and very easy servicing

Easy access to all service and maintenance components. Comprehensive service network with highly trained service technicians.
