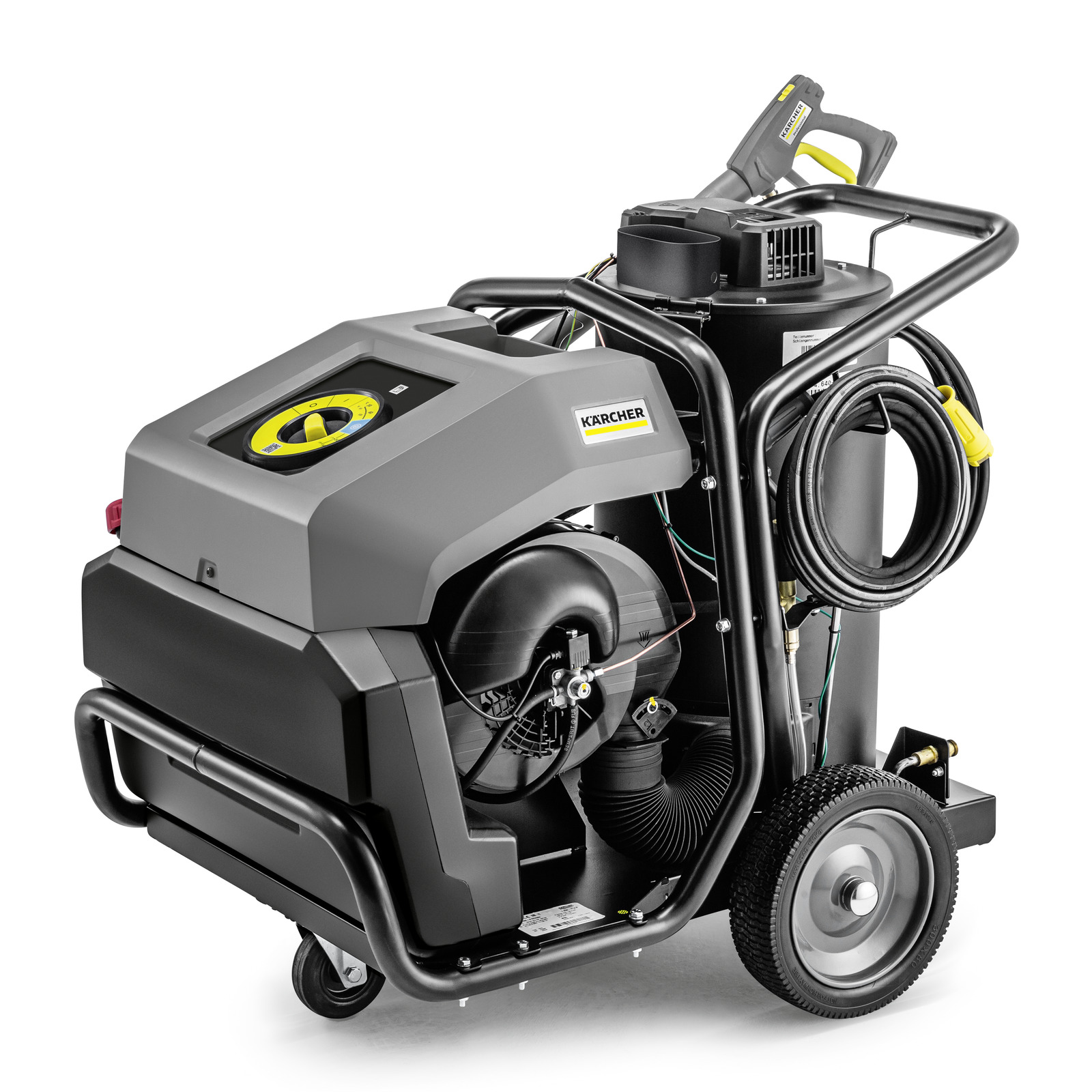

    Kärcher industrial high-pressure cleaner with wheels, hose, and control panel in a grey and black design.

    Awards and exclusive range

    Record Holder Guinness World Records
    World's No. 1 Pressure Washer Brand

    High pressure cleaner

    HDS 13/20-4 Classic

    This device requires instruction

    Part number: 1.030-912.0

    Reliable, robust and mobile: the super class hot water high-pressure cleaner with tubular steel frame and crankshaft pump impresses during daily use under the harshest conditions.

    Make an enquiry
    Number of current phases (Ph)
    3
    Voltage (V)
    400
    Frequency (Hz)
    50
    Flow Rate (l/h)
    600 - 1300
    Operating pressure (bar / MPa)
    30 - 200 / 3 - 20
    Temperature (supply 12°C) (°C)
    max. 80
    Heating oil consumption ( 60°C) / eco!efficiency mode (kg/h)
    8.9
    Heating oil consumption, eco!efficiency (kg/h)
    7.2
    Power rating (kW)
    9.5
    Power cable (m)
    5
    Fuel tank (l)
    30
    Weight (with accessories) (kg)
    157
    Weight incl. packaging (kg)
    167
    Dimensions (L × W × H) (mm)
    1075 x 722 x 915

    Scope of supply

    • Trigger gun
    • High-pressure hose length: 10 m
    • High-pressure hose specification
    • Spray lance: 1050 mm
    • Power nozzle

    Equipment

    • Pressure switch control
    • Pole reversing plug (three-phase)
    Made in Germany
    Recommended maximum duration of use in hours/day.
    Hose with freely rotatable connectors.
    Developed for use under challenging conditions, such as on construction sites, in agriculture or in the automotive and transport industries, the HDS 13/20-4 S Classic mobile hot water high-pressure cleaner stands out with its top performance, uncomplicated operation and a very good price/performance ratio. Thanks to the open design with robust steel frame, all relevant components are accessible at all times and very easy to maintain. At the heart of the super class machine is the powerful crankshaft pump with brass cylinder head and piston with ceramic sleeves, while the low-speed, 4-pole electric motor ensures safe and long-lasting operation. The desired working pressure and water flow can also be conveniently adjusted directly on the pump, which is protected by proven safety technology. Even very long cleaning applications can be performed with ease thanks to the 30 litre fuel tank, while the standard Classic high-pressure gun ensures the best cleaning results. The switchable eco!efficiency mode also enables work to be carried out in the very economical temperature range of 60°C with full water flow.
    Robust and long-lasting
    A robust tubular steel frame reliably protects the machine against damage. Good accessibility for easy service and maintenance.
    Reliability
    Proven safety technology such as thermo and safety valve and water filter.
    Efficient burner engineering
    High degree of efficiency with low emissions and long life. Long work applications thanks to 30-l fuel tank. In eco!efficiency mode, the machine operates in the most economical temperature range (60 °C) – with full water flow.
    Outstanding mobility
    Puncture-proof, large wheels for safe manoeuvring on uneven surfaces. With crane hook for simple transport.

    Manufacturer: Alfred Kärcher SE & Co. KG
    Alfred-Kärcher-Strasse 28-40, 71364 Winnenden, Germany
    Tel. +49 7195 / 14-0 I Fax +49 7195 / 14-2212
    E-mail: info@karcher.com

    Manual

    Read the manual online easily

    Read online
    • Manual

      Manual

      Download PDF

    Application areas

    • Vehicle cleaning
    • Device and machine cleaning
    • Workshop cleaning
    • Cleaning outdoor spaces
    • Service station cleaning
    • Façade cleaning
    • Swimming pool cleaning
    • Cleaning of sports facilities
    • Cleaning during production processes
    • Cleaning of production facilities
