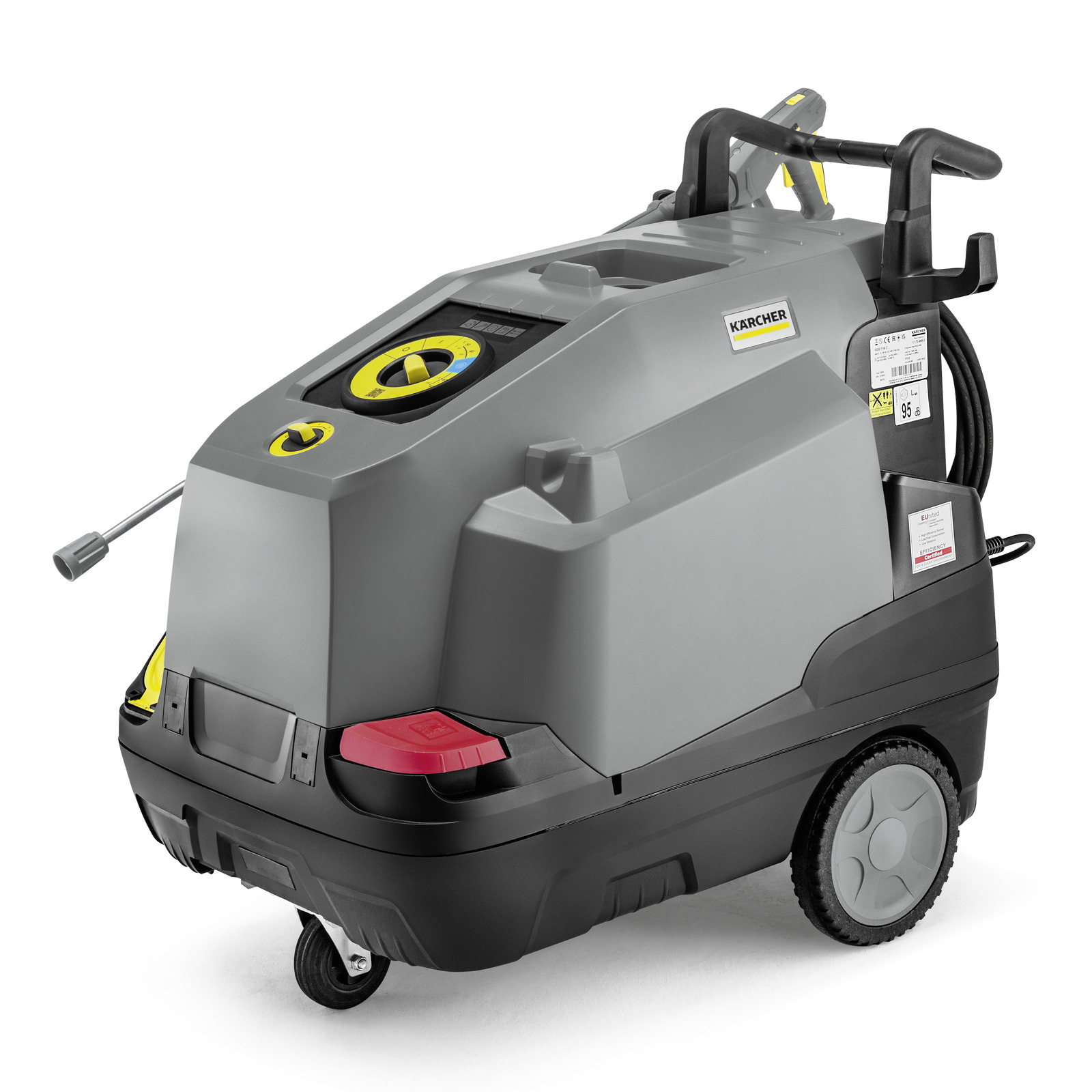

Grey Kärcher high-pressure cleaner with wheels, control panel, and hose holder, viewed from the rear angle.

Awards and exclusive range

High pressure cleaner

HDS 7/16 C

This device requires instruction

Part number: 1.173-906.0

Compact and powerful, air-cooled electric motor with axial pump
10-metre-long high-pressure hose, modular electronics like in M/S class, storage compartment for accessories
EASY!Force Advanced, detergent tank, descaler

Make an enquiry

Technical data

Number of current phases (Ph)	3
Voltage (V)	400
Frequency (Hz)	50
Flow Rate (l/h)	310 - 660
Operating pressure (bar / MPa)	30 - 160 / 3 - 16
Max. Pressure (bar)	220
Temperature (supply 12°C) (°C)	max. 80
Power rating (kW)	4.4
Consumption of fuel oil at full load (kg/h)	3.6
Heating oil consumption, eco!efficiency (g/h)	2.9
Power cable (m)	5
Nozzle size	040
Fuel tank (l)	15
Weight (with accessories) (kg)	111.4
Weight incl. packaging (kg)	120
Dimensions (L × W × H) (mm)	1066 x 650 x 920

Scope of supply

Spray gun
Spray lance: 1050 mm
Power nozzle

Equipment

High-pressure hose length
Soft Damping System (SDS)
Pressure cut-off
Integrated fuel and detergent tank

Recommended maximum duration of use in hours/day.

High-pressure trigger gun with zero holding force for fatigue-free operation.

Robust, long-lasting quick-release lock: five times faster than screwing.

Weeding with our weed remover and hot water high-pressure cleaners without chemicals.

picto certified virus disinfection CMYK oth 01 EN CI20

HDS EUnited Cleaning Efficiency Certificate Label oth 1 75810 CMYK 1

Product information and benefits

Powerful 3-phase hot water high-pressure cleaner in the compact class: the HDS 7/16 C with a powerful air-cooled motor with eco!efficiency mode. A robust axial pump with three ceramic pistons builds up high pressure. The EASY!Force Advanced high-pressure gun with patented nozzle technology and EASY!Lock quick-release fasteners make for ergonomic work. The Soft Damping System (SDS) reduces vibrations. The hot water technology effectively breaks up even lubricants and reduces the use of detergents, which are precisely dosed from a 15.5-litre tank. The pressure and water flow can be adjusted depending on the task. The maintenance-friendly HDS 7/16 C is designed for daily use under hard conditions. The descaling option, a water filter and a safety valve protect the technology. A robust chassis protects against impacts, while large wheels and a steering roller/castor offer high manoeuvrability. There are integrated storage possibilities for accessories.

High efficiency

eco!efficiency mode – economical and environmentally friendly, even during longer periods of use. Reduces fuel consumption and CO₂ emissions by 20%.

Wide-ranging accessories with EASY!Lock

EASY!Force Advanced for fatigue-free work without any holding force. Rotating 1050 mm stainless steel lance. Patented Kärcher power nozzle can offer up to 40 per cent more impact force than conventional nozzles.

Operational safety

Easy-to-access water filter protects the pump against dirt particles in the water. Safety valves, water shortage and fuel protection ensure the availability of the machine.

Reliability

Water softening system to protect the heating coil against calcification damage. The Soft Damping System (SDS) compensates for vibrations and pressure peaks in the high-pressure system.

Multiple storage spaces for accessories integrated into the machine

Storage hooks for power cable and high-pressure hose. Integrated nozzle storage. Integrated lance holder for transport.

Detergent dosing unit

Precise detergent dosing unit with rinse function. Large tank opening with filling chute.

Mobility concept

"Jogger" design with large rubber wheels and steering roller. Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs. Push handles for simple transport and manoeuvrability.
