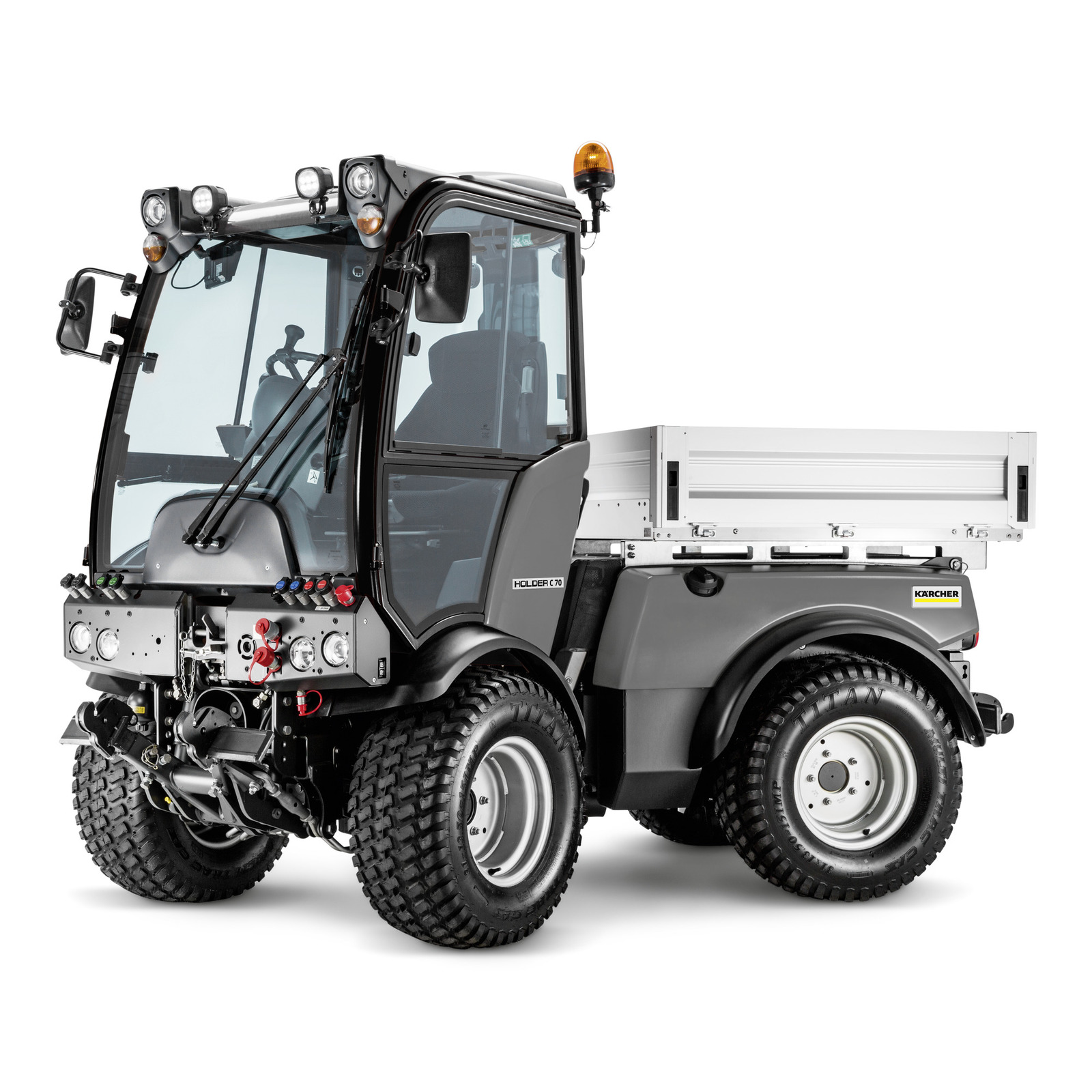

Kärcher utility vehicle with enclosed cab, large tyres, and rear cargo bed, featuring multiple headlights and an orange beacon.

Implement carriers

Holder C 70 SC

This device requires instruction

Part number: 8.324-795.0

Wheel load compensation and load limit control for greater work safety

Technical data

Drive	Diesel
Traction drive	All-wheel drive
Motor manufacturer	Kubota
Motor rating (kW)	48
Displacement (cm³)	2615
Cylinder	4
Exhaust emissions standard	STAGE V
Fuel tank (l)	65
Driving speed (km/h)	- 40
Working speed (km/h)	- 20
Wheelbase (mm)	1820
Permissible total weight (kg)	3500
Permissible total weight (option) (kg)	4000
Weight without accessories (kg)	1928
Dimensions (L × W × H) (mm)	3307 x 1091 x 2093

Equipment

Particle filter
Air conditioning
Heater
Rotating warning beacon
Year-round use

AGR certificate municipal sweeper CMYK oth 02 EN CI20

Product information and benefits

The multifunctional implement carrier C 70 SC with articulated steering impresses with enormous traction and climbing ability. The key components of its traction drive include 4 powerful wheel motors, intelligent hydraulic steering, as well as traction electronics, which automatically switch between all-wheel mode and two-wheel mode and between the operating programs depending on the driving situation. The result is an extremely dynamic driving experience and lower fuel consumption, synonymous with time and cost savings. The proven and valued Holder properties are also on board: They include the mechanical differential lock, which ensures even power transmission to both axles in extreme use. Other features include the mechanical front PTO shaft and the 3-dimensional front lift. The hydrostatic wheel load compensation ensures safety when turning on slopes, driving over kerbs and with the use of large attachments with a high centre of gravity. All this allows professional year-round use at the highest level. The comfort cab can be mounted at 3 heights depending on the application and in addition to excellent ergonomics offers an optimal 360° panoramic view for enhanced safety.

High variability for vehicle types, construction and expansion options

Flexible use and large selection of powerful implements. Two standard attachment areas (front/rear) and a 3rd attachment area for articulated implements. Quick-change system enables 1 person to change implements without the need for any tools.

Ergonomic and comfortable cab

Optimal room climate in all weathers with air-conditioning, heating, and rotating air nozzles. 360° panoramic view for unobstructed view of working area and safe manoeuvring. Doors on both sides for safe entry and exit to side facing away from the road.

Short set-up and service times

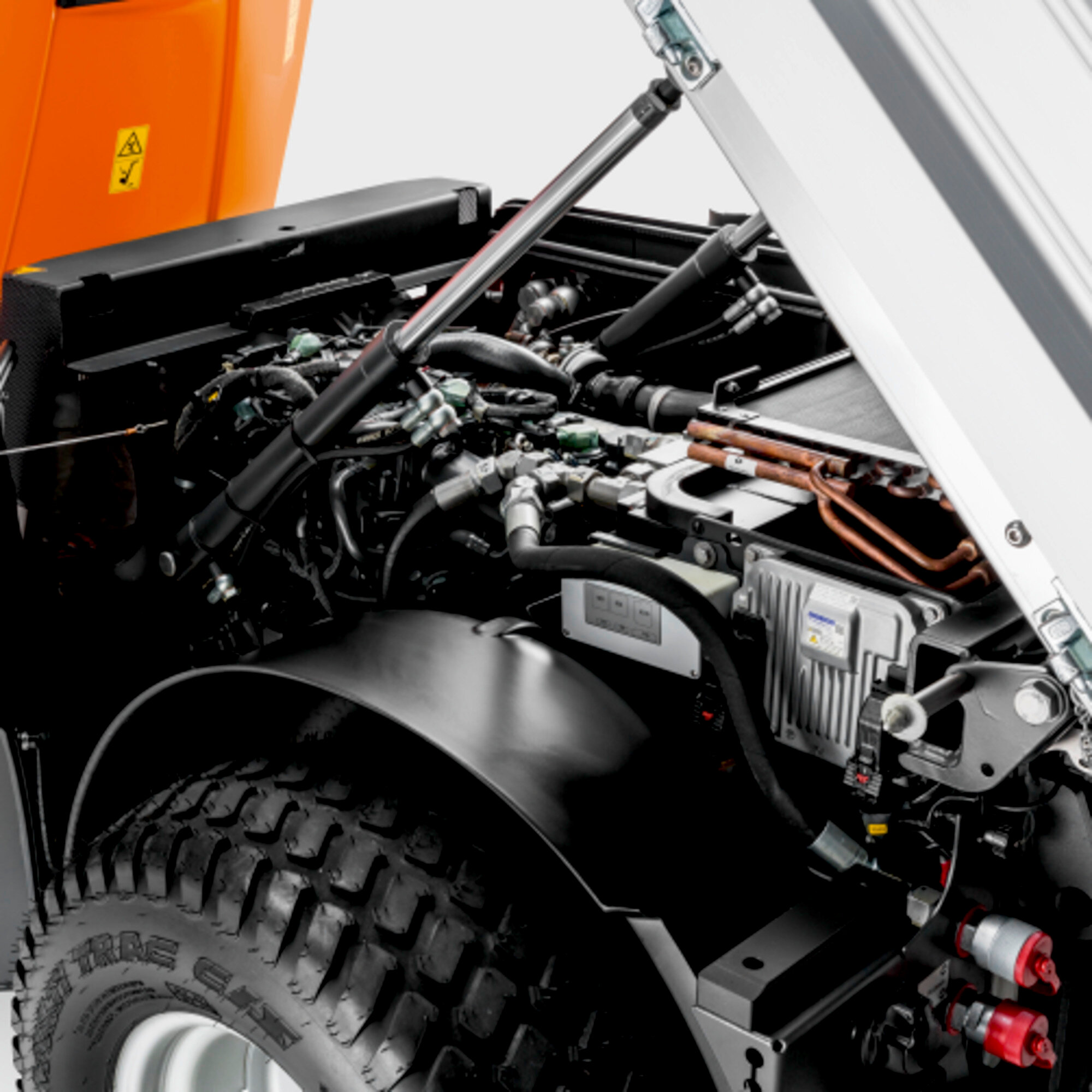

Hydraulically tiltable engine compartment cover allows tilting with articulated machine. Tanks can be swivelled out on both sides for easy cleaning and service access.
