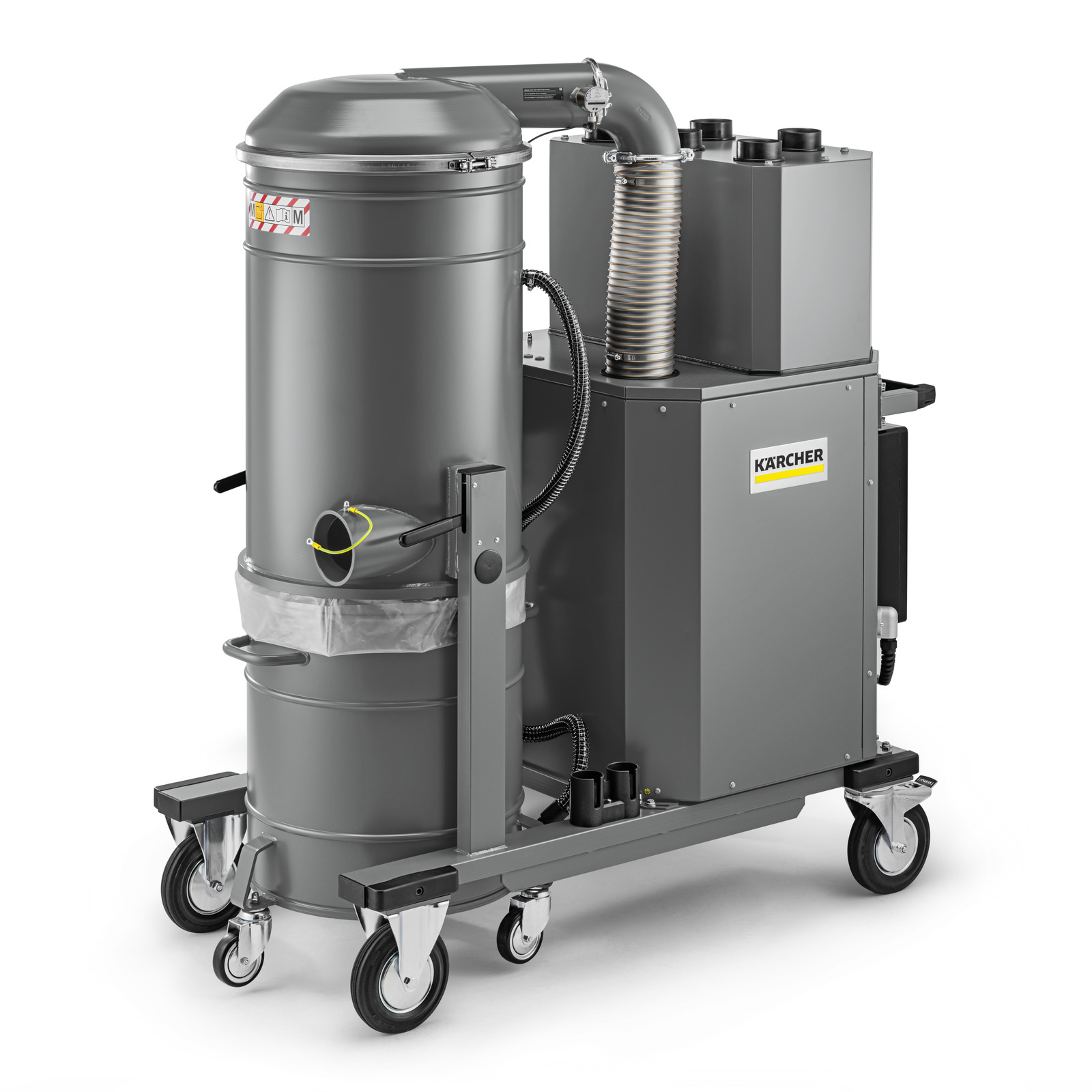

Kärcher industrial vacuum cleaner with a cylindrical body, mounted on wheels, featuring a hose and control panel.

Industrial deduster

ID 90/30 Afc Z22

This device requires instruction

Part number: 9.987-920.0

Suitable for use in ATEX zone 22
Automatic filter cleaning
Very quiet IE3 radial fan

Technical data

Number of current phases (Ph)	3
Voltage (V)	400
Frequency (Hz)	50
Air flow (l/s / m³/h)	250 / 900
Vacuum (mbar / kPa)	48 / 4.8
Container capacity (l)	100
Container material	Metal
Rated input power (kW)	3
Vacuuming type	Electric
Filter area (m²)	3.2
Sound pressure level (dB(A))	64
Main filter dust class	M
Weight without accessories (kg)	314
Weight incl. packaging (kg)	301.9
Dimensions (L × W × H) (mm)	1497 x 800 x 1690

Equipment

Filter: Pocket filter
Accessories included with machine: no

Machine with certified explosion protection.

Recommended maximum duration of use in hours/day.

Product information and benefits

Our ID 90/30 Afc Z22 dust removal system can also be used in potentially explosive atmospheres without any issues. In contrast to its sister model – the RE 9/30 – this version also features a direction of rotation monitor, a visual warning signal and associated control, and is therefore approved for ATEX Zone 22. The system, which is extremely economical and quiet (64 dB[A]), can be used in multiple shift operation and is impressive when continuously vacuuming dust that has become deposited on machines or production lines or is suspended in the air surrounding these. A high-efficiency radial fan (IE3) ensures a constantly high air flow of around 900 m³/h. Together with the 3.2 m² area of the dust class M main filter, this enables the machine to be used for prolonged periods, even with large quantities of dust. The filter is cleaned automatically via an electric filter shaker.

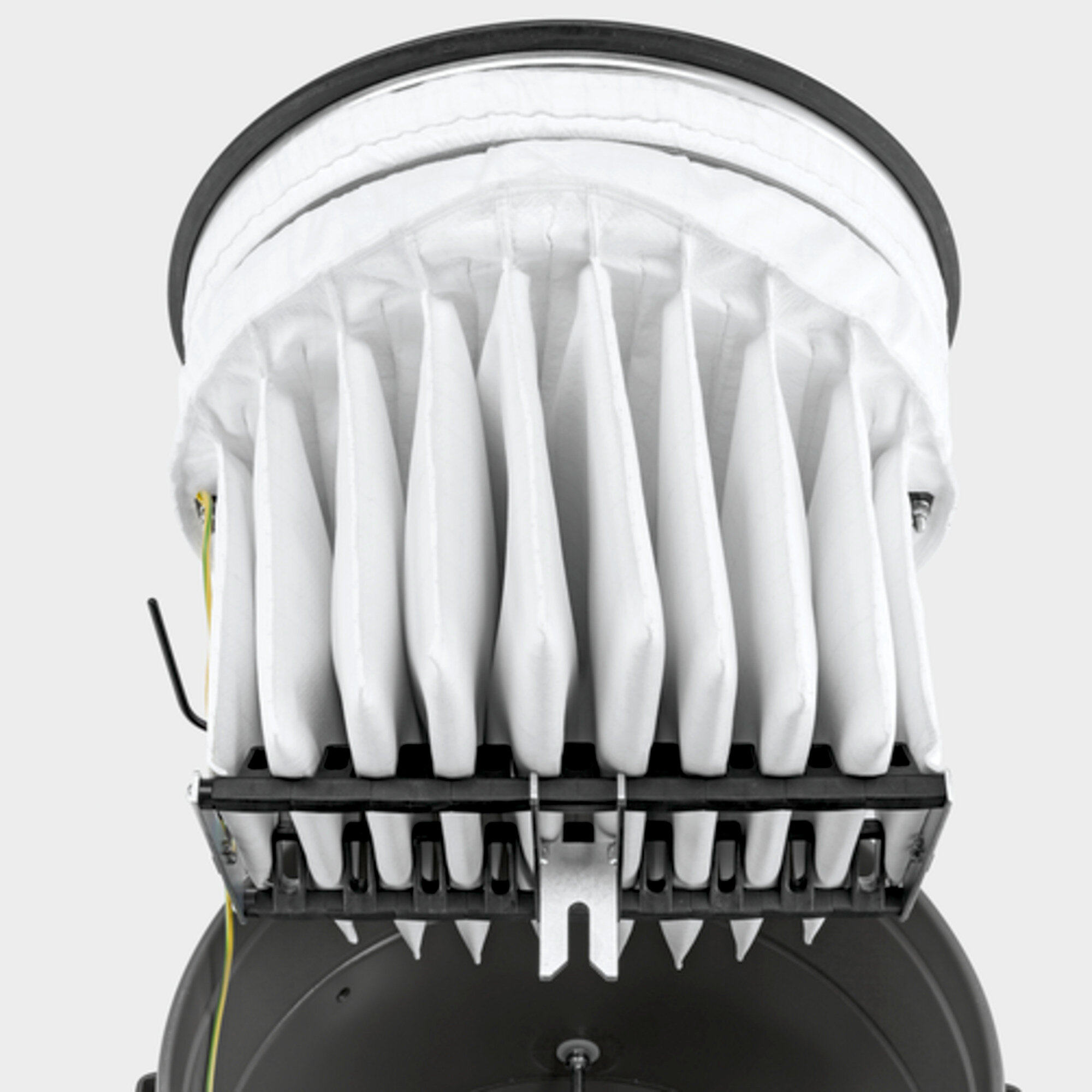

Durable, washable pocket filter and electric filter cleaning

Longer working times, less maintenance effort and lower costs. Ideal for industrial use. Efficient, convenient filter cleaning for constant suction power.

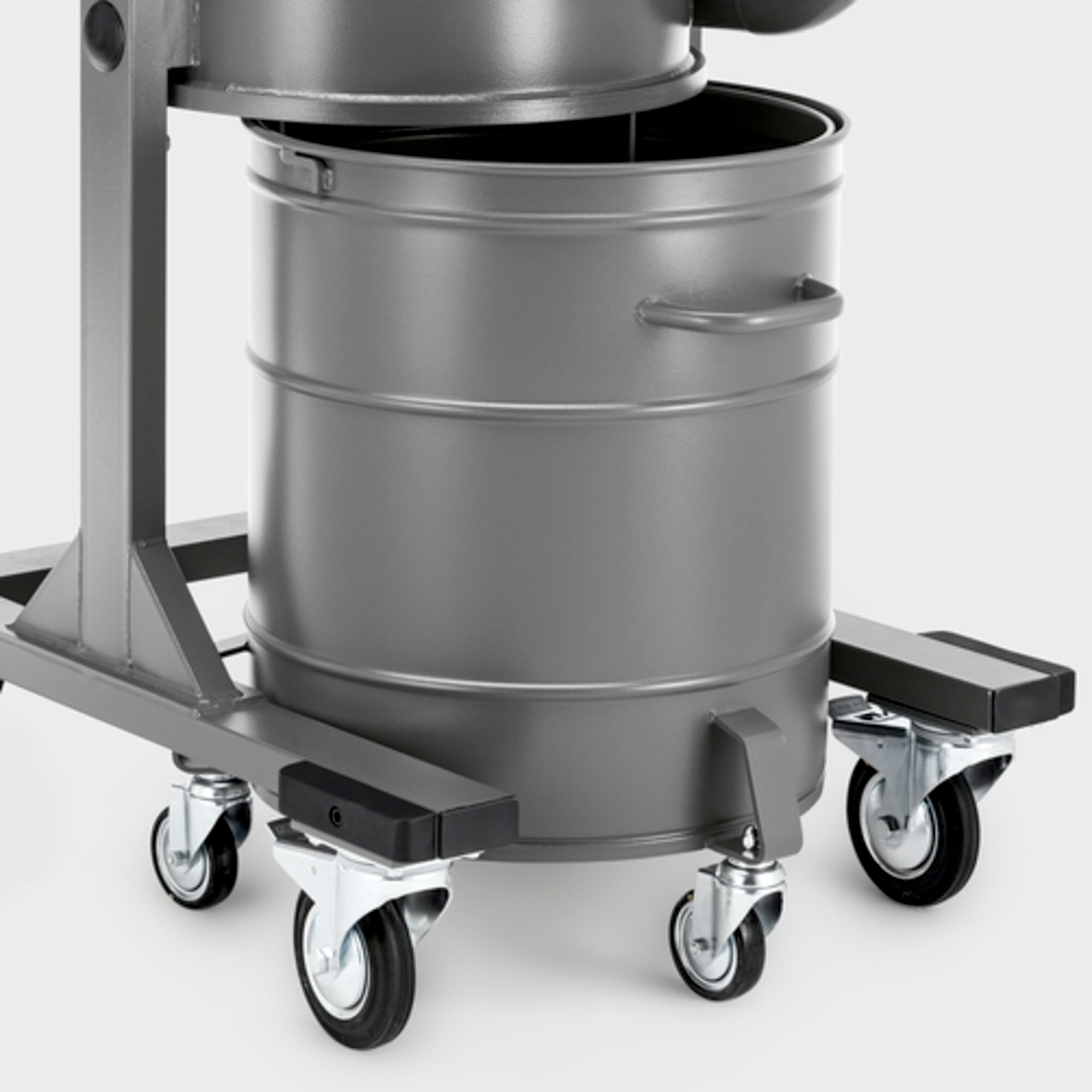

Simple and safe emptying without removing the drive head

Set-down trolley and rolling container for ergonomic emptying.

Low-dust emptying system with PE bag

Low-dust emptying thanks to closing mechanism and pressure compensation hose. Simple and safe dust disposal thanks to PE bag.

ID 90/30 Afc Z22

Technical data

Product information and benefits

Durable, washable pocket filter and electric filter cleaning

Simple and safe emptying without removing the drive head

Low-dust emptying system with PE bag

Convenient filter cleaning with electric vibrating motor
