Industrial vacuum

IVM 60/30 M Z22

Name: IVM 60/30 M Z22
Brand: Kärcher
SKU: 1.573-521.0
Rating: 0.0 (0 reviews)

This device requires instruction

Part number: 1.573-521.0

Suitable for use in ATEX zone 22
Wear-free side channel blower, user-friendly set-down mechanism

Make an enquiry

Technical data

Number of current phases (Ph)	3
Voltage (V)	400
Frequency (Hz)	50
Air flow (l/s / m³/h)	93 / 336
Vacuum (mbar / kPa)	240 / 24
Container capacity (l)	60
Rated input power (kW)	3
Vacuuming type	Electric
Sound pressure level (dB(A))	79
Cable length (m)	7.5
Main filter dust class	M
Filter area for main filter (m²)	2
Weight without accessories (kg)	102
Weight incl. packaging (kg)	102.8
Dimensions (L × W × H) (mm)	1040 x 680 x 1840

Equipment

Accessories included with machine: no

Machine with certified explosion protection.

Recommended maximum duration of use in hours/day.

Product information and benefits

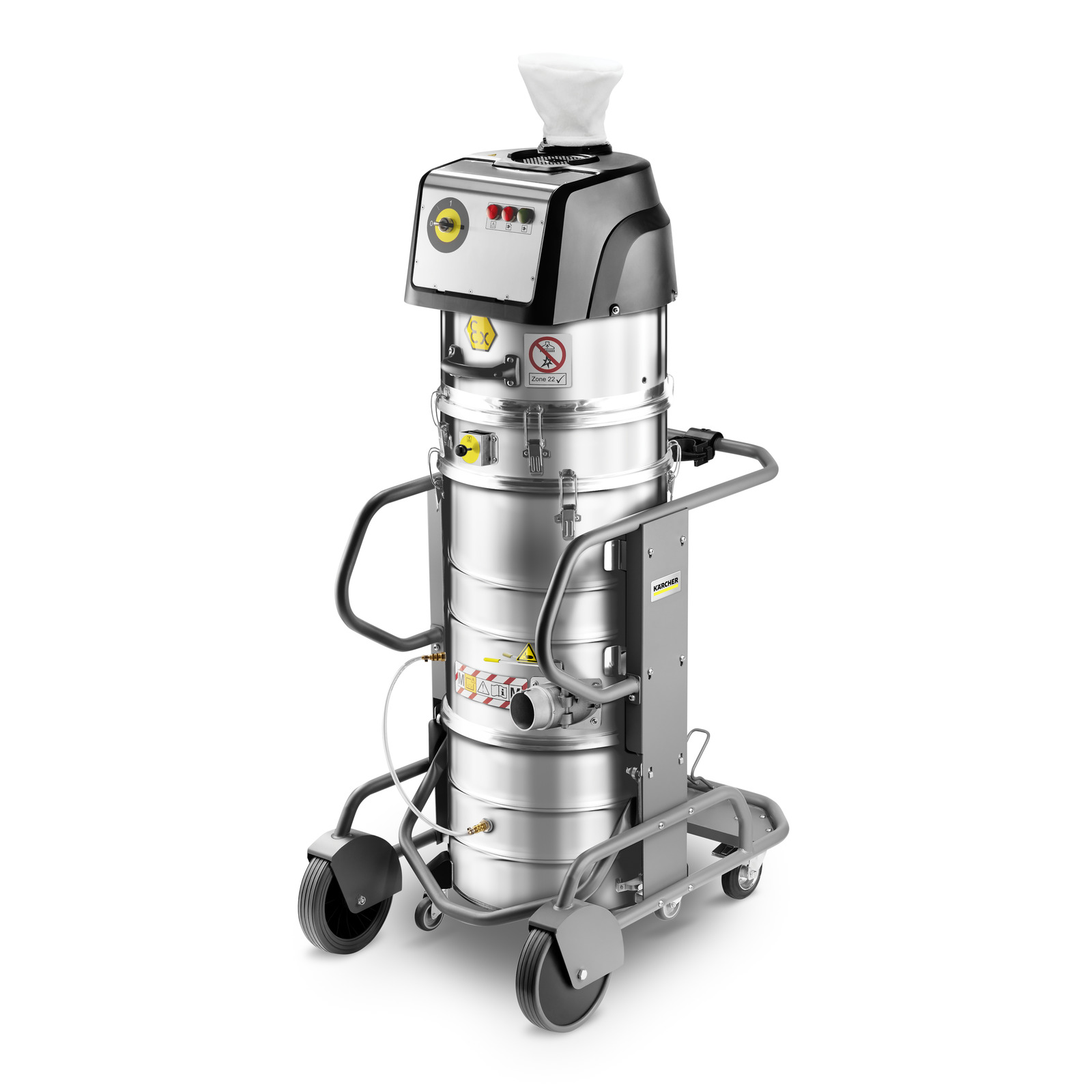

Designed for the removal of fine, hazardous, and explosive dusts in ATEX Zone 22: The IVM 60/30 M Z22 mid-class industrial vacuum cleaner is built for continuous three-phase industrial use. The device features a steel housing, a stainless steel body and container, and an M-class star filter.

Certified for ATEX Zone 22

Explosion-proof industrial vacuum for safe vacuuming in ATEX Zone 22.

Dust class M

Complete device certified according to DIN EN 60335-2-69 for dust class M.

Wear-resistant side channel compressor

With 3 kW power and soft start for vacuuming large quantities of dust and solids. For strong suction power and service life of at least 20,000 hours. Suitable for multiple shift operation and/or with multiple suction points.

Manual pull-and-clean filter cleaning

Filter is cleaned in a single step during operation. Low-wear dedusting by means of air reversal.

Equipped with extra-large star filter

For safely vacuuming solids and dusts up to dust class M. Also suitable for large quantities of dust.
