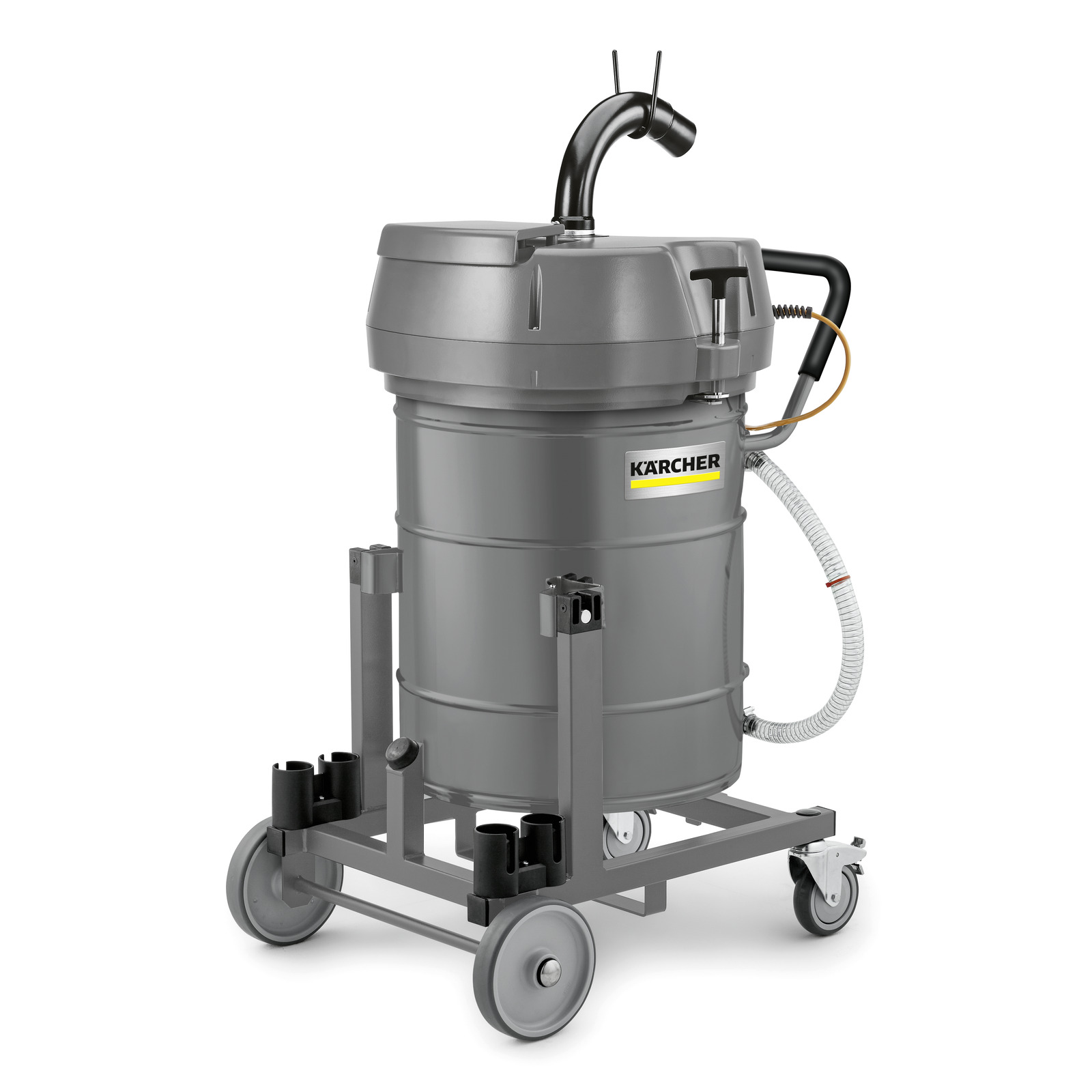

Kärcher industrial vacuum cleaner with grey cylindrical body on a wheeled frame, featuring a black hose attachment.

Industrial vacuum

IVR-L 100/24-2 Tc

This device requires instruction

Part number: 9.987-885.0

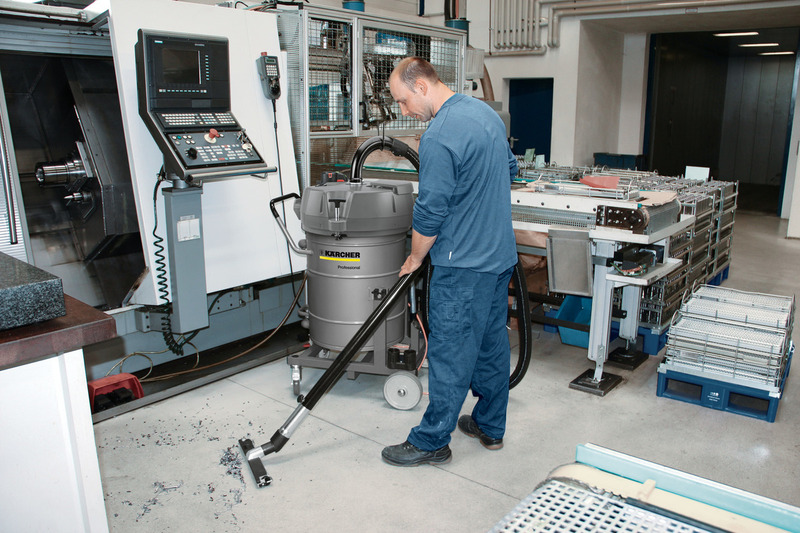

The IVR-L 100/24-2 Tc is the basic version of all IVR-L 100 Tc variants. The perfect machine for vacuuming and separating cutting fluids and shavings in the metal processing industry.

Make an enquiry

Technical data

Power supply (Ph / V / Hz)	1 / 220 - 240 / 50 - 60
Air flow (l/s / m³/h)	148 / 532
Vacuum (mbar / kPa)	230 / 23
Container capacity (l)	100
Container material	Steel
Rated input power (kW)	2.4
Vacuuming type	Electric
Main filter dust class	L
Filter area for main filter (m²)	0.45
Weight without accessories (kg)	50
Weight (with accessories) (kg)	50
Weight incl. packaging (kg)	50
Dimensions (L × W × H) (mm)	640 x 620 x 1060

Equipment

Accessories included with machine: no

Recommended maximum duration of use in hours/day.

Product information and benefits

The compact IVR-L 100/24-2 Tc is a solid, Ringler type industrial vacuum cleaner with tilting chassis and 100-litre collecting container. This makes the vacuum ideally suited for intake of large quantities of liquids and/or solids such as shavings (as dust-free as possible). The solids can be easily separated from the liquids using the optional swarf basket. Vacuuming around the entire machine without annoying tangling of the suction hose is easy thanks to the 360° rotatable hose connection on the suction head. The current filling level is always visible on the drainage pipe. Drainage is carried out either by the drainage pipe of using the tilting chassis. The robust design, oil-resistant castors and oil-resistant power cord ensure a long service life – even in the toughest of industrial use. The robust construction also allows the machine to be picked up with a forklift.

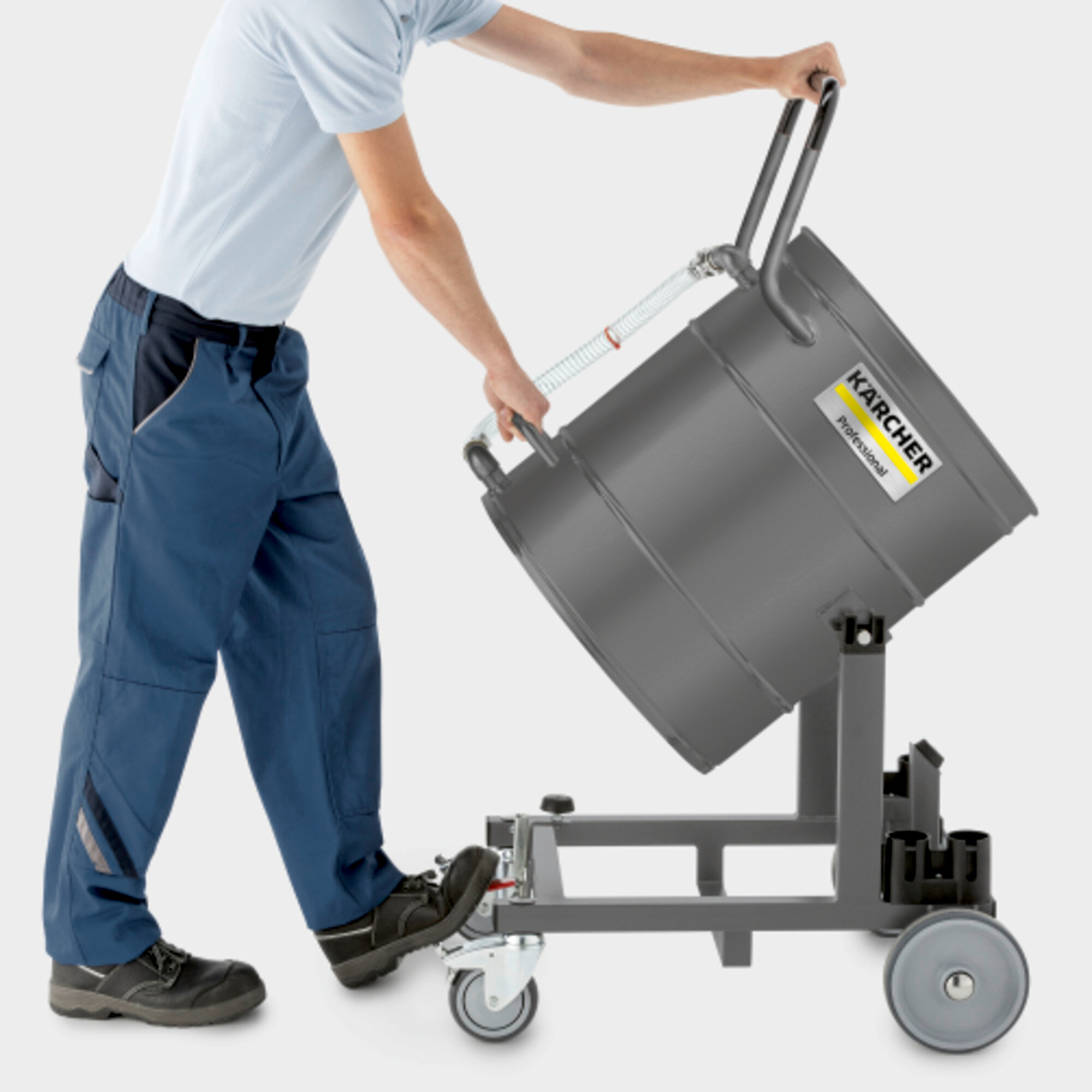

Ergonomic tilting chassis

Sophisticated system for safe, manual, effortless emptying. Frame system enables ergonomic tilted emptying using the roll-off mechanism. Quick and easy emptying of the container: just tip backwards and you're done!

High robustness, flexibility and modularity

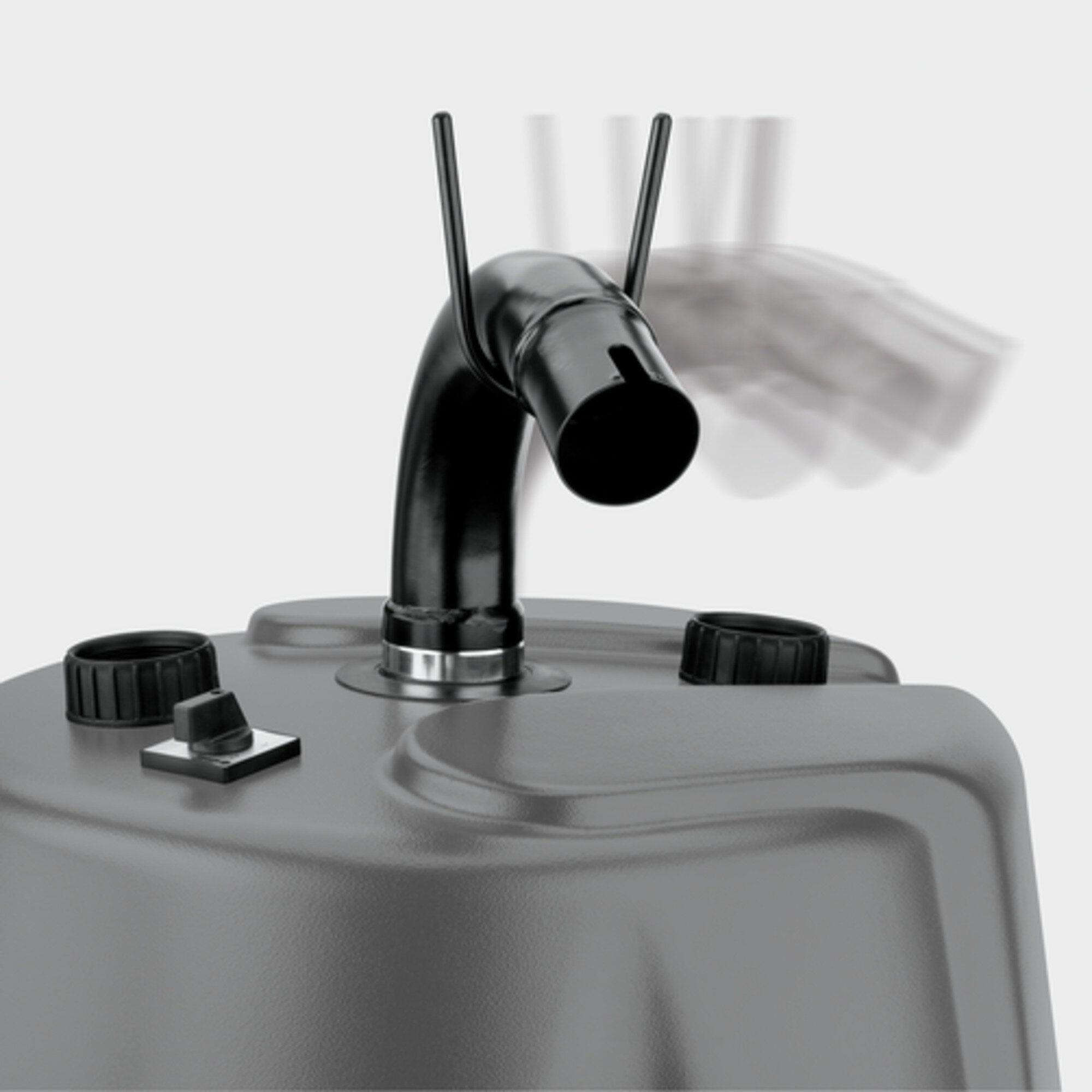

Machine and chassis very robust and equipped with high wall thicknesses. Rotatable hose connection with up to 360° rotatable pipe bend. Optionally available with overfill protection, strainer or accessories holder.

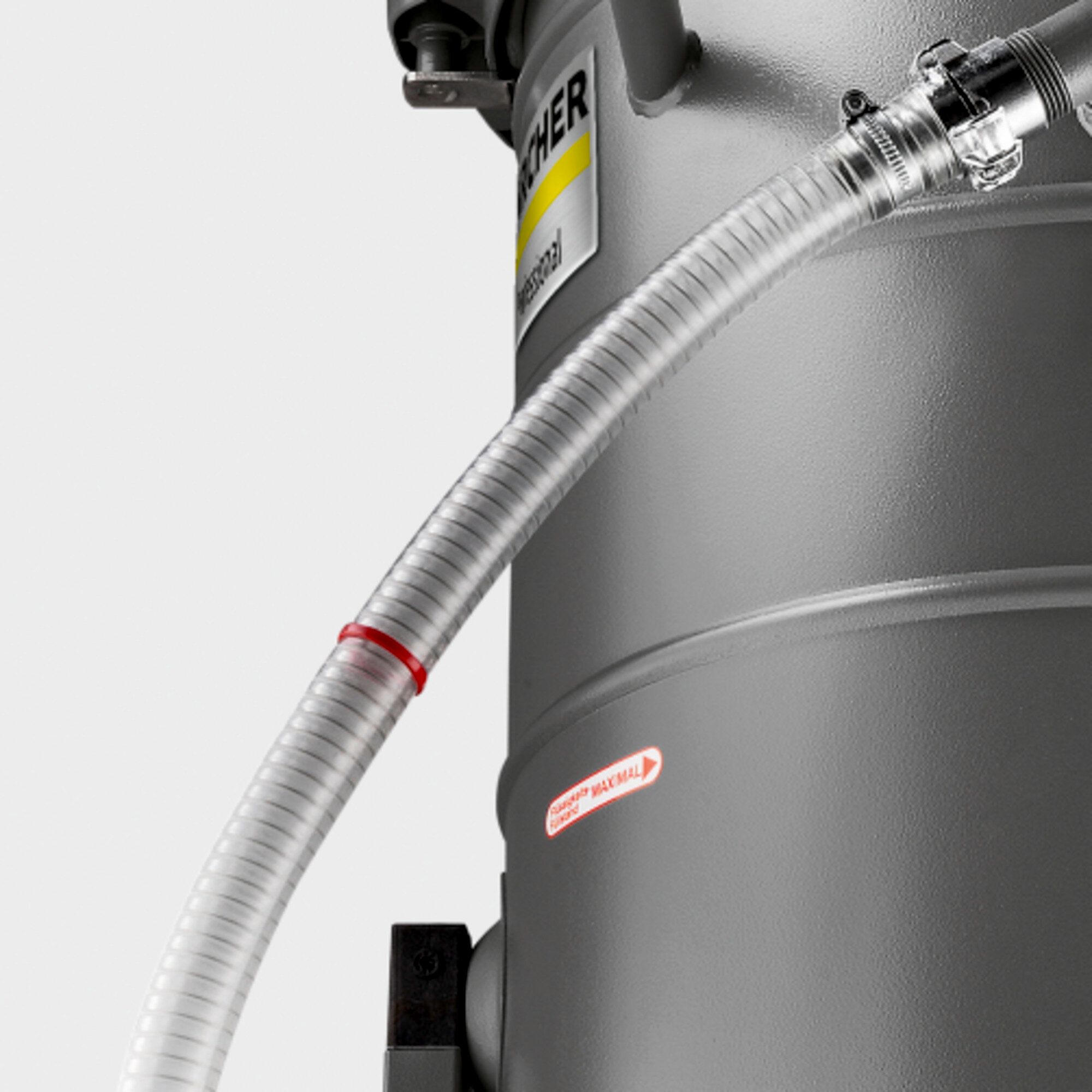

Visual filling level indicator

Transparent hose for checking the amount of fluid absorbed. The hose is also used for easy emptying.

Fitted with two very quiet fan motors

For powerful suction power and optimum cleaning performance. Fans can be switched on separately for individual suction power as required. Very quiet drive head ensures that the cooling air is blown out evenly.

IVR-L 100/24-2 Tc

Technical data

Product information and benefits

Ergonomic tilting chassis

High robustness, flexibility and modularity

Visual filling level indicator

Fitted with two very quiet fan motors

Equipped with compact surface filter of dust class L
