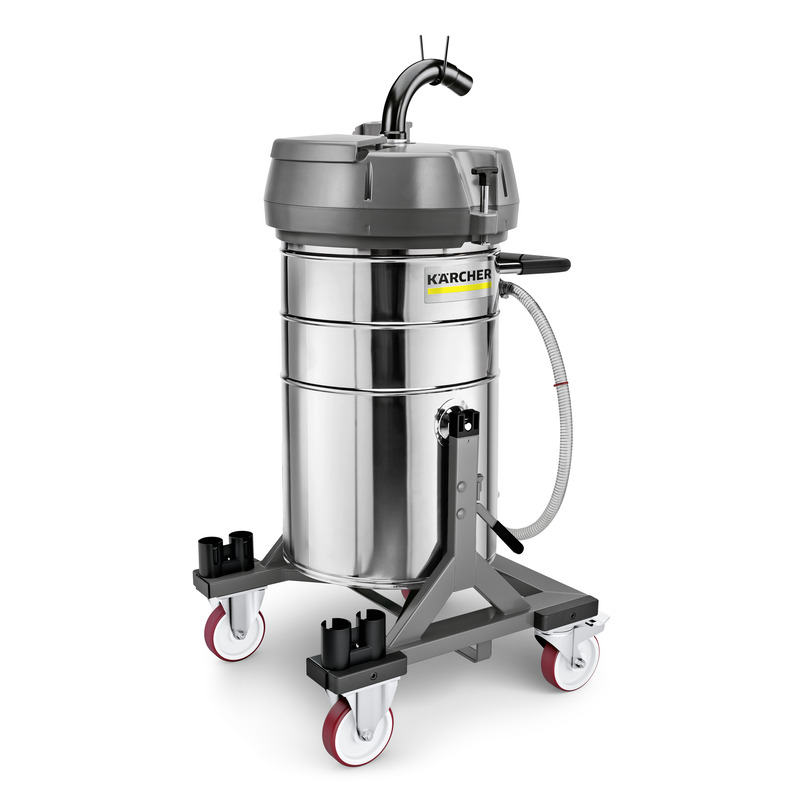

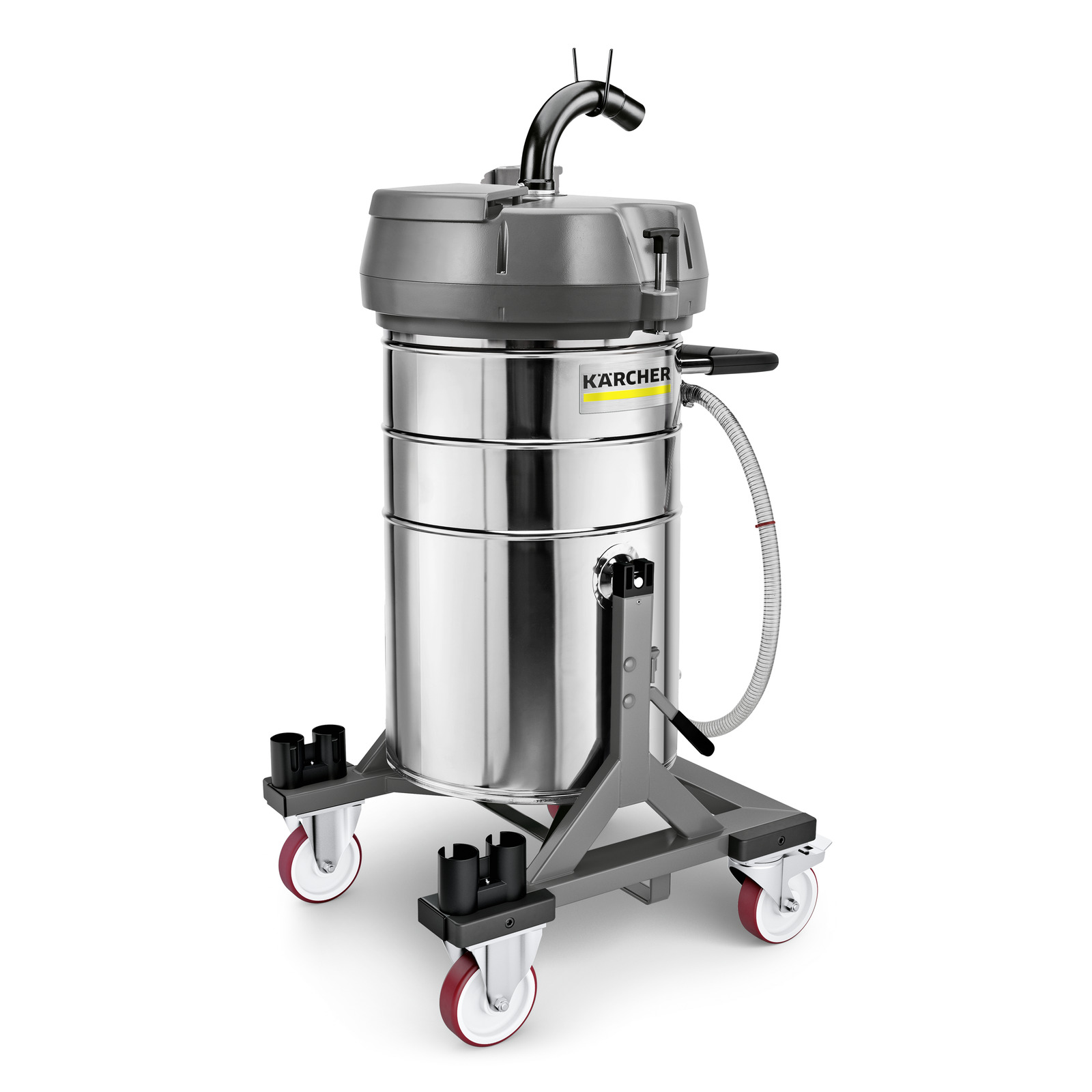

Industrial vacuum

IVR-L 120/24-2 Tc Me Dp

Part number: 9.987-890.0

The IVR-L 120/24-2 Tc Me Dp oil vacuum cleaner with 120-litre container and autonomous drum pump is ideal for vacuuming, separating and returning cooling or drilling oils containing solids such as metal shavings.

Make an enquiry

Technical data

Number of current phases (Ph)	1
Voltage (V)	220 240
Frequency (Hz)	50 60
Air flow (l/s / m³/h)	148 / 532
Vacuum (mbar / kPa)	235 / 23
Container capacity (l)	120
Container material	Stainless steel
Rated input power (kW)	2.4
Vacuuming type	Electric
Main filter dust class	L
Filter area for main filter (m²)	0.45
Weight without accessories (kg)	72
Weight (with accessories) (kg)	72
Weight incl. packaging (kg)	72
Dimensions (L × W × H) (mm)	745 x 710 x 1420

Equipment

Accessories included with machine: no
Barrel pump function

Recommended maximum duration of use in hours/day.

Product information and benefits

The IVR-L 120/24-2 Tc Me Dp oil vacuum cleaner is a compact industrial vacuum with a tilting chassis and 120-litre stainless steel container. The machine can vacuum both large quantities of liquids and virtually all dust-free solids (e.g. swarf). The solids can be easily separated from the vacuumed liquids thanks to the optional swarf basket. The IVR-L 120/24-2 Tc Me Dp is highly versatile due to its stainless steel construction. Even corrosive media can be vacuumed easily. The 360° rotatable hose connection on the suction head ensures that the suction hose does not get tangled, thereby increasing flexibility. The current filling level is always visible on the drainage pipe. An autonomous drum pump efficiently returns most of the vacuumed liquid. The robust design, including oil-resistant castors and power cord, ensures a long service lifetime even in the toughest industrial environments. It also allows the machine to be lifted by forklift truck.

Ergonomic tilting chassis

Sophisticated system for safe, manual, effortless emptying. Frame system enables ergonomic tilted emptying using the roll-off mechanism. Quick and easy emptying of the container: just tip backwards and you're done!

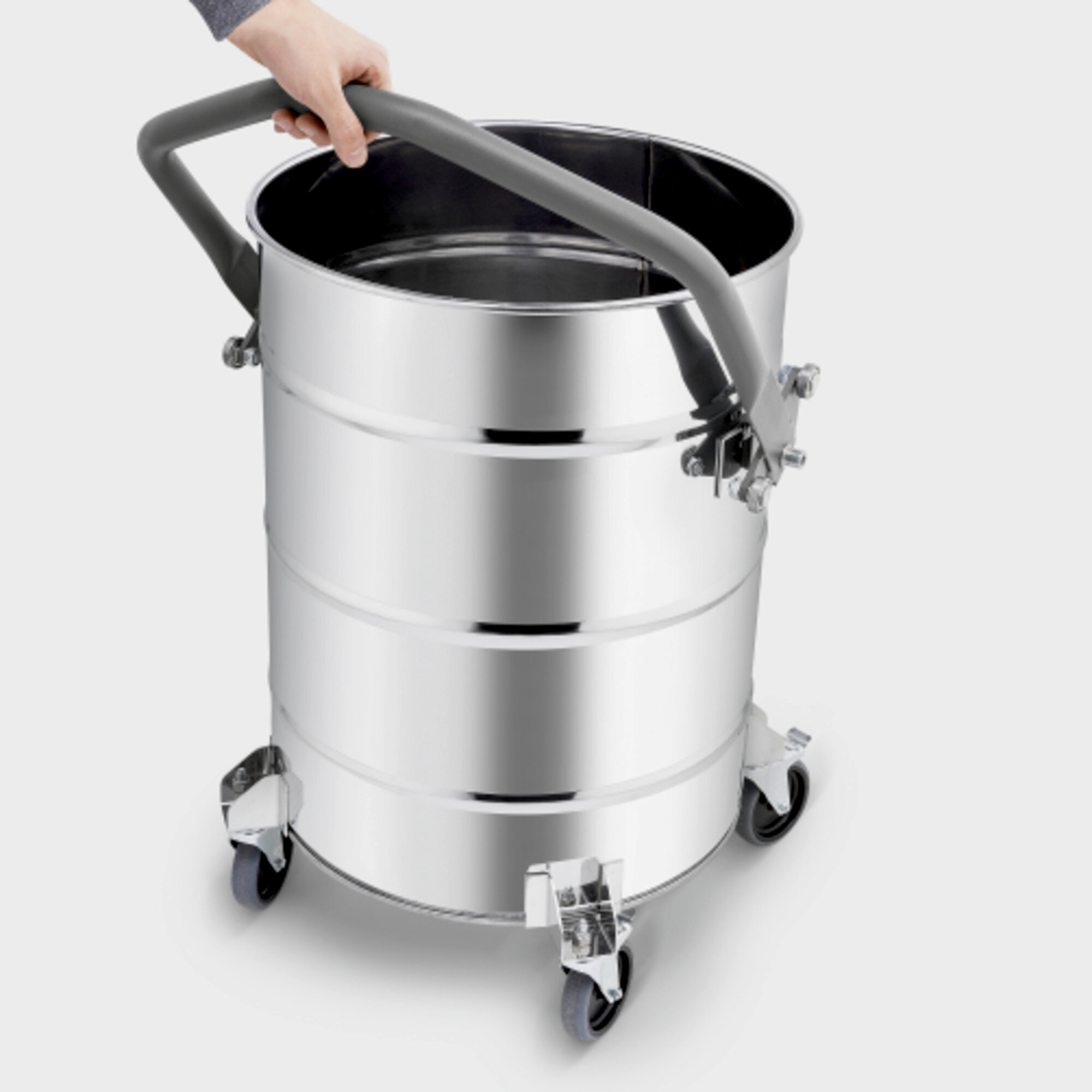

High-quality stainless steel collection container

Very easy to clean. Suitable for corrosive suction material. Transparent hose as filling level indicator and for draining liquids.

Barrel pump function

An autonomous barrel pump significantly increases the ability for vacuumed matter to be returned. Transparent hose for checking the amount of fluid absorbed.

High robustness, flexibility and modularity

Machine and chassis very robust and equipped with high wall thicknesses. Rotatable hose connection with up to 360° rotatable pipe bend. Optionally available with overfill protection, strainer or accessories holder.

Fitted with two very quiet fan motors

For powerful suction power and optimum cleaning performance. Fans can be switched on separately for individual suction power as required. Very quiet drive head ensures that the cooling air is blown out evenly.
