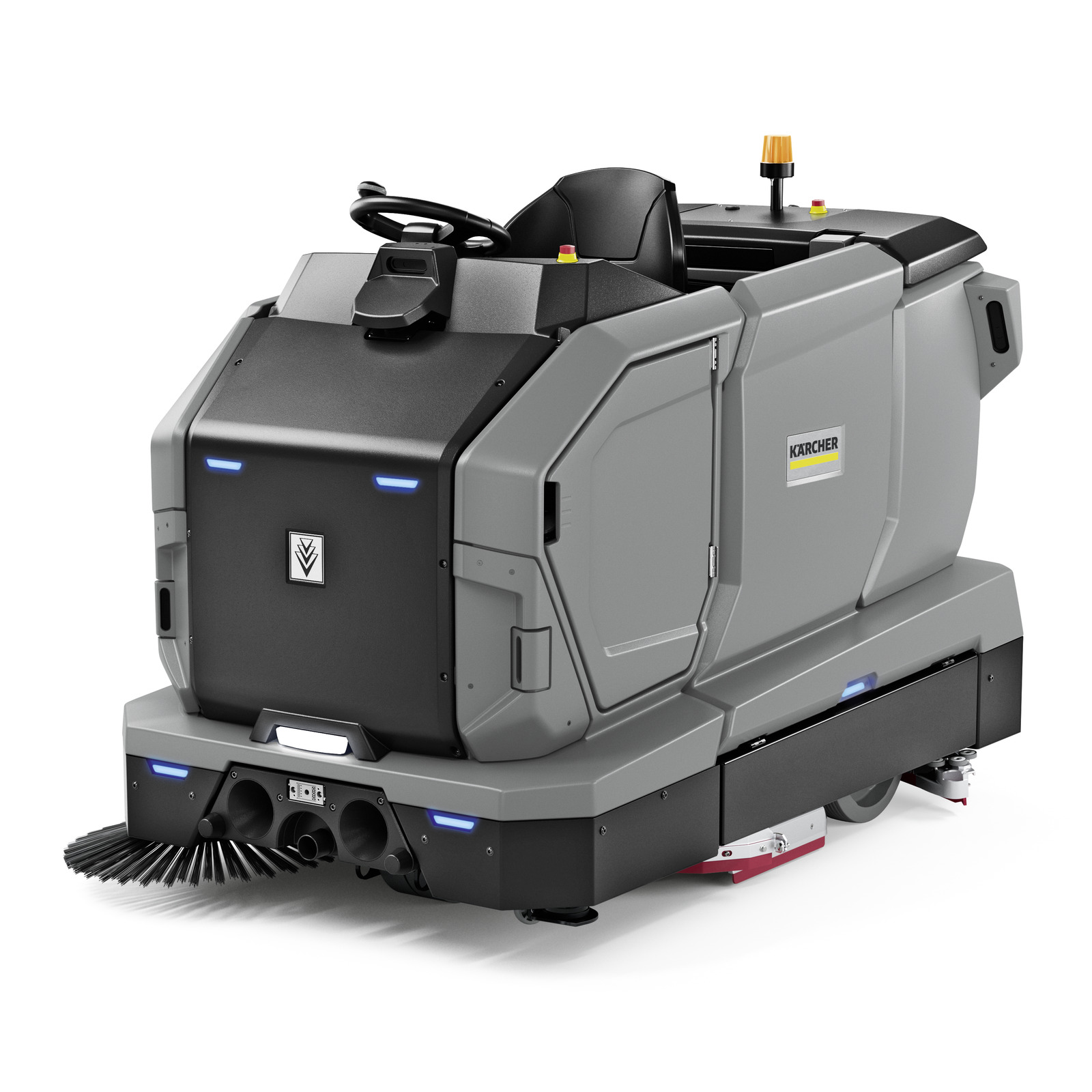

Kärcher ride-on scrubber dryer with steering wheel, grey body, black seat, and orange light on top.

Scrubber drier

KIRA BR 200

This device requires instruction

Part number: 1.533-013.0

The KIRA BR 200 efficiently cleans large areas. With roller brushes ideal for textured and uneven floors – intelligent, efficient and powerful in every application.

Make an enquiry

Technical data

Drive type	Battery
Rated input power (W)	2250
Traction motor power (W)	1300
Turbine capacity (W)	552
Motor rating of brush motor (W)	1500
Working width, brushes (mm)	850
Brush contact pressure (g/cm²)	215
Brush rotational speed (rpm)	380 - 950
Working width, vacuuming (mm)	1100
Fresh/dirty water tank (l)	200 / 220
Detergent tank (l)	10
Sweeper drawer volume (l)	9
Theoretical area performance, autonomous (m²/h)	max. 4590
Cleaning performance per tank filling (approx.) (m²)	7143
Number of current phases (Ph)	1
Voltage (V)	100 - 240
Frequency (Hz)	50 - 60
Number of batteries	4
Battery type	Li-ion
Battery voltage/capacity (V / Ah)	24 / 320
Battery run time (h)	4
Battery charging time (h)	4.7
Autonomous speed (km/h)	max. 5.4
Sound pressure level (dB(A))	64.5
Autonomous aisle turning width (m)	2.8
Climbing ability (%)	6
Autonomous clearance width (mm)	1350
Software updates available until	2033-01-01
Weight without accessories (kg)	630
Weight (with accessories) (kg)	630
Weight incl. packaging (kg)	632.3
Dimensions (L × W × H) (mm)	1944 x 1138 x 1471

Scope of supply

Battery and battery charger
Squeegee included
Roller brush: 2 Piece(s)
Side brush
Flashing beacon

Equipment

Battery
Type of suction lips: Linatex®
DOSE
with speed-dependent water dosing
Large, high-definition touch display
Docking-enabled
Roller shutter control prepared
autonomous cleaning
Automatic pre-sweeping
with manual drive mode
Easy and intuitive set-up without the need for expert knowledge
High-performance sensors
obstacle and crash detection
autonomous swerving upon meeting obstacles
Safety certified for public areas
creation of cleaning reports
Notifications on mobile devices
Schedule function
Auto Fill
Coloured lights to display the robot's behaviour and operating status
Kärcher colour and operating concept
electrical and mechanical float switch
with teach-in mode (Teach and Repeat)
Brush type: Round brush
Variable contact pressure
robust aluminium die-cast suction bar
Underpressure sensor for detecting blockages
Detection of empty detergent tank
operation using app
Communication interface: VDA 5050
Detergent dosing unit

picto docking station oth 01 CI15 284x284 CMYK

picto automatic dosing CMYK oth 01 EN CI20

picto multisensor collision avoidance oth 01 CI20284x284

picto roller brush head CMYK oth 01 EN CI20

picto mulitsensor system oth01 CI15284x284

picto speed dependent water dosage oth 01 CI20284x284

picto 5 years warranty CMYK oth 01 EN CI15

picto interim charge CMYK oth 01 EN CI20

picto full efficiency CMYK oth 01 EN CI20

picto high productivity CMYK oth 01 EN CI20

Product information and benefits

The KIRA BR 200 combines intelligent technology with high area performance. Thanks to its large working width and high driving speed, it cleans efficiently and thoroughly – even on textured and uneven floors. Pre-sweeping and scrubbing are carried out in one step thanks to the time-saving roller brush technique. A side brush ensures clean results right up to the edges. The powerful multi-sensor system with 360° all-round visibility reliably recognises obstacles, overhangs and glass surfaces for safe navigation. The separately available docking station delivers maximum autonomy by automating fresh water filling, dirty water emptying and battery charging. The calendar function provides a flexible and adaptive way to plan cleaning tasks in advance. The KIRA BR 200 can operate fully autonomously, but can also be controlled manually as a ride-on machine if required. It is networked at all times via the KIRA Equipment Manager and the KIRA Robots App and can be easily integrated into existing processes.

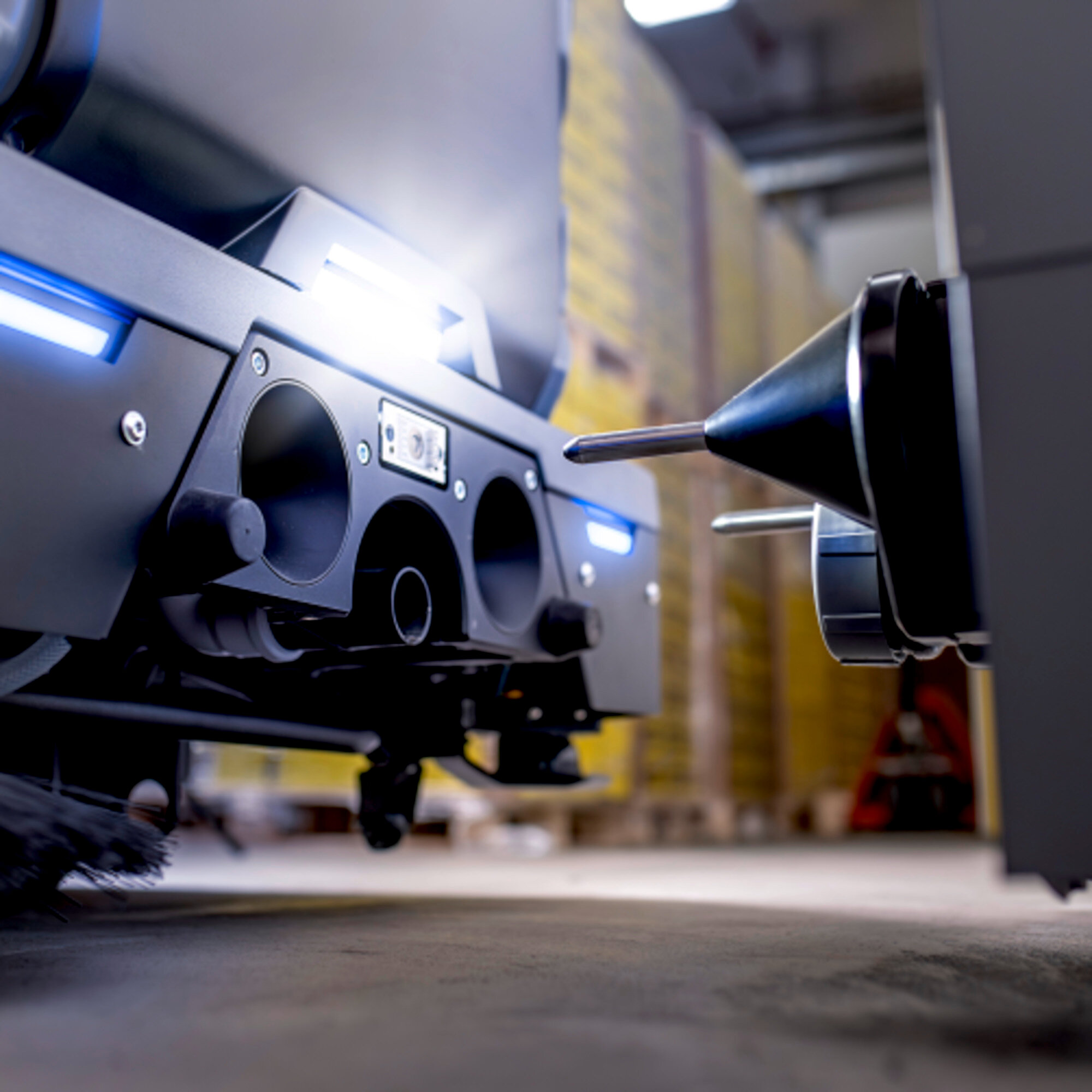

Docking station (optional)

Enables fully autonomous operation. Resources can be autonomously topped up by a robot (refilling the fresh water, draining the dirty water, rinsing the tank, charging the battery). Optional accessory, the robot can also be operated without the docking station.

Obstacle guide

Reliably detects unknown obstacles. Independently plans alternative routes. Autonomous driving manoeuvres on demand.

Infrastructure connection

The KIRA BR 200 can be integrated seamlessly into existing infrastructures. Roller shutter and VDA 5050 connections enable efficient and flexible collaboration with other systems and machines for a high degree of automation and process optimisation.

Easy operation

Clearly organised, safe control of all device functions via the touch display. Step-by-step user guidance for easy, intuitive operation. Simple to set up and easy to use the robot without expert knowledge.

Roller brush technique

Ideal for heavily soiled surfaces thanks to the high contact pressure of the self-cleaning rollers. Low water consumption. Pre-sweeping and scrubbing in a single step.

Integrated side brush

Enables thorough cleaning right up to the edge. Transports dirt directly into the cleaning channel. Reduces manual rework to a minimum.

Reliable navigation thanks to multi-sensor system

Powerful sensors and 360° all-round visibility. Reliable detection of overhangs and glass. Sensor monitoring of side areas.

Safety-certified

Safe and contactless detection of obstacles, falls and people. Safety-certified as per CSA_22.2 No. 336-17 and IEC 63327. Suitable for operation in high-traffic areas.

A wide range of application possibilities

Can be operated autonomously or manually. Enables manual spot cleaning. Allows for several user profiles to be set with individual levels of authorisation.

Connectivity

Direct access to KIRA Equipment Manager and the KIRA Robots app. Sends notifications and status messages to mobile devices. Includes cleaning reports, machine status, faults and more.

Product safety and documents

Manufacturer: Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Strasse 28-40, 71364 Winnenden, Germany
Tel. +49 7195 / 14-0 I Fax +49 7195 / 14-2212
E-mail: info@karcher.com

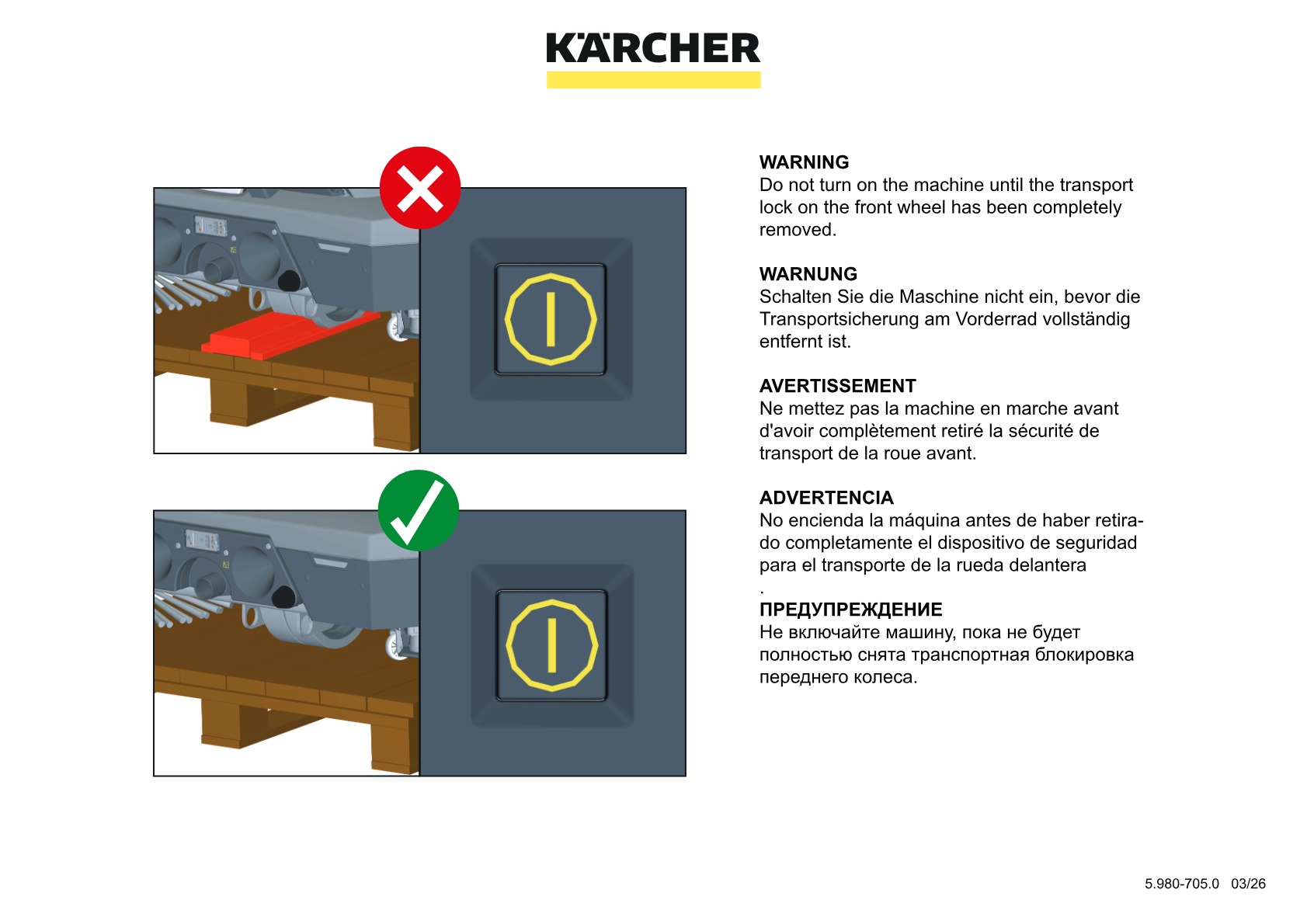

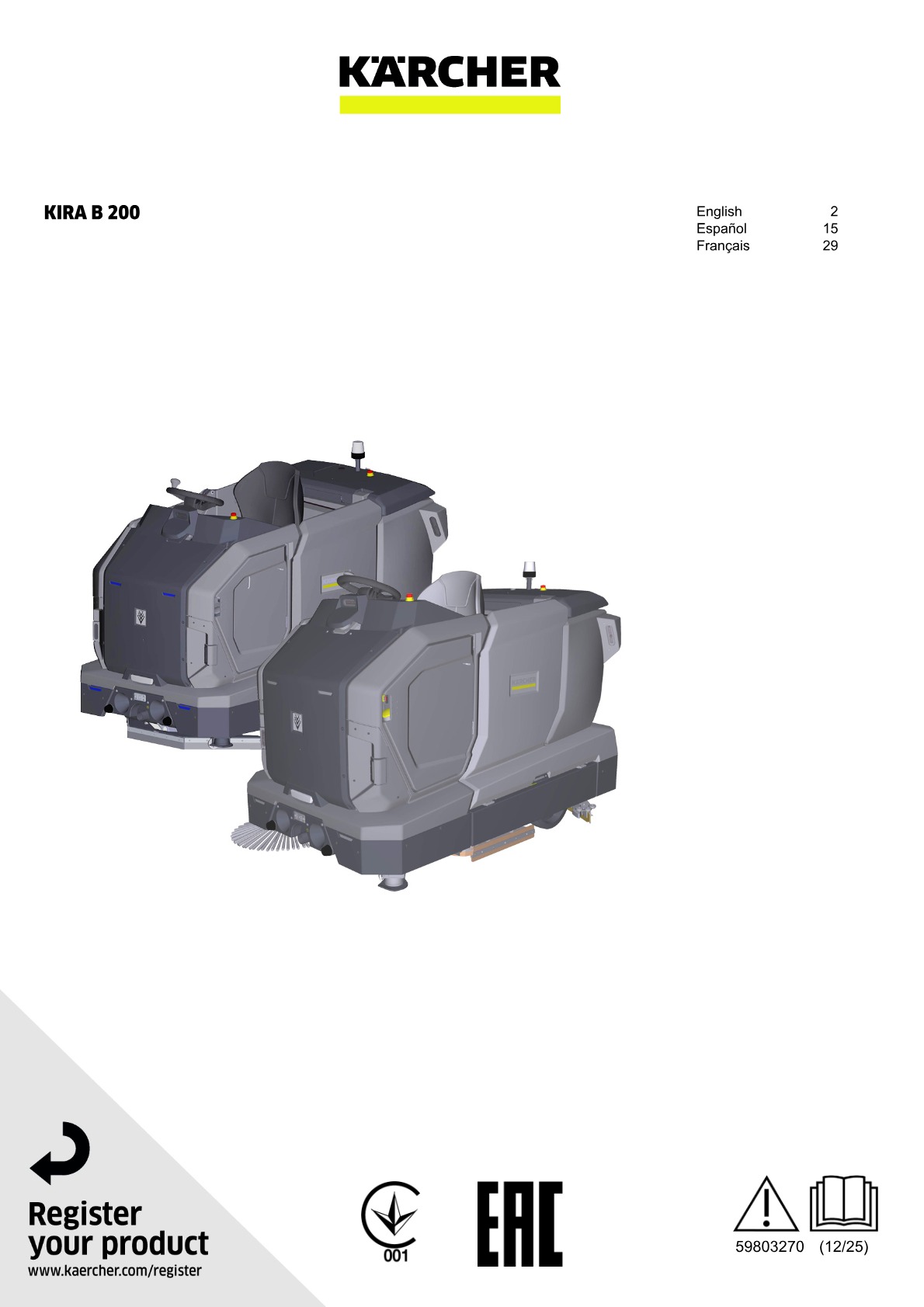

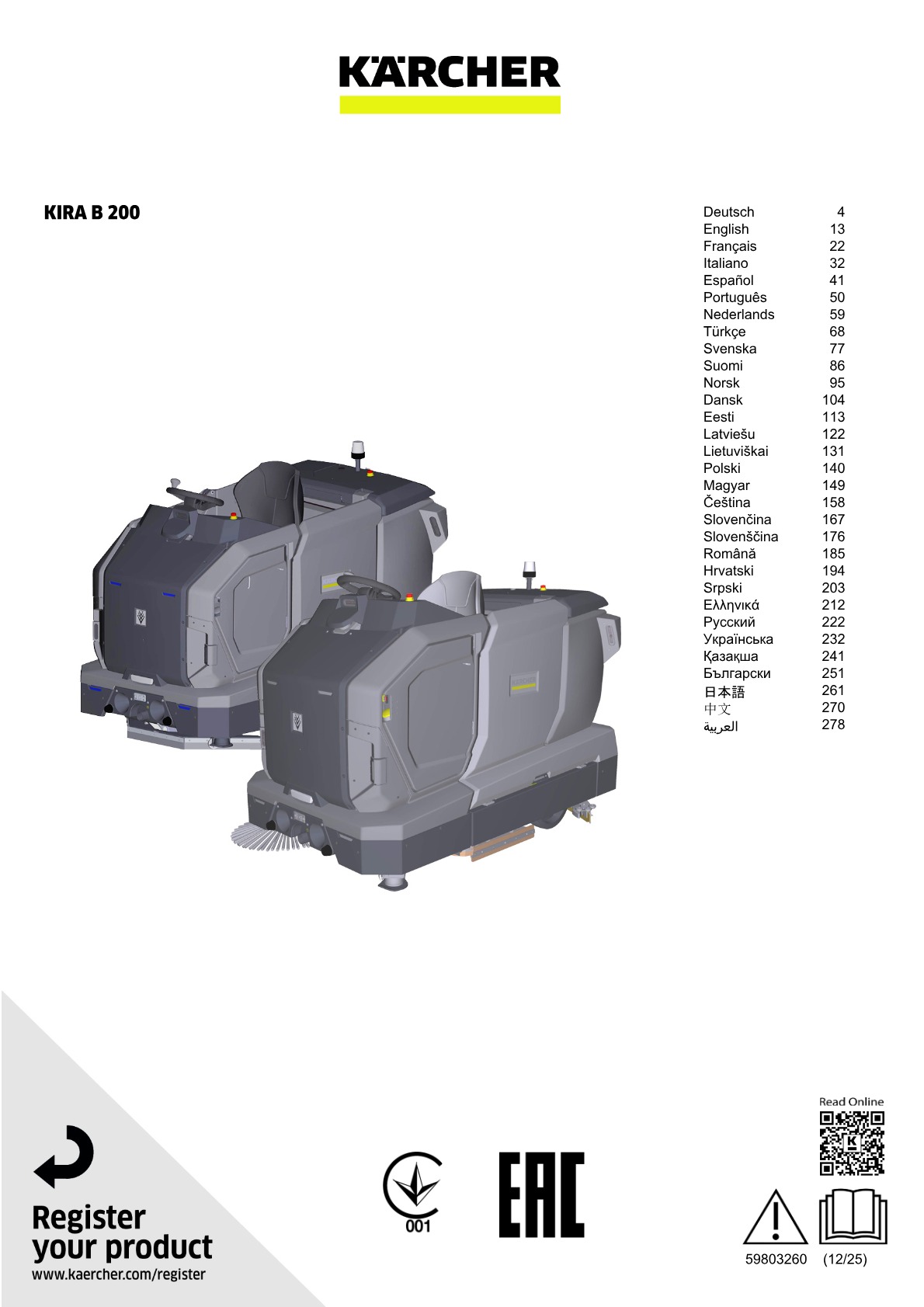

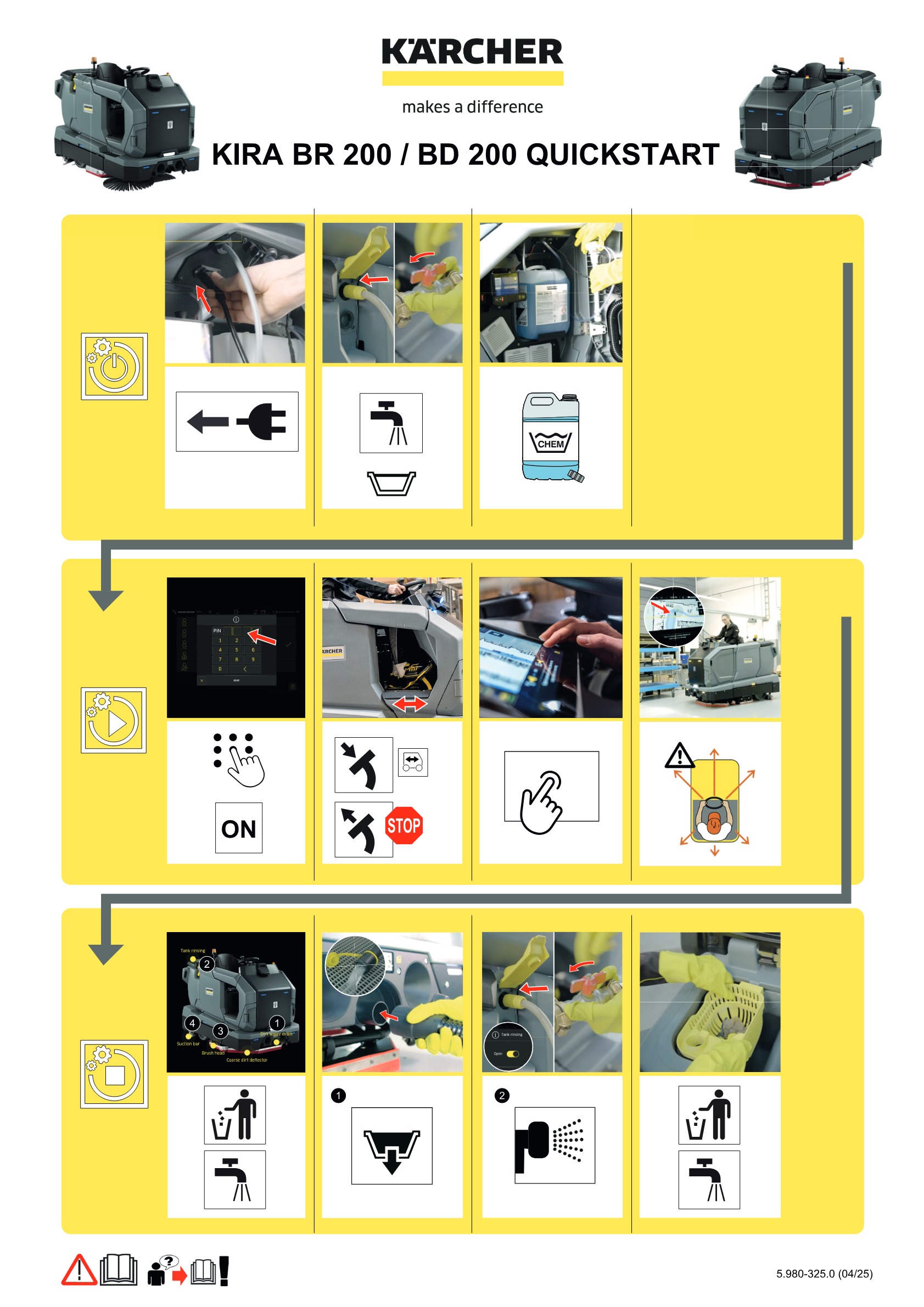

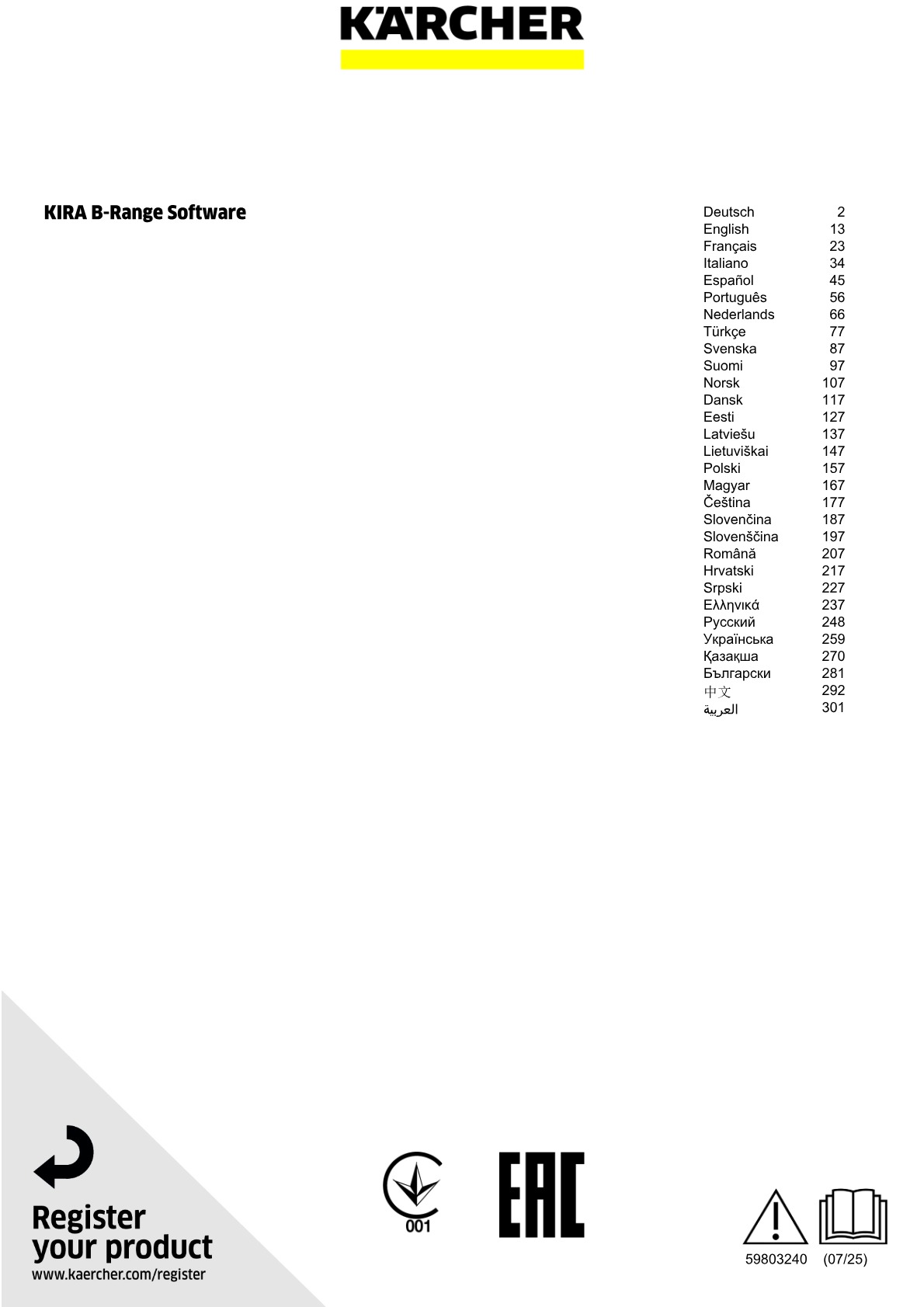

Manual

Read the manual online easily

Read online

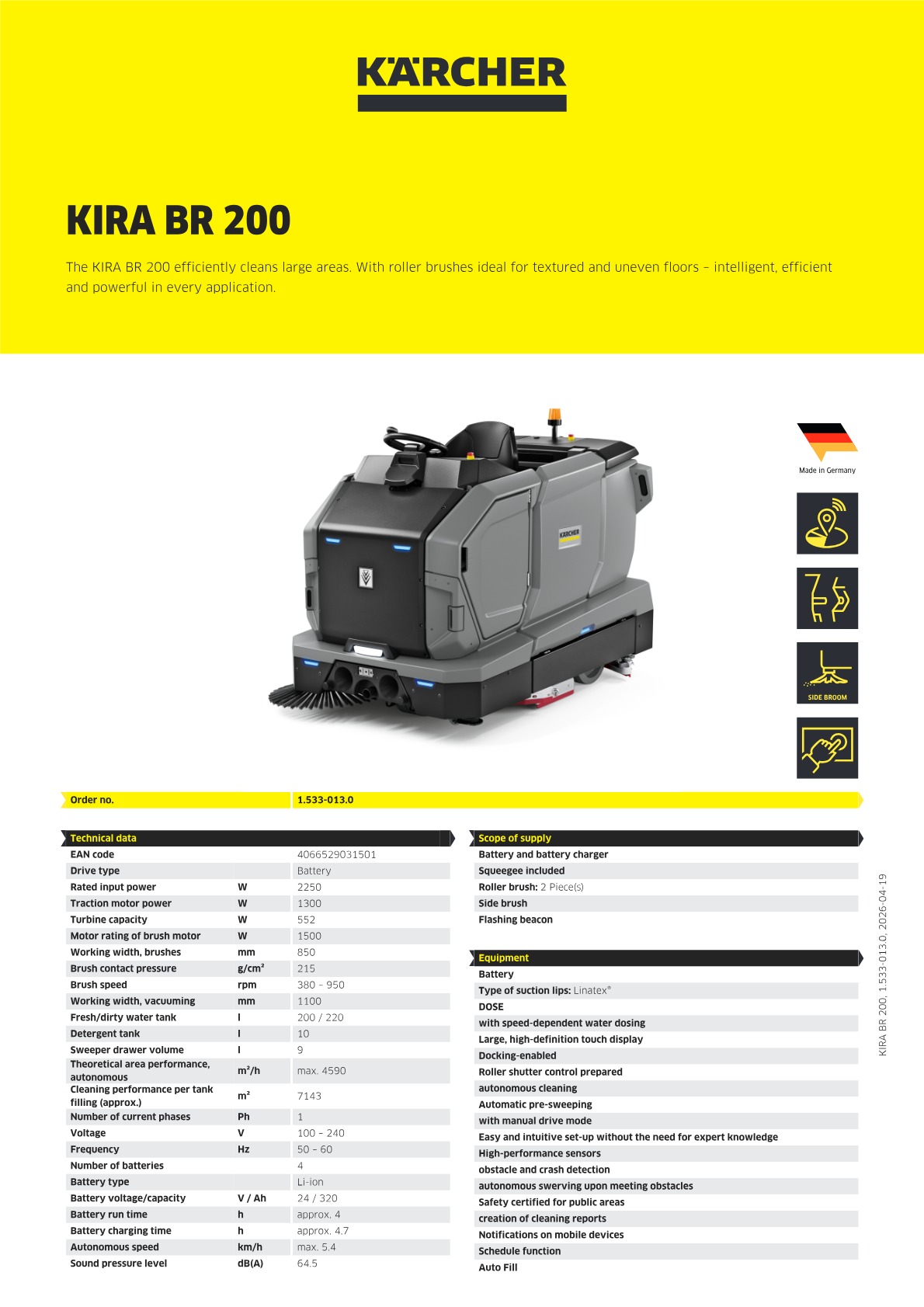

Product information
