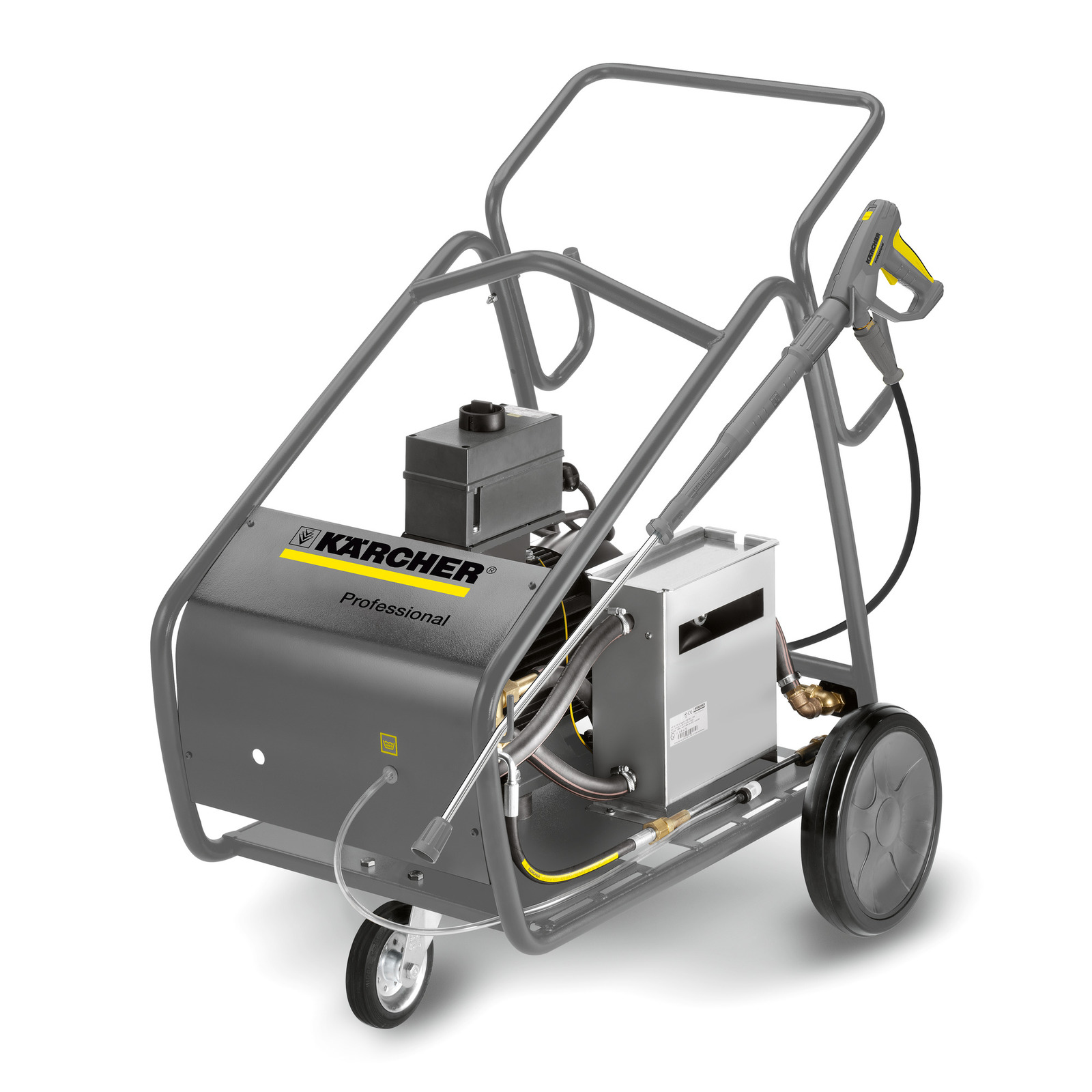

Kärcher professional high-pressure cleaner with grey frame, wheels, and attached spray gun.

Awards and exclusive range

High pressure cleaner

HD 10/16-4 Cage Ex (ATEX)

This device requires instruction

Part number: 1.353-904.0

Explosion protection Ex II 2 G Ex h IIB T3 Gb
Crankshaft pump with ceramic pistons
4-pole air-cooled electric motor

Make an enquiry

Technical data

Power supply (Ph / V / Hz)	3 / 400 / 50
Flow Rate (l/h)	1000
Water feed temperature (°C)	50
Operating pressure (bar / MPa)	160 / 16
Max. Pressure (bar / MPa)	220 / 22
Power rating (kW)	5.5
Colour	anthracite
Weight (with accessories) (kg)	122.6
Weight incl. packaging (kg)	131.2
Dimensions (L × W × H) (mm)	980 x 720 x 1100

Scope of supply

Trigger gun
High-pressure hose length: 10 m
High-pressure hose specification
Stainless steel spray lance: 1050 mm
Stainless steel spray lance, conductive: 1050 mm
Power nozzle
High pressure lance

Equipment

Pressure switch control

Recommended maximum duration of use in hours/day.

High-pressure trigger gun with zero holding force for fatigue-free operation.

Robust, long-lasting quick-release lock: five times faster than screwing.

Machine with certified explosion protection.

Product information and benefits

The HD 10/16-4 Cage Ex is designed specifically for use in potentially explosive environments.All accessories and technical features are designed to comply with explosion protection category II 2 G c T3. The electrically-conductive powder-coated frame provides robustness and enables lifting by crane, whilst all components are protected so that the surface temperature never exceeds 200°C. The machine provides water flow of 1000 litres per hour and 160 bar pressure, and the 4-pole 3-phase electric motor, crankshaft pump and ceramic pistons ensure a long service life.

Powder-coated cage frame, conductive

Robust tubular steel frame. Integrated crane attachment point. Protects the unit from damage.

Explosion-proof design

Conductive rubber tyres. Surface temperature always under 200 °C.

Powerful and durable

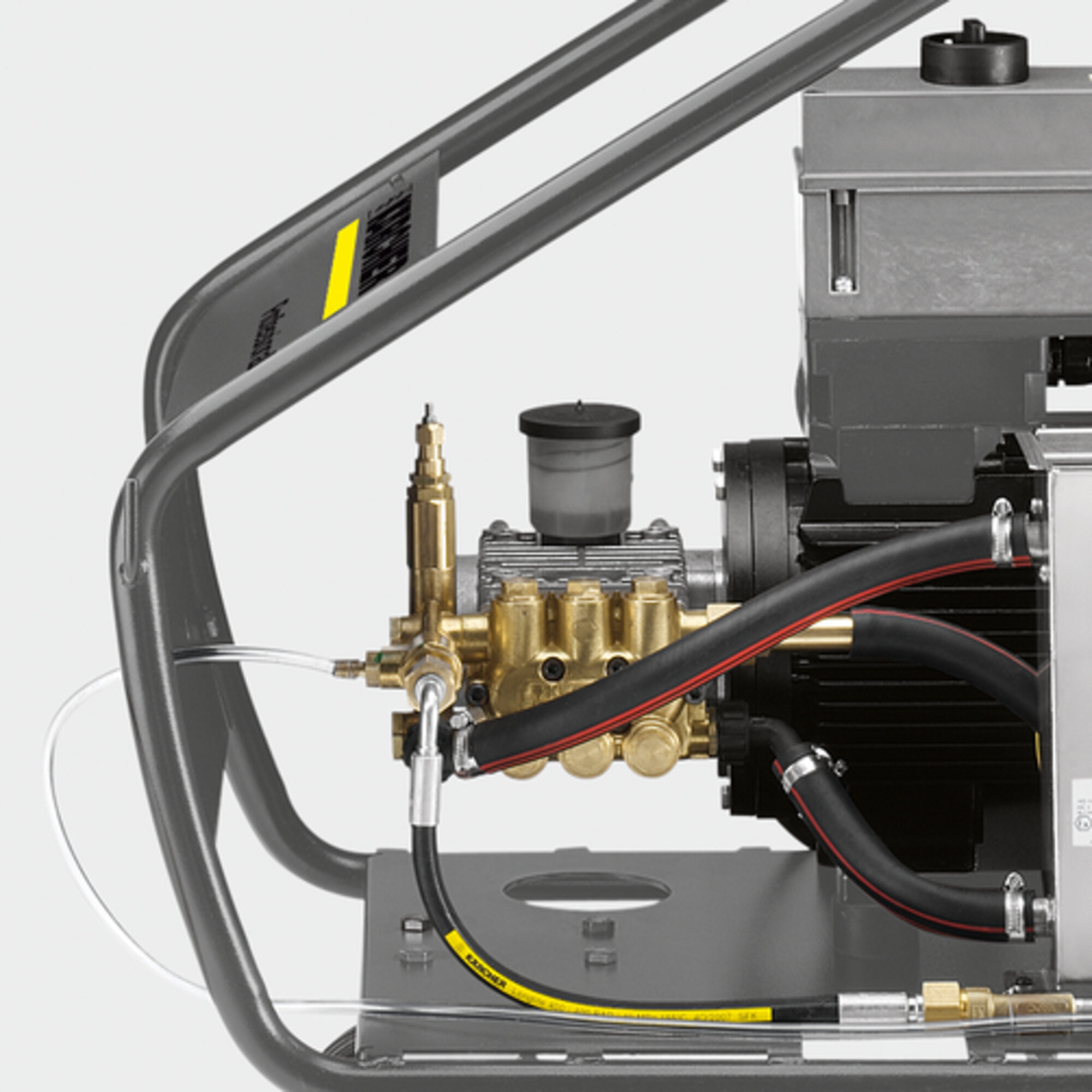

4-pole, low-speed air-cooled electric motor. Robust brass cylinder head and ceramic pistons. Reliable and durable Kärcher high-performance crankshaft pump ensures optimal pressure.

Operational safety

The fresh water filter protects the components and can be removed without tools and cleaned. Protects the pump against dry running. Cleaning agent intake system for removing stubborn dirt.
