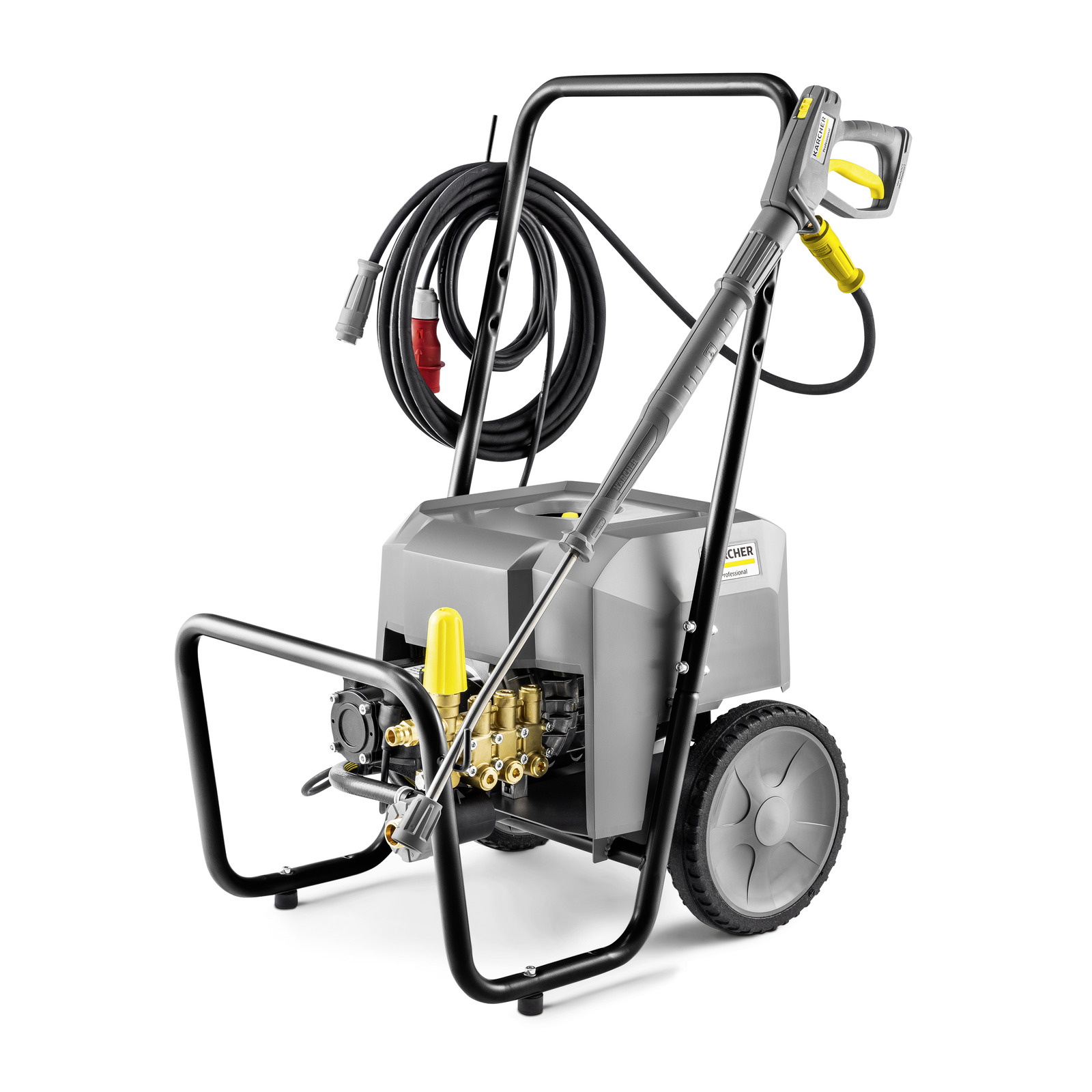

High pressure cleaner HD 10/25-4 S Classic
The robust HD 10/25-4 S Classic cold water high-pressure cleaner is made for tackling tough jobs day in day out. Super Class in every way: extreme power for reliable cleaning results.
The HD 10/25-4 S Classic cold water high-pressure cleaner has been designed for daily use in tough conditions and never fails to impress with its extreme power. It stands out from the crowd with its solid construction and its robust steel frame. It is easy and intuitive to set up, and quick and hassle-free to operate. All the important parts can be accessed quickly and easily. The Super Class high pressure cleaner is fitted with the Classic high-pressure gun for machines in the HD Classic range.It also has a premium EASY!Lock quick-release fastener. This makes it five times quicker to set up and put away, saving you time and hassle. An integrated water filter reliably protects the high pressure pump from dirt particles and contaminants, thereby extending the machine's service life. A powerful crankshaft pump and hard-wearing materials are the backbone of the high pressure cleaner: with a cylinder head made from brass and pistons with ceramic sleeves. The pressure can be adjusted as necessary on the pump. The 4-pole low-speed motor with air-water cooling system for long-lasting and reliable operation.
Features and benefits
Powerful and robust crankshaft pump with brass cylinder head and pistons with ceramic sleeves
Robust steel frame with large wheels for maximum portability
Classic accessories with EASY!Lock connections
Clear machine design
4-pole low-speed motor with air-water cooling system
Specifications
Technical data
| Current type (Ph/V/Hz) | 3 / 376 - 424 / 50 |
| Flow Rate (l/h) | 500 - 1000 |
| Water feed temperature (°C) | 60 |
| Operating pressure (bar) | 60 - 250 |
| Max. Pressure (bar/MPa) | 310 / 3.1 |
| Power rating (kW) | 8.8 |
| Power cable (m) | 5 |
| Nozzle size | 045 |
| Water feed | 1″ |
| Colour | anthracite |
| Weight (with accessories) (kg) | 68 |
| Weight incl. packaging (kg) | 75.9 |
| Dimensions (L x W x H) (mm) | 720 x 637 x 1060 |
Scope of supply
- High-pressure hose length: 10 m
- High-pressure hose specification: ID 8, 315 bar
- Spray lance: 840 mm
- Power nozzle
Equipment
- Crankshaft pump with ceramic pistons
- 4-pole three-phase motor with air and water cooling
- Pressure switch control
- Integrated fine mesh water filter
- Oil sight glass
- Brass water inlet fitting
Videos
Application areas
- Cleaning animal stables in agriculture
- Cleaning tractors, machines and implements in agriculture
- Cleaning cladding and concrete moulding in the construction sector
- Cleaning machines and equipment on the building site, such as cement mixers, scaffolding, wheel loaders, diggers or concrete pumps
- Cleaning production machinery in industry, such as in paint shops, in food production or in the manufacturing sector
- Cleaning vehicles in transport sector, such as trucks, ships, aeroplanes or buses
- Cleaning communal spaces such as public squares, driveways, fountains or car parks
