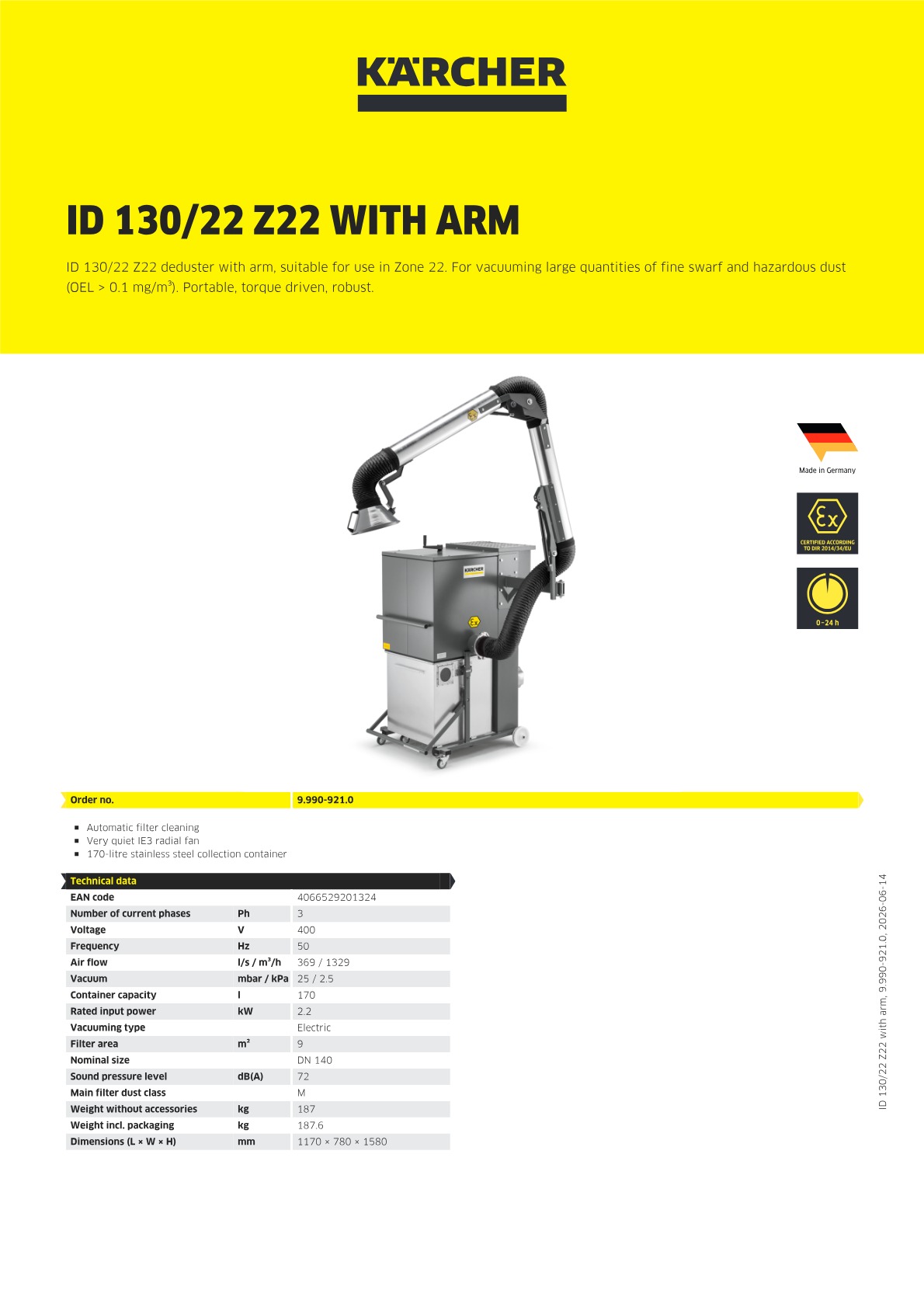

Kärcher industrial vacuum with flexible extraction arm, grey metal body, mounted on wheels.

Industrial deduster

ID 130/22 Z22 with arm

Name: ID 130/22 Z22 with arm
Brand: Kärcher
SKU: 9.990-921.0
Rating: 0.0 (0 reviews)

This device requires instruction

Part number: 9.990-921.0

Automatic filter cleaning
Very quiet IE3 radial fan
170-litre stainless steel collection container

Make an enquiry

Technical data

Product information and benefits

Designed for vacuuming large quantities of fine swarf, hazardous and general dusts (OEL > 0.1 mg/m³) and for use in Atex Zone 22 potentially explosive hazardous areas, the ID 130/22 mobile industrial deduster is ideal for tough industrial applications. The extraction arm supports itself with gas springs and has external joints that extend the working radius to a total length of 3 metres. Its powerful and energy-efficient (IE3) radial compressor with high volume flows also allows for continuous three-shift operation. The three-phase and mobile deduster with 2.2 kW rated input power has a dust class M filter system, an integrated mechanical filter shaker and a 170-litre container. The set-down trolley allows for easy and ergonomic emptying, since there’s no need to remove the drive head. A polyethylene bag with integrated fastening mechanism and pressure compensation hose at the deduster guarantees low-dust emptying and safe disposal of the suction waste.

Equipped with a durable cartridge filter

Longer service life, less maintenance effort and lower costs. Very effective filter cleaning thanks to reinforcing mesh in the filter bags.

Simple and safe emptying without removing the drive head

Set-down trolley and rolling container for ergonomic emptying.

Designed for dust class M for high occupational safety

Dust class M filter engineering for vacuuming hazardous dust.

Dust-free emptying system for hazardous materials

Dust-free emptying thanks to PE sack with integrated closing mechanism. Reliable disposal of dust in a PE bag.

Number of current phases (Ph)	3
Voltage (V)	400
Frequency (Hz)	50
Air flow (l/s / m³/h)	369 / 1329
Vacuum (mbar / kPa)	25 / 2.5
Container capacity (l)	170
Rated input power (kW)	2.2
Vacuuming type	Electric
Filter area (m²)	9
Sound pressure level (dB(A))	72
Main filter dust class	M
Weight without accessories (kg)	187
Weight incl. packaging (kg)	187.6
Dimensions (L × W × H) (mm)	1170 x 780 x 1580
