Industrial vacuum

IVM 40/12-1 H Z22

Name: IVM 40/12-1 H Z22
Brand: Kärcher
SKU: 9.990-266.0
Rating: 0.0 (0 reviews)

This device requires instruction

Part number: 9.990-266.0

Suitable for use in ATEX zone 22
Low-wear EC turbine

Make an enquiry

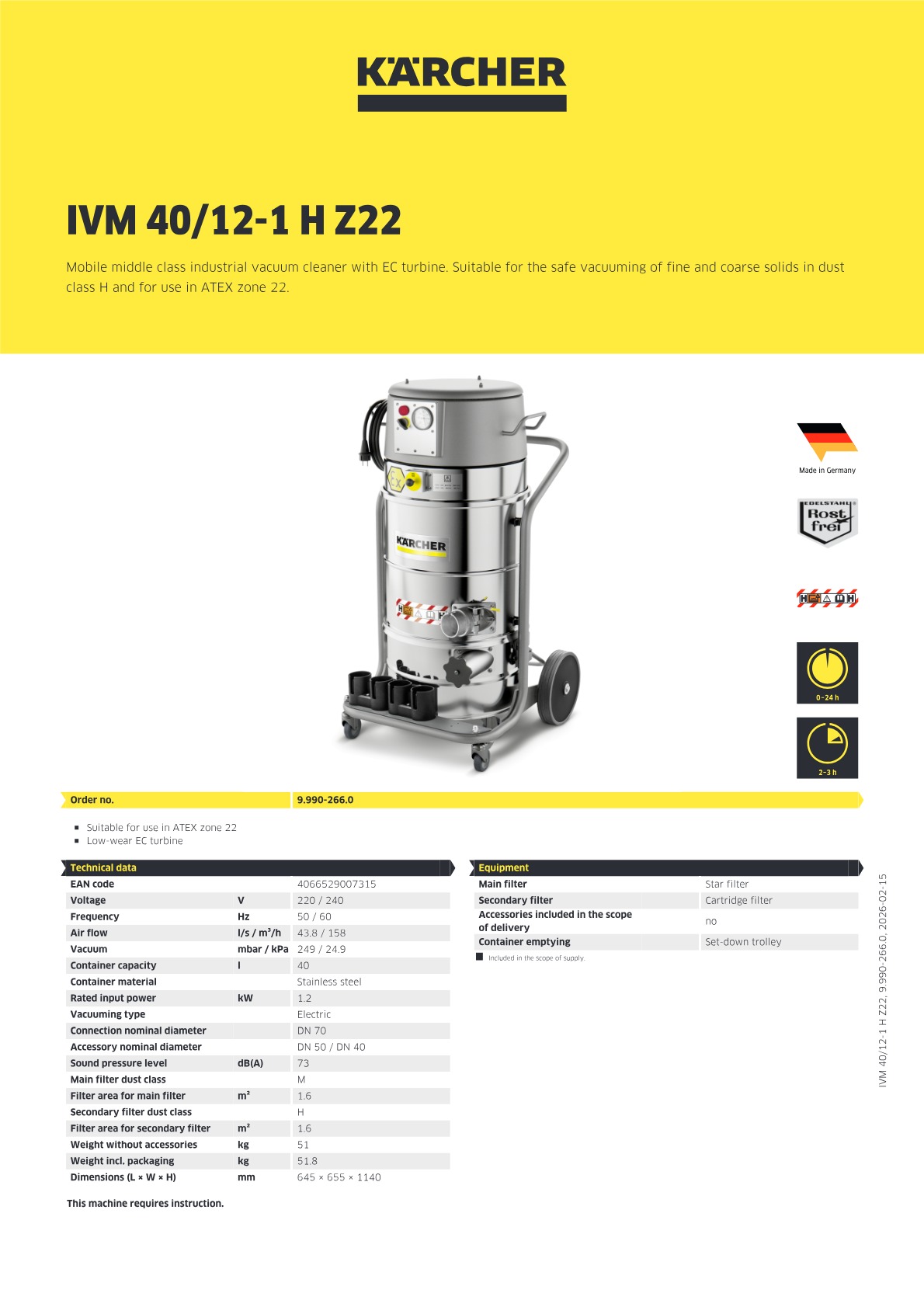

Technical data

Voltage (V)	220 - 240
Frequency (Hz)	50 - 60
Air flow (l/s / m³/h)	43.8 / 158
Vacuum (mbar / kPa)	249 / 24.9
Container capacity (l)	40
Container material	Stainless steel
Rated input power (kW)	1.2
Vacuuming type	Electric
Sound pressure level (dB(A))	73
Cable length (m)	10
Main filter dust class	M
Filter area for main filter (m²)	1.6
Secondary filter dust class	H
Filter area for secondary filter (m²)	1.6
Weight without accessories (kg)	51
Weight incl. packaging (kg)	51
Dimensions (L × W × H) (mm)	645 x 655 x 1140

Equipment

Main filter: Star filter
Secondary filter: Cartridge filter
Accessories included with machine: no

Machine with certified explosion protection.

Recommended maximum duration of use in hours/day.

Product information and benefits

For the universal vacuuming of small to medium quantities of fine and coarse solids in industrial environments – in ATEX zone 22: the IVM 40/12-1 H Z22 single motor, explosion-protected, middle class industrial vacuum cleaner with a brushless longlife 240v motor. The powerful and reliable machine works in single-phase operation, is particularly compact, robust and durable in design, very mobile and manoeuvrable and ideal for applications in which certain safety measures must be observed. Thanks to the innovative Pull and Clean filter cleaning system, the large star filter of dust class M can be cleaned easily and conveniently during operation. In addition, the vacuum cleaner is fitted with a second stage certified H cartridge filter with filter recognition and therefore also certified for dust class H. The machine's collection tank and filter tank are made of high-quality acid-resistant stainless steel, while the chassis is made of durable steel.

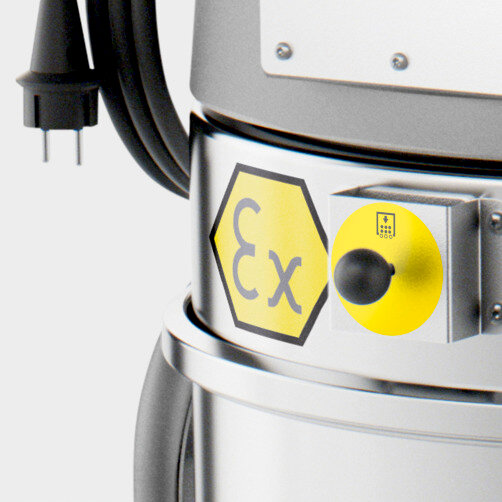

Certified for ATEX Zone 22

Explosion-proof industrial vacuum for safe vacuuming in ATEX Zone 22.

Dust class H

Overall device certified according to DIN EN 60335-2-69 for dust class H. For safely picking up solids and dusts up to dust class H.

Low-wear EC turbine

Brushless design for low-wear operation. Suitable for three-shift operation thanks to a minimum service life of 5000 hours.

Manual pull-and-clean filter cleaning

Filter is cleaned in a single step during operation. Low-wear dedusting by means of air reversal.

Features extra-large star filter and additional cartridge filter

For safely picking up solids and dusts up to dust class H. Maximum safety thanks to 2-stage filter system with optimum separation degree.

IVM 40/12-1 H Z22

Technical data

Product information and benefits

Certified for ATEX Zone 22

Dust class H

Low-wear EC turbine

Manual pull-and-clean filter cleaning

Features extra-large star filter and additional cartridge filter
