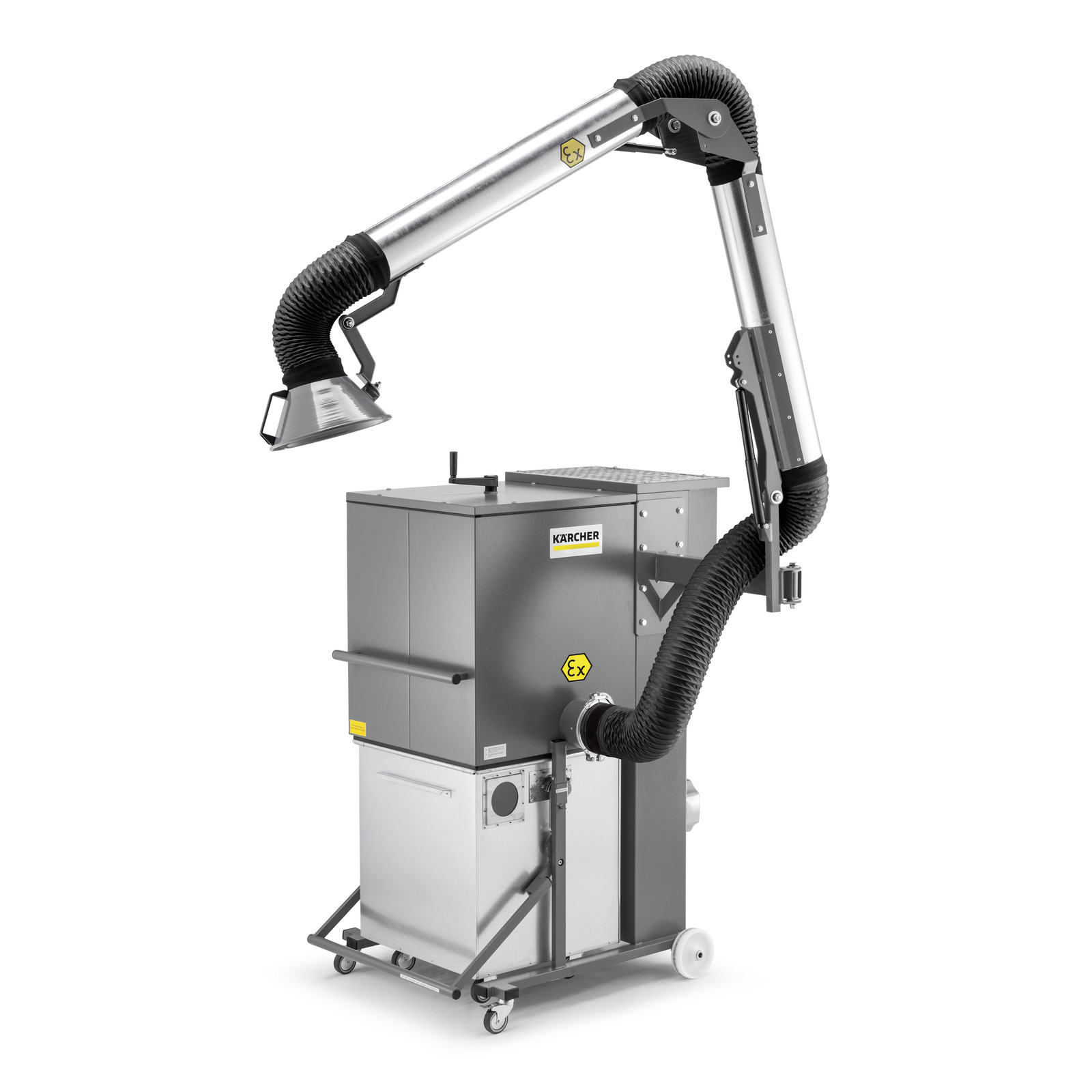

Industrial deduster

IVR ID 130/22 Z22 plus

This device requires instruction

Part number: 9.990-921.0

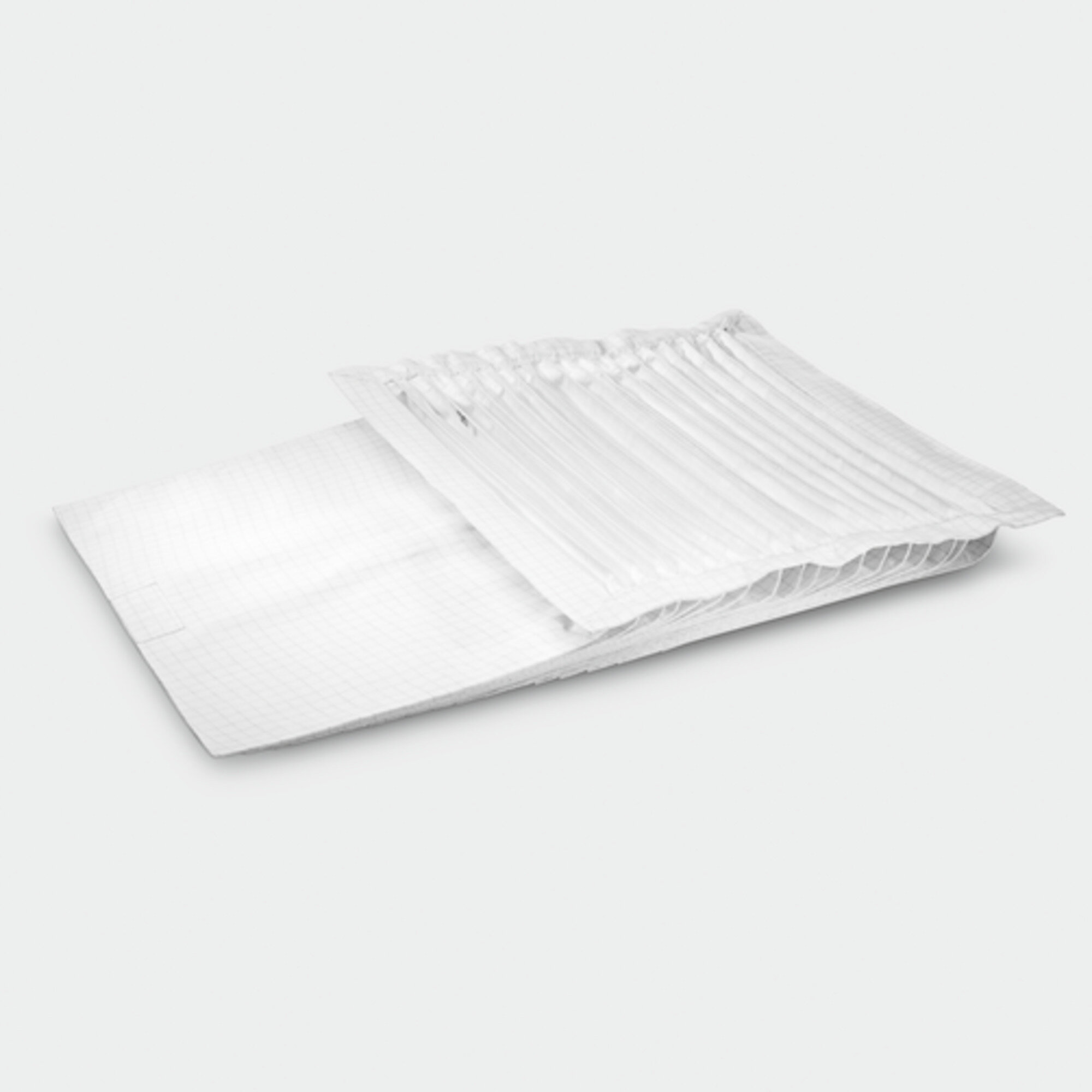

Longer service life, less maintenance effort and lower costs. Very effective filter cleaning thanks to reinforcing mesh in the filter bags.

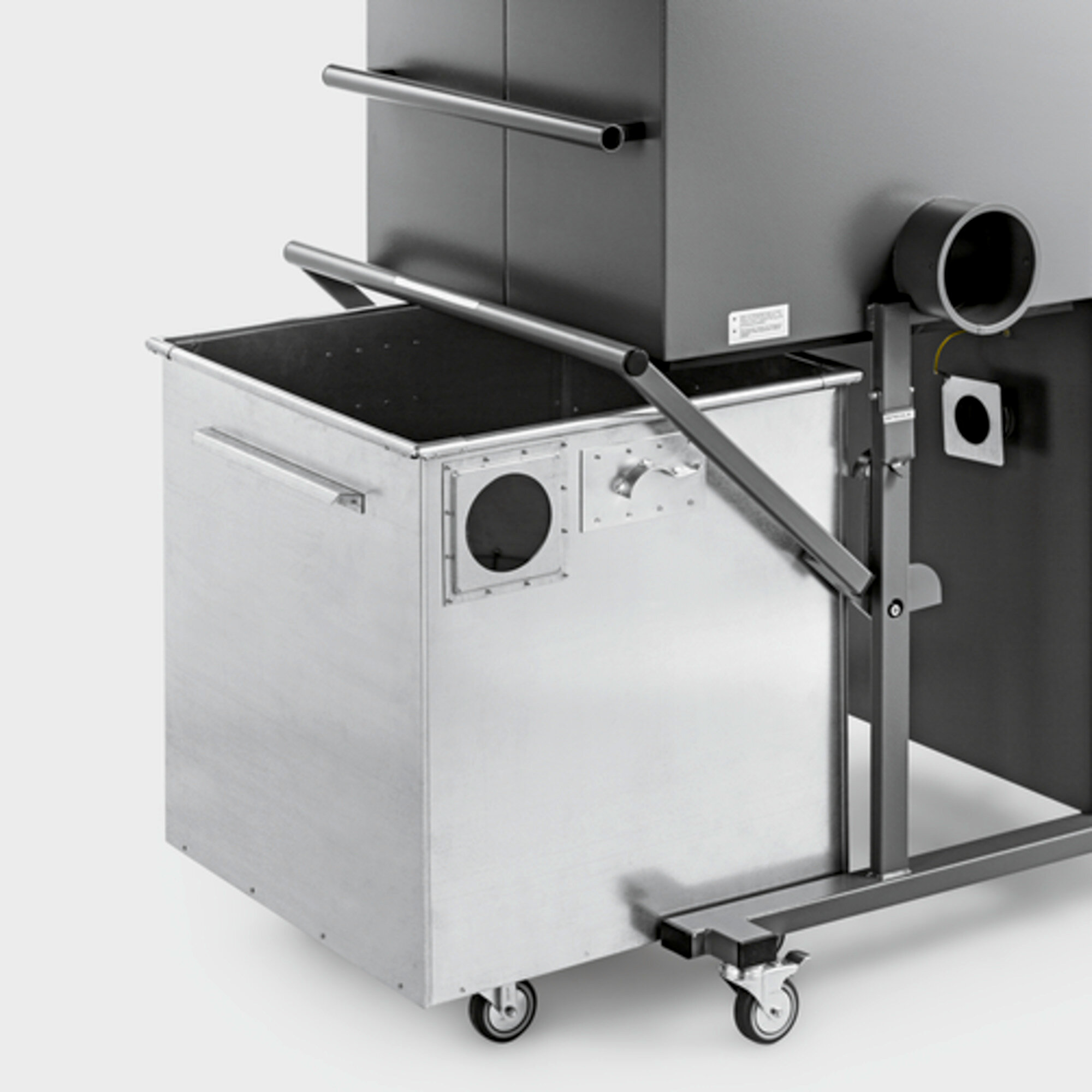

Set-down trolley and rolling container for ergonomic emptying.

Dust class M filter engineering for vacuuming hazardous dust.

Dust-free emptying thanks to PE sack with integrated closing mechanism. Reliable disposal of dust in a PE bag.

Number of current phases (Ph)	3
Voltage (V)	400
Frequency (Hz)	50
Air flow (l/s / m³/h)	369 / 1329
Vacuum (mbar / kPa)	25 / 2.5
Container capacity (l)	170
Rated input power (kW)	2.2
Vacuuming type	Electric
Filter area (m²)	9
Sound pressure level (dB(A))	72
Main filter dust class	M
Weight without accessories (kg)	187
Weight incl. packaging (kg)	187.6
Dimensions (L × W × H) (mm)	1170 x 780 x 1580
