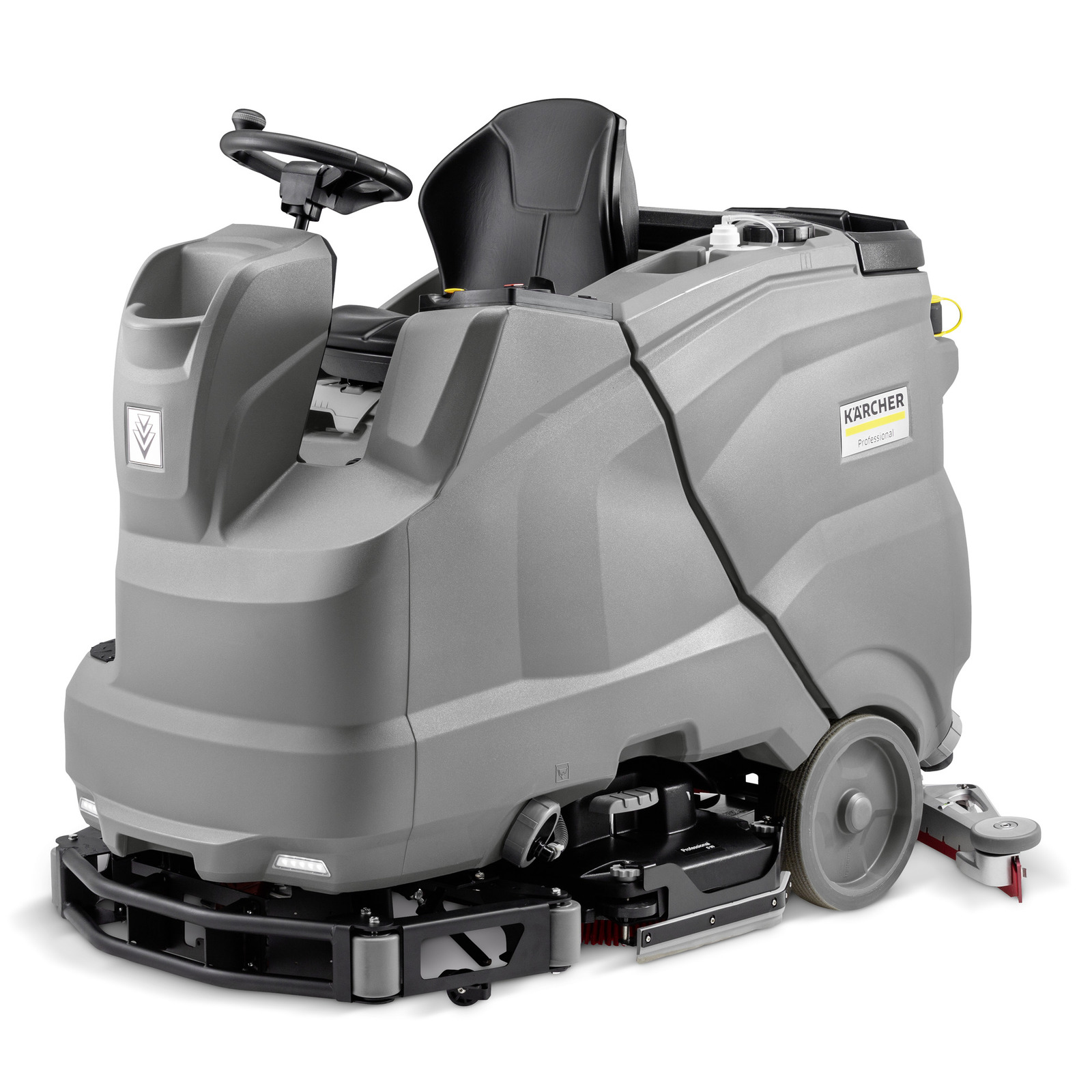

Kärcher ride-on floor scrubber with grey body, steering wheel, and black seat, designed for indoor cleaning tasks.

Scrubber drier

B 150 R BpPackDOSE+220Ah Gel +2xRI+Mop+D90

Name: B 150 R BpPackDOSE+220Ah Gel +2xRI+Mop+D90
Brand: Kärcher
SKU: 1.246-163.0
Rating: 0.0 (0 reviews)

This device requires instruction

Part number: 1.246-163.0

150 l tanks for fresh/dirty water, 90 cm disc brush head, 8 km/h speed
220 Ah AGL battery, run time of up to 4.5 h, max. 7200 m²/h, tank rinsing
Speed-responsive dosing, braking when cornering, numerous options

Make an enquiry

Technical data

Drive type	Battery
Traction drive	Electric
Working width, brushes (mm)	900
Working width, vacuuming (mm)	1180 - 1180
Fresh/dirty water tank (l)	150 / 150
Theoretical area performance (m²/h)	7200
Practical area performance (m²/h)	5040
Battery type	Maintenance-free
Battery (V / Ah)	36 / 240
Battery run time (h)	5
Battery charging time (h)	7
Voltage (power supply for battery charger) (V)	100 - 240
Frequency (power supply for battery charger) (Hz)	50 - 60
Driving speed (km/h)	8
Climbing ability (%)	10
Brush speed (rpm)	180
Brush contact pressure (kg)	94
aisle turning width (cm)	181
Water consumption (l/min)	7
Sound pressure level (dB(A))	67
Rated input power (W)	2400
Permissible total weight (kg)	957
Software updates available until	2032-01-01
Weight without accessories (kg)	218
Dimensions (L × W × H) (mm)	1700 x 1070 x 1420

Scope of supply

Disc brush, 2 Piece(s)
Battery
Built-in charger
Squeegee, curved
robust aluminium die-cast suction bar
dosing canister for detergent with closed loop system

Equipment

Auto Fill
Patented tank rinsing system
Powerful traction drive
Automatic water stop
DOSE
Parking brake
Solenoid valve
Two-tank system
Fresh water level indicator: Via water pressure
standard daytime driving light
small detergent dosing unit up to 0.25%
Type of suction lips: Linatex®
Robust front bumper
with speed-dependent water dosing
software updates and loss assessment can be done remotely via Kärcher fleet management
Kärcher colour and operating concept
Kärcher Intelligent Key System (KIK) with over 30 user languages and individual user rights
Home Base fastening possibilities for mop or similar
speed reduction in curves for increased safety
electrical and mechanical float switch
Easy Operation selector switch

picto automatic dosing CMYK oth 01 EN CI20

picto wheel angle sensor oth 01 EN 284x284px

picto easy operation oth 1 EN CI15 110454 CMYK

Product information and benefits

The compact and manoeuvrable B 150 R ride-on scrubber dryer can achieve an area performance of around 7,200 m² per hour when cleaning floors. The powerful and maintenance-free gel battery with a capacity of 240 Ah ensures long runtimes, the DOSE detergent dosing system, speed-responsive water dosing system and Eco!Mode¹⁾ ensure economical consumption, and the disc brush head with a 90 cm working width delivers the best cleaning results. The B 150 R also has robust impact protection, a steering angle sensor and a daytime running light to protect the user and machine. The machine’s control elements are colour-coded in yellow and a large display with 30 languages makes it easier to adjust the cleaning parameters. However, in order to virtually rule out operator errors, the patented KIK key system is also integrated into the machine and can be used to individually set up access rights. In order to save time before and after cleaning applications, the machine has an Auto-Fill function for filling the 150 l fresh water tank and a spray gun and automatic tank rinsing system for cleaning the waste water tank. The machine travels at 8 km/h.

Robust squeegee made from die-cast aluminium

With tear-resistant, long-lasting Linatex® suction lips for excellent vacuuming results. Fast and simple replacement of the suction lips. Swerves upon wall contact, thus avoiding damage.

Brush head with disc system

Disc brushes and pad drive boards are easy to change. Disc brushes available in different levels of hardness: soft, medium and hard. Disc models, especially for smooth floors.

Innovative KIK system

Greater protection against incorrect operation. Lower service costs. Optimum matching to the individual cleaning tasks without overwhelming the user.

With a system for the "DOSE" cleaning agent dosing unit

Saves cleaning agent. Precise and uniform dosing (adjustable from 0 to 3%). Cleaning agent can be replaced without the need to empty the fresh water tank.

Energy-saving eco!efficiency mode

Reduced power consumption. 40% longer runtime per battery charge. Even quieter and thereby ideal for noise-sensitive areas (daytime cleaning, hospitals, hotels, etc.).

Large, colour display

Clear display of the current program. Quick and easy setting changes possible.

Easy handling

Easy handling thanks to logically structured control elements with colour coding. Easier use and shorter learning curve.
