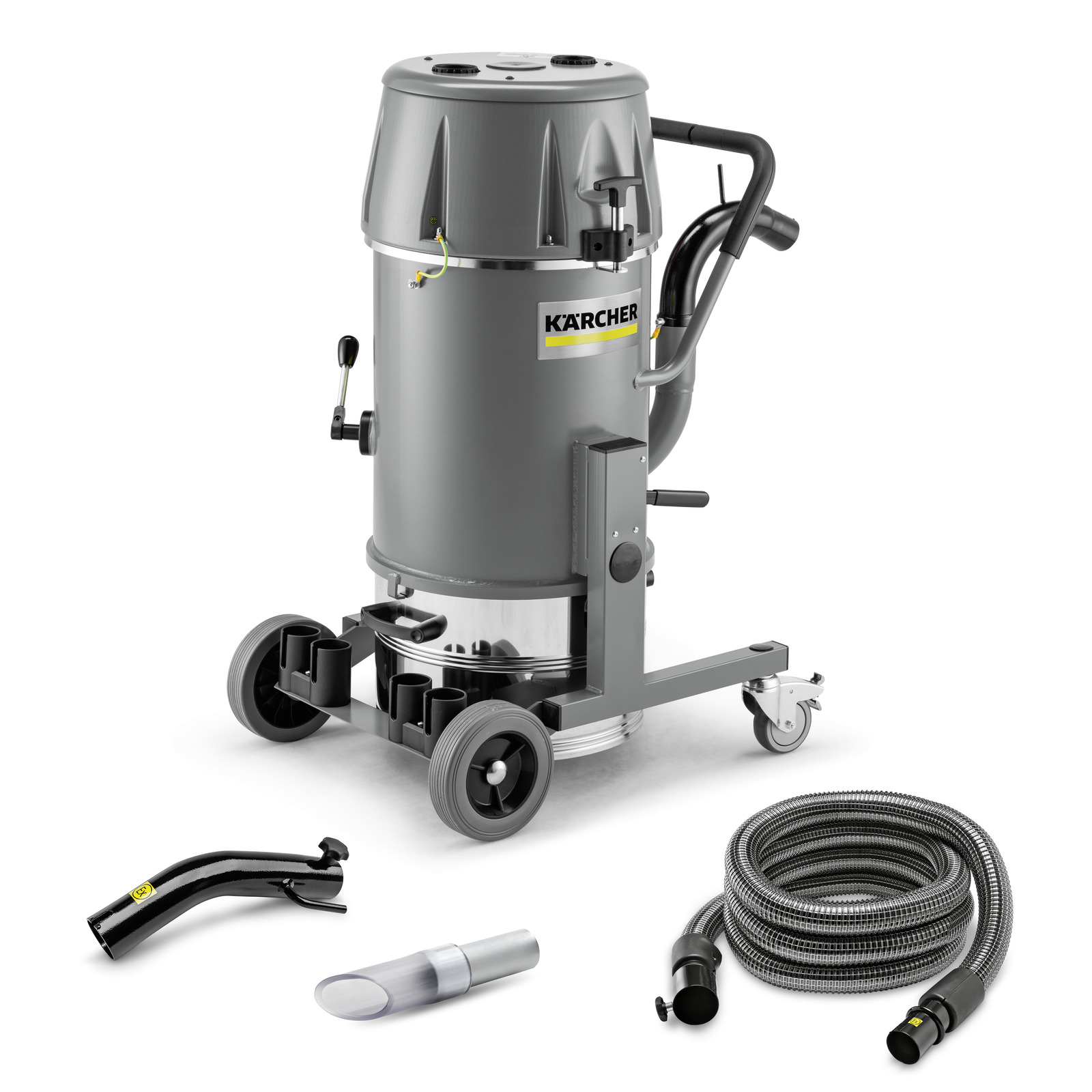

Name: IVR 35/24-2 Sc Me M ACD Set
Brand: Kärcher
SKU: 9.990-991.0
Rating: 0.0 (0 reviews)

Technical data

Number of current phases (Ph)	1
Voltage (V)	220 - 240
Frequency (Hz)	50 - 60
Air flow (l/s / m³/h)	144 / 520
Vacuum (mbar / kPa)	235 / 23
Container capacity (l)	35
Container material	Stainless steel
Rated input power (kW)	2.4
Vacuuming type	Electric
Sound pressure level (dB(A))	68
Cable length (m)	10
Main filter dust class	M
Filter area for main filter (m²)	1.4
Colour	anthracite
Weight without accessories (kg)	55.6
Weight incl. packaging (kg)	58.8
Dimensions (L × W × H) (mm)	721 x 579 x 1087

Equipment

Main filter: Pocket filter
Accessories included with machine: yes

Recommended maximum duration of use in hours/day.

Product information and benefits

Low-profile and compactly built entry-level industrial vacuum cleaner IVR 35/24-2 Sc Me M ACD Set with dust class M filter technology for vacuuming small quantities of fine shavings as well as combustible and hazardous dusts (OEL ≥ 0.1 mg/m³). The machine is designed for maintenance cleaning in workshops and production halls and operates with two bypass motors. An internally reinforced pocket filter with a 1.4 m² filter area, filter cleaning and a cyclone-like pre-separation system support the intake of fine dusts. The stainless steel collection container is connected to the vacuum cleaner via a set-down mechanism. Integrated sound insulation reduces operational noise during use. The chassis with castors and the compact dimensions support transport and mobile use at the site of use.

ACD – Applied for Combustible Dust

For the safe and economical vacuuming of combustible dusts. Conforms to the IEC 60335-2-69 standard.

Designed for high mechanical stress and versatile in use.

With practical, movable suction hose port/pipe bend. Despite its very compact design, it features numerous options for carrying accessories. The device and chassis are designed for industrial use due to their wall thickness.

Fitted with two very quiet fan motors

For powerful suction power and optimum cleaning performance. Fans can be switched on separately for individual suction power as required. The drive head with a sound pressure level of 68 dB(A) ensures an even discharge of the cooling air.

Convenient, manual filter cleaning

Effortless operation by means of an ergonomically placed lever if required. Extends the life of the filter and thus reduces the maintenance effort. Identical cleaning results, regardless of the amount of force used.

Equipped with large pocket filter

For safely vacuuming solids and dusts up to dust class M. For the safe and economical vacuuming of combustible dusts. Special geometry of the filter prevents suctioned solids getting caught.
