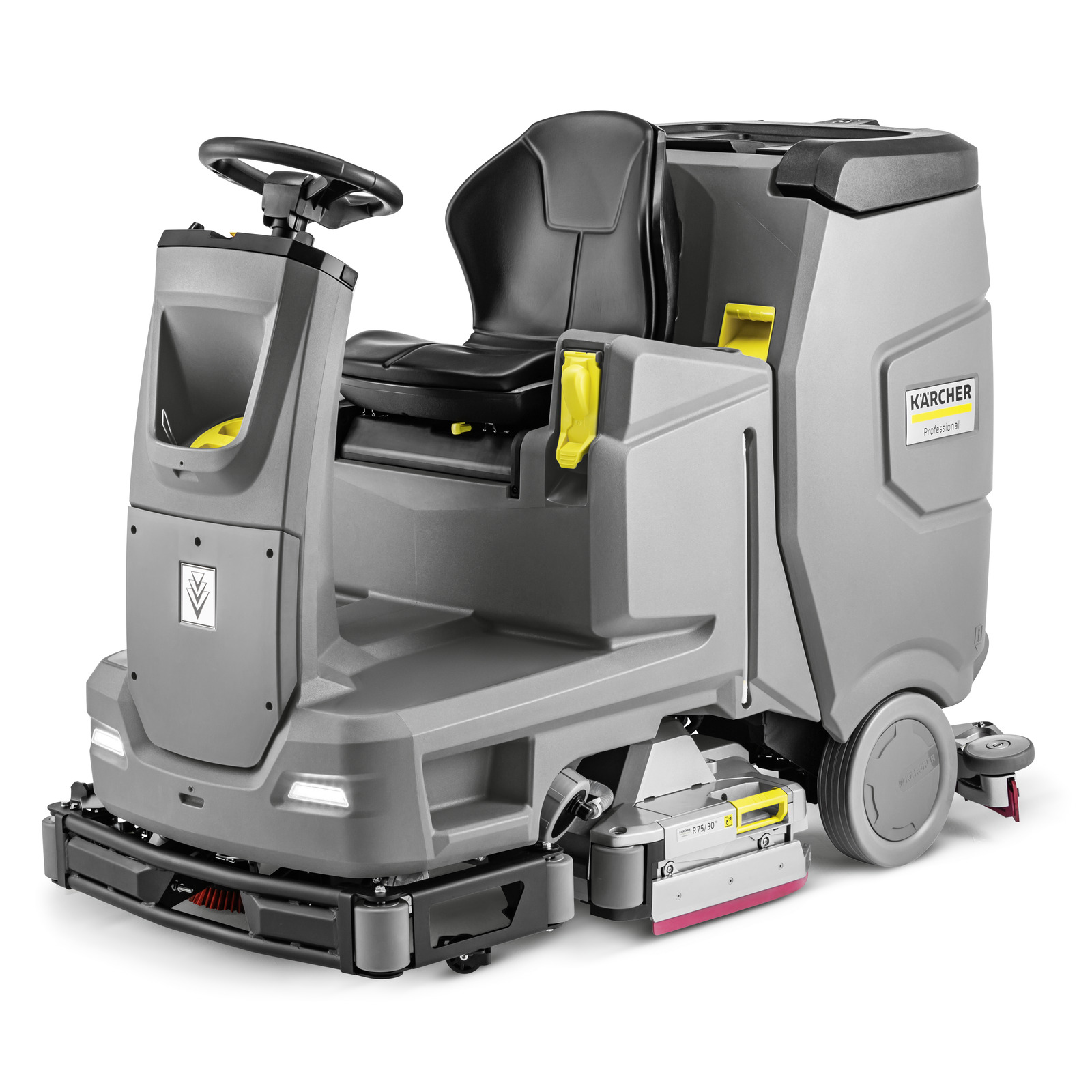

Kärcher ride-on floor scrubber with a black seat, steering wheel, and grey body featuring yellow accents.

Scrubber drier

B 110 R Bp Pack 170Ah AGM+R75+DOSE+SSD

This device requires instruction

Part number: 1.161-423.0

Reliable ride-on scrubber dryer B 110 R with 170 Ah battery, integrated battery charger, side scrubbing deck and DOSE cleaning agent dosing system. Area performance: 5100 m2/hour.

Make an enquiry

Technical data

Drive type	Battery
Traction drive	Traction motor
Working width of brushes (mm)	750
Working width, vacuuming (mm)	950
Tank of fresh/dirty water (l)	110 110
Theoretical area performance (m²/h)	5100
Practical area performance (m²/h)	3600
Battery (V / Ah)	24 / 170
Battery runtime (h)	2.5
Battery charging time (h)	7
Power supply for battery charger (V / Hz)	100 - 230 / 50 - 60
Climbing ability (%)	10
Brush rotational speed (rpm)	1200
Brush contact pressure (kg)	75
Aisle turning width (mm)	1750
Water consumption (l/min)	5.7
Sound pressure level (dB(A))	59
Rated input power (W)	2350
Total permissible weight (kg)	650
Weight without accessories (kg)	380
Dimensions (L × W × H) (mm)	1695 x 975 x 1315

Scope of supply

Battery and built-in charger included
Squeegee, curved
Side scrubbing deck
robust aluminium die-cast suction bar
dosing canister for cleaning agent with closed loop system

Equipment

Auto Fill
Patented tank rinsing system
Powerful traction drive
Automatic water stop
DOSE
Parking brake
Integrated sweeper
Solenoid valve
2-tank system
Height-adjustable seat
standard daytime driving light
small cleaning agent dosing up to 0.25%
robust front bumper
with speed-dependent water dosing
software updates and loss assessment can be done remotely via Kärcher fleet management
Kärcher colour and operating concept
Kärcher Intelligent Key System (KIK) with over 30 user languages and individual user rights
extremely quiet roller brush head for noise-sensitive areas
Home Base fastening possibilities for mop or similar
electrical and mechanical float switch
Easy Operation selector switch

Machine features are individually configurable.

Product information and benefits

Equipped with a powerful 170 Ah battery and an integrated battery charger as standard, the compact ride-on scrubber dryer B 110 R with its 110 litre tanks cleans up to 5100 m² per hour. This is achieved with the roller brush head with 75 centimetre working width and sweeping unit, as well as the side scrubbing deck for extending the working width by 10 centimetres to permit cleaning close to the edges, also under shelves. The following features also come as standard: speed-dependent water dosing and the DOSE cleaning agent dosing system for conserving resources, the Auto Fill function for the time-saving filling of the fresh water tank and the tank rinsing system for the quick cleaning of the dirty water tank. All functions are convenient, user-friendly and can be controlled in 30 languages on the large colour display or with the EASY Operation switch. The integrated KIK key system allows the individual assignment of access rights for important machine functions, thus effectively helping to avoid operating errors. Daytime driving lights are also integrated to increase passive safety.

Roller brush head with integrated sweeping unit

Made from die-cast aluminium with large bumper wheels. Saves time with integrated pre-sweeping of coarse dirt. Very smooth running and quiet operation for application in noise-sensitive areas.

Time- and cost-saving side scrubbing deck

Permits cleaning at walls or shelves close to the edges. Swerves under the machine in the event of obstacles, thus avoiding damage. Cost savings by avoiding manual reworking in border areas.

Height-adjustable seat

Perfect sitting position irrespective of the operator's physical height. Superb seating comfort during the journey. Allows longer, fatigue-free work intervals.

Speed-dependent water dosing

Reduces the water supply in bends or during slow journeys. The water-saving function increases the area performance. Faster drying of the ground and lower risk of residual water in bends.

Robust squeegee made from die-cast aluminium

With tear-resistant, long-lasting Linatex® suction lips for excellent vacuuming results. Fast and simple replacement of the suction lips. Swerves upon wall contact, thus avoiding damage.
