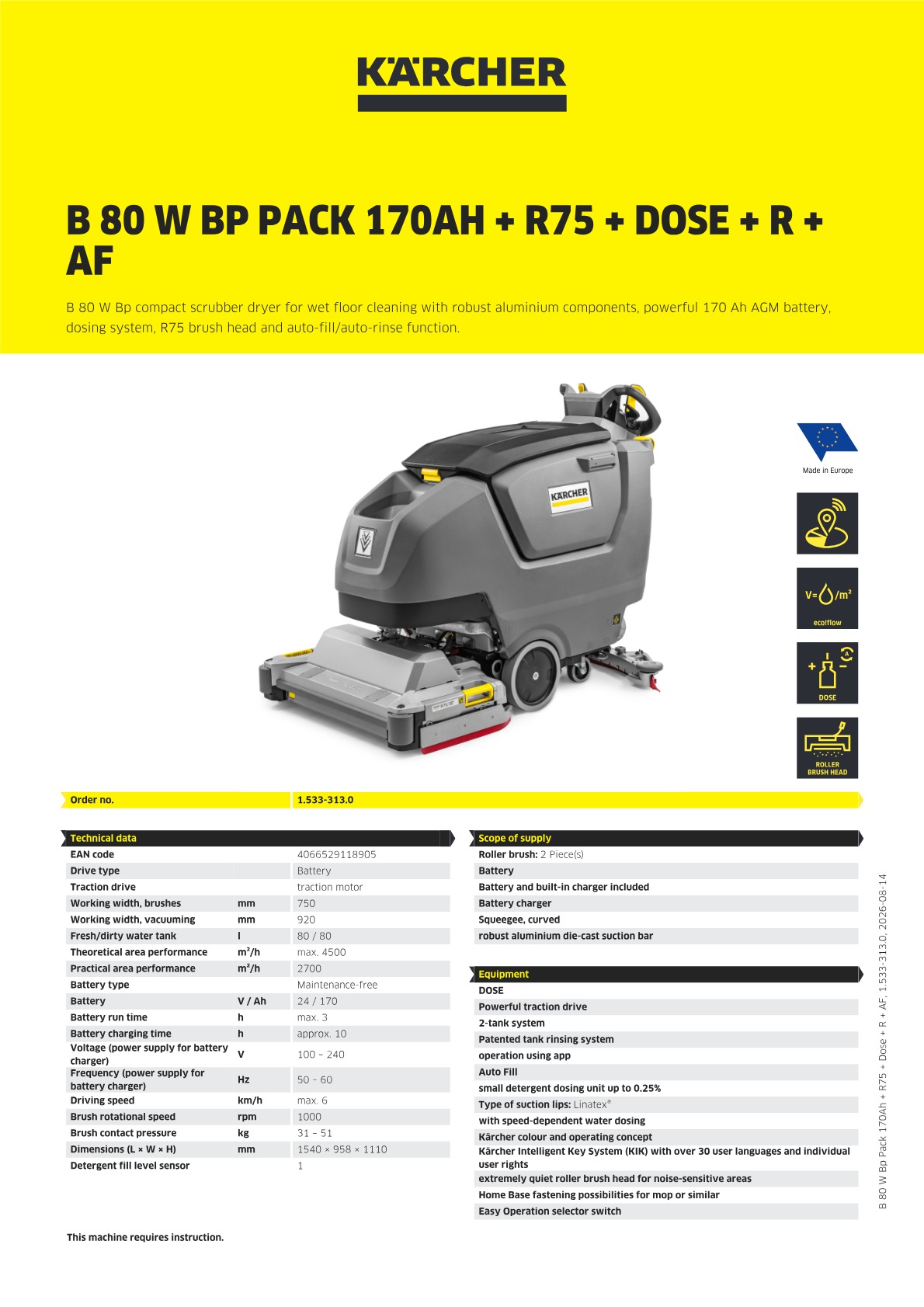

Kärcher floor scrubber with grey body, black top, and yellow accents, featuring wheels and brushes for cleaning surfaces.

Scrubber drier

B 80 W Bp Pack 170Ah + R75 + Dose + R + AF

Name: B 80 W Bp Pack 170Ah + R75 + Dose + R + AF
Brand: Kärcher
SKU: 1.533-313.0
Rating: 0.0 (0 reviews)

This device requires instruction

Part number: 1.533-313.0

B 80 W Bp compact scrubber dryer for wet floor cleaning with robust aluminium components, powerful 170 Ah AGM battery, dosing system, R75 brush head and auto-fill/auto-rinse function.

Make an enquiry

Technical data

Drive type	Battery
Traction drive	traction motor
Working width, brushes (mm)	750
Working width, vacuuming (mm)	920
Fresh/dirty water tank (l)	80 / 80
Theoretical area performance (m²/h)	4500
Practical area performance (m²/h)	2700
Battery type	Maintenance-free
Battery (V / Ah)	24 / 170
Battery run time (h)	3
Battery charging time (h)	10
Voltage (power supply for battery charger) (V)	100 - 240
Frequency (power supply for battery charger) (Hz)	50 - 60
Driving speed (km/h)	max. 6
Brush speed (rpm)	1000
Brush contact pressure (kg)	31 - 51
Dimensions (L × W × H) (mm)	1540 x 958 x 1110
Detergent fill level sensor	1

Scope of supply

Roller brush, 2 Piece(s)
Battery
Battery and built-in charger included
Battery charger
Squeegee, curved
robust aluminium die-cast suction bar

Equipment

DOSE
Powerful traction drive
Two-tank system
Patented tank rinsing system
operation using app
Auto Fill
small detergent dosing unit up to 0.25%
Type of suction lips: Linatex®
with speed-dependent water dosing
Kärcher colour and operating concept
Kärcher Intelligent Key System (KIK) with over 30 user languages and individual user rights
extremely quiet roller brush head for noise-sensitive areas
Home Base fastening possibilities for mop or similar
Easy Operation selector switch

picto automatic dosing CMYK oth 01 EN CI20

picto roller brush head CMYK oth 01 EN CI20

picto easy operation oth 1 EN CI15 110454 CMYK

picto full efficiency CMYK oth 01 EN CI20

picto high productivity CMYK oth 01 EN CI20

Product information and benefits

The B 80 W Bp compact scrubber dryer impresses with a robust design and high performance. The brush head and squeegee are made from cast aluminium. The squeegee guarantees excellent suction, also on textured surfaces and in tight corners. The innovative R75 brush head ensures superb cleaning results, while the electric lifting motor enables comfortable movement of the brush head. A powerful 170 Ah battery drives the walk-behind machine and makes possible an exceptionally long operating period for extended cleaning applications. Even with the high performance, the compact walk-behind design guarantees an optimal overview and manoeuvrability, supported by the wheel drive which facilitates operation and reduces physical strain. The DOSE dosing system ensures precise dosing of the detergent. The auto-rinse function cleans the dirty water tank contactlessly and the auto-fill system enables comfortable filling. The "Machine Connect" app allows you to conveniently access and adjust settings and information on your smartphone.

Extremely compact machine

Good overview and excellent manoeuvrability. Easy handling, safe and robust to prevent damage.

Connectivity/"Machine connect" smartphone app

Expanded range of functions and information. Resource monitoring, increase in productivity, informative animations for maintenance and troubleshooting. Adjustment of parameters, editing of KIK authorisations.

Brush head and squeegee made from cast aluminium

Robust and hard-wearing components. Fewer machine downtimes and higher productivity at lower costs.

Parabolic squeegee with Linatex suction lips

Perfect suction, even on structured surfaces and in tight bends. Reduced risk of slipping and less manual rework.

Contra-rotating rollers

Excellent cleaning results, including for deep cleaning tasks and on structured floors. High contact pressure and brush speed. The integrated pre-sweep function conveys the coarse dirt directly to the container.

Eco!Flow system

Enables speed-dependent water dosing. Consistently good cleaning results, even in bends.

New, integrated "DOSE" cleaning agent dosing system

Precise detergent dosing and empty container detection. Consistently good cleaning results and efficient cost savings.

Auto-rinse tank rinsing system

Contact-free cleaning of the dirty water tank. No splashing.

Auto-fill fresh-water filling system

Quick and easy filling of the fresh water tank. Time savings during the cleaning process, no overflowing thanks to automatic stop.
