    Kärcher carpet cleaner with transparent lid, grey body, yellow accents, and attached hose and wand.

    Spray-extraction cleaner

    Puzzi 10/2 Carpet & Upholstery Vacuum Cleaner

    Part number: 1.193-122.0

    • 10-litre fresh water tank, excellent cleaning results for carpets, powerful
    • Powerful motor technology, double pump capacity, PW connection
    • Carpet nozzle 240 mm, upholstery nozzle for insertion, spray/suction hose 2.5 m

    Make an enquiry
    Max. area performance (m²/h)
    30 - 45
    Air flow (l/s)
    74
    Vacuum (mbar / kPa)
    254 / 25.4
    Spray rate (l/min)
    2 - 2
    Spray pressure (bar)
    2
    Fresh/dirty water tank (l)
    10 / 9
    Turbine capacity (W)
    1250
    Pump capacity (W)
    80
    Voltage (V)
    230 - 240
    Colour
    anthracite
    Weight without accessories (kg)
    11.5
    Weight incl. packaging (kg)
    16.9
    Dimensions (L × W × H) (mm)
    705 x 320 x 435

    Scope of supply

    • Socket for Professional washing head
    • Upholstery nozzle
    • Detergents: 2 Piece(s)
    • Storage compartment for cleaning agent tablets
    • Cable hook
    • spray/suction gun

    Equipment

    • nozzle mouthpiece
    Made in Europe
    Puzzi 10/2 Adv, the spray extraction machine with 2 bar spray pressure. Ideal for cleaning textile surfaces. With the PW 30/1 roller brush connected, the Puzzi 10/2 Adv is impressive, even on medium-sized surfaces. The integrated defoamer dosage prevents too much foam from forming in the dirty water tank, especially when rinsing shampooed carpets. With defoamer dosage, storage compartment for cleaning agent tabs, power outlet for PW 30/1 to increase area performance, integrated cable hook and holder for handle with trigger and suction pipe.
    04d82c93 4107 4cf4 bb32 3c18b32cb559
    Excellent cleaning performance
    Perfect fibre-deep cleaning of textile surfaces. Fast drying means that surfaces can quickly be used again thanks to the excellent back suction performance. Excellent cleaning result with visible before-and-after effect.
    cfe658eb 1e88 4579 ac1b d205abd2cb6c
    Professional quality: extremely robust and durable
    Efficient pump with a long lifetime. Powerful turbine with excellent back suction performance.
    e59206f3 0d0b 4174 a95e 5f247bc5db9e
    Improved cleaning performance
    Integrated adapter for the PW 30/1 power brush. High cleaning performance. Integrated roller brush for raising the pile.
    Comprehensive set of carpet cleaning accessories
    Flexible suction lip for optimum suction angle and ultimate drying results. 240 mm wide floor nozzle with integrated spray/suction tube. Ergonomic two-handed grip for extra user comfort.
    Removable, smart 2-in-1 container
    Quick and simple to fill the fresh water tank. Convenient and simple to remove dirty water.
    Easy to operate thanks to two large push-buttons
    No need to bend down: on/off foot switch for speed and ease of use. Quick 1-step method: combined spraying and vacuuming in one operation. 2-step method: Spray on fibres and leave to soak in – then vacuum off.
    Storage compartment for cleaning agent tablets
    The integrated storage compartment means tablets are always ready to hand. For need-based dosing.
    Cable hook
    For safe storage of the power cable. Practical and protects the cables. The machine is easy and convenient to transport and store.
    Integrated storage for the upholstery nozzle and the carpet nozzle
    Thanks to the clip design, the upholstery nozzle is always within reach. Integrated suction tube holder with a floor nozzle in the carrying handle. Easy and comfortable to transport and store.

    Manufacturer: Alfred Kärcher SE & Co. KG
    Alfred-Kärcher-Strasse 28-40, 71364 Winnenden, Germany
    Tel. +49 7195 / 14-0 I Fax +49 7195 / 14-2212
    E-mail: info@karcher.com

    Manual

    Read the manual online easily

    Read online
    • placeholder

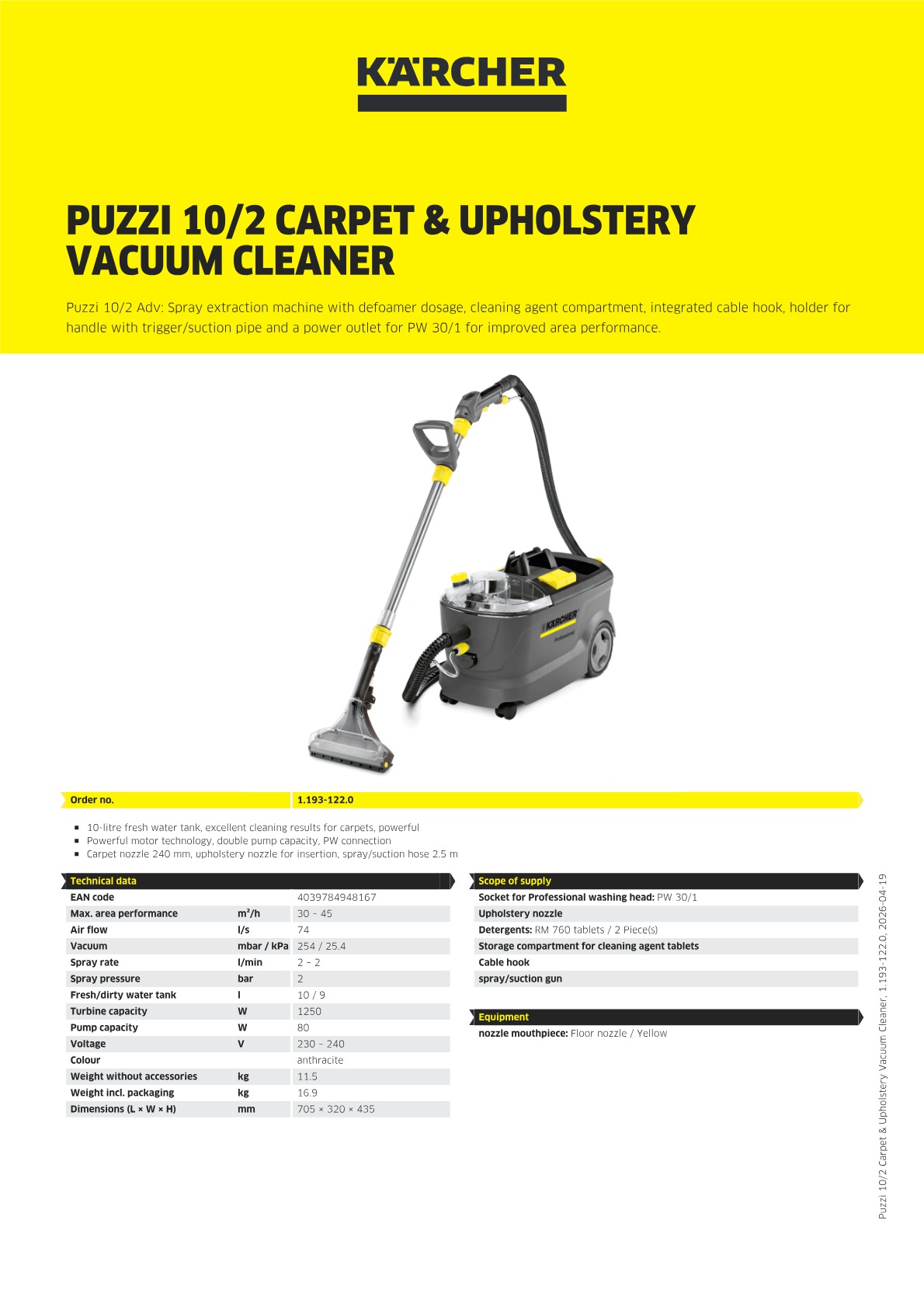

      Product information

      Download PDF
    • Manual

      Manual

      Download PDF
    • Manual

      Manual

      Download PDF
    • Manual

      Manual

      Download PDF
    • Manual

      Manual

      Download PDF
    • Manual

      Manual

      Download PDF

    Application areas

    • For fibre-deep cleaning of carpets and textile floor coverings
    • For intermediate cleaning and targeted stain removal on carpets
    • For targeted fibre-deep cleaning of smaller carpeted areas
