    Drainage pumps
    SP 22.000 Dirt Level Sensor

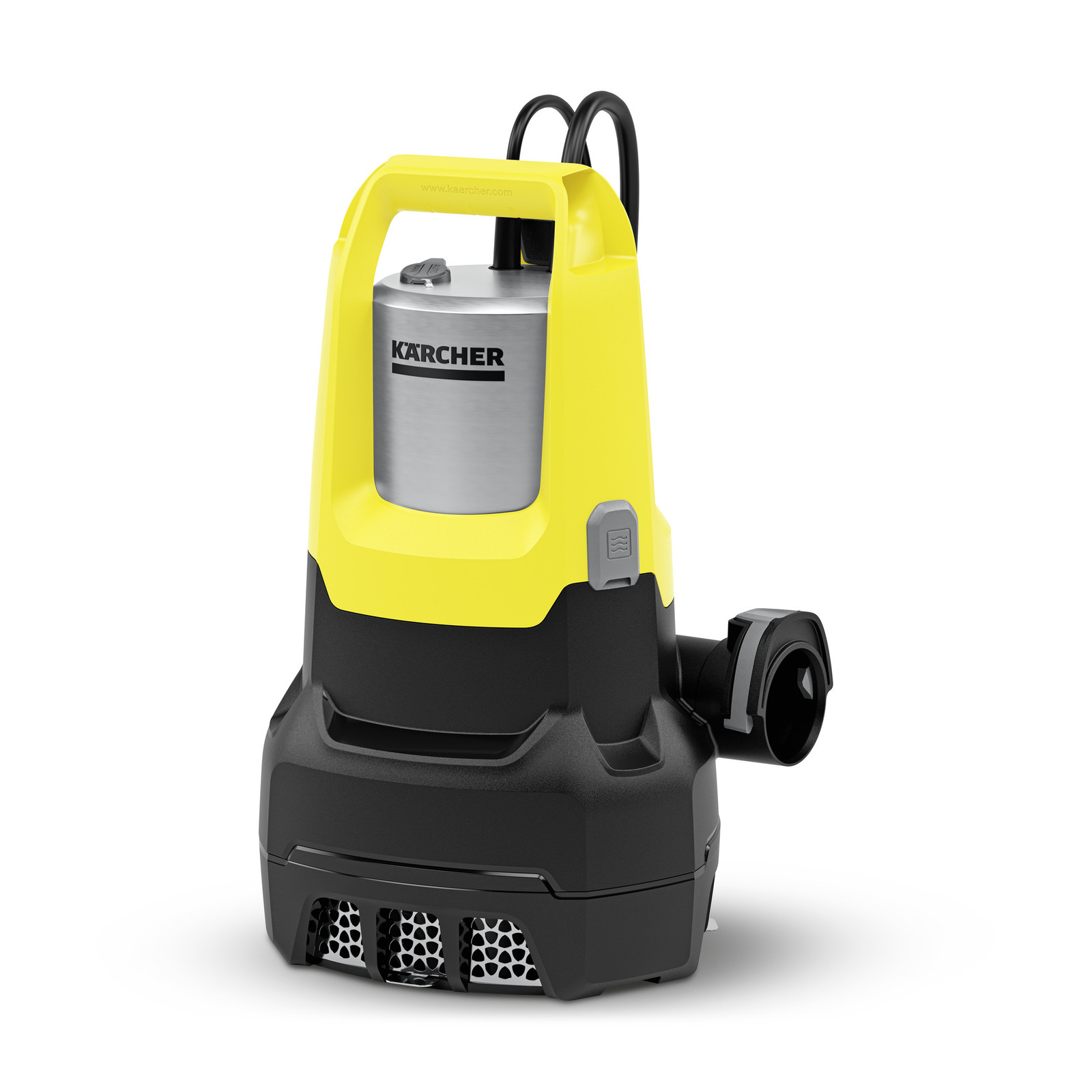

    Kärcher submersible pump with yellow and black casing, featuring a stainless steel top and a side outlet.

    Submersible dirty water pump

    SP 22.000 Dirt Level Sensor

    Part number: 1.645-852.0

    • Connecting Hose

    Rated input power (W)
    750
    Max. Flow Rate (l/h)
    22000
    Delivery Temperature (°C)
    35
    Delivery Head (m)
    8
    Pressure (bar)
    max. 0.8
    Grain Size (mm)
    30
    Depth of Immersion (m)
    7
    After-Running Time (s)
    15
    Min. Residual Water, manual (mm)
    35
    Residual Water Height (mm)
    35
    Connecting Thread
    G1 1/2
    Power Cable (m)
    10
    Voltage (V)
    230 - 240
    Frequency (Hz)
    50
    Colour
    yellow
    Weight without accessories (kg)
    6.7
    Weight incl. packaging (kg)
    7.6
    Dimensions (L × W × H) (mm)
    238 x 293 x 354

    Scope of supply

    • Connecting Hose

    Equipment

    • Comfortable Carrying Handle
    • Easy hose connection thanks to Quick Connect
    • Switching between manual/automatic operation: Switch on the pump
    • Level Sensor: Continuous switching level definition
    • Integrated Stainless Steel Prefilter
    • In automatic operation (auto), the pump automatically switches with the water level
    • In manual operation, the pump runs continuously until the minimum quantity of residual water is reached
    • Ceramic Face Seal
    An individually adjustable level sensor starts the dirty water pump SP 22,000 Dirt Level Sensor immediately upon contact with water. If the water level drops below the level sensor again, the pump stops automatically after 15 seconds. The extremely powerful submersible pump is ideal for draining, for example, large garden ponds, flooded basements or construction pits, as it can reliably pump out dirty water (dirt particles of up to 30 mm) at a rate of up to 22,000 l/h. With even dirtier water, the integrated pull-down stainless steel prefilter serves to protect against blockages. The submersible pump can also be switched to continuous operation by means of the Automatic/Manual switch. It can reliably pump water away down to a residual water level of 35 millimetres – both in continuous operation and in automatic mode, when the level sensor is set accordingly. With the Quick Connect connection thread, 1", 1 1/4" and 1 1/2" inch hoses can be connected without complication. Thanks to the stainless steel housing and robust slide ring sealing, the pump has a particularly long service life. An extended warranty of five years is available as an option.
    Ceramic Face Seal
    For an extra long lifetime.
    Level Sensor
    For continuously variable definition of the switch-on and switch-off points of the pumps.
    Quick Connect
    Connection thread for quick and uncomplicated connection of 1", 1 1/4" and 1 1/2" hoses.
    Designed for dirty water
    Reliable pumping of water with dirt particles up to 30 mm in size.
    Auto/Manual Switch
    For switching between automatic and manual mode.

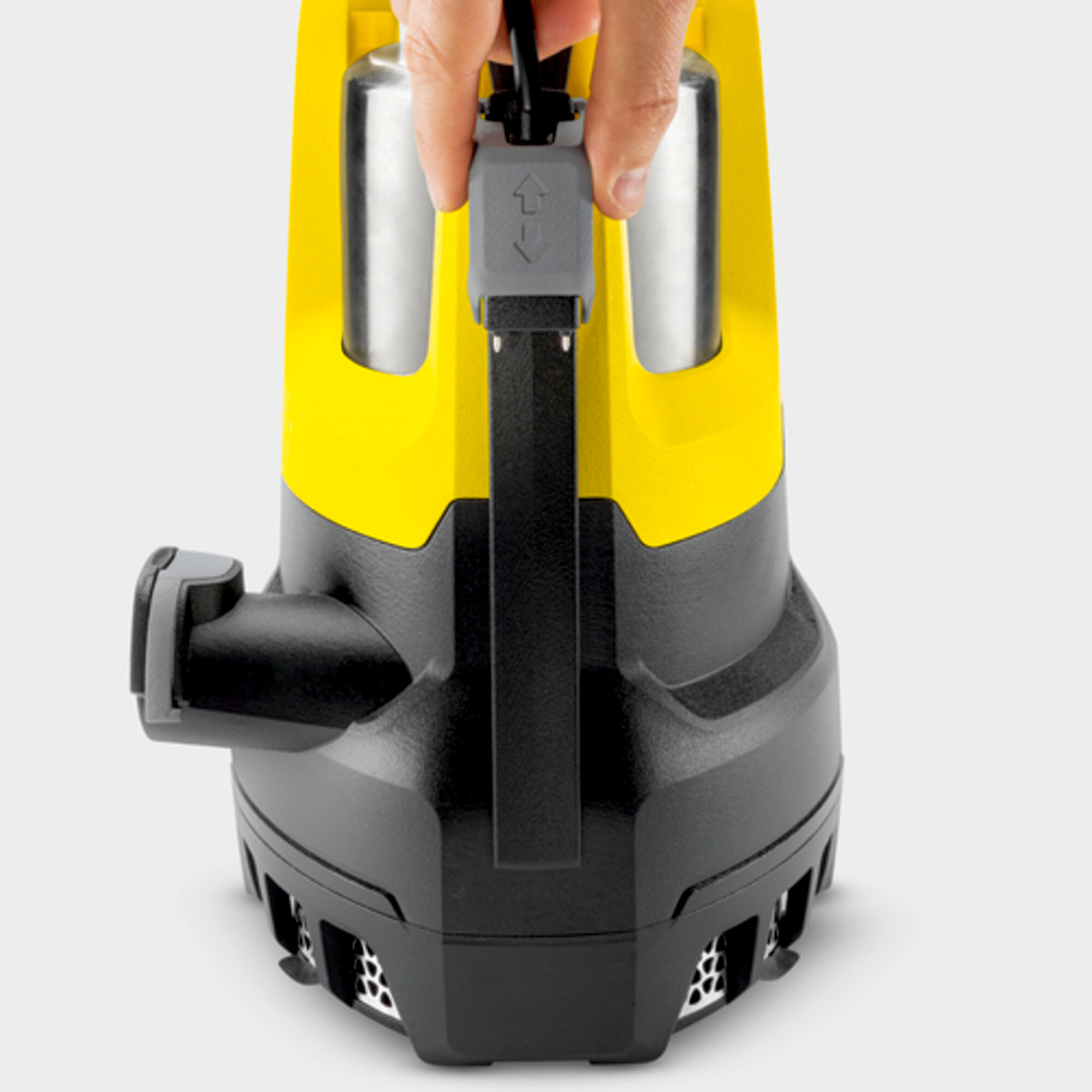

    Comfortable Carrying Handle
    Comfortable to hold and can also be used as a rope holder.
    Robust and integrated stainless steel prefilter
    Protects the pump against excessively heavy soiling and thus prevents the pump impeller from becoming blocked.

    Manufacturer: Alfred Kärcher SE & Co. KG
    Alfred-Kärcher-Strasse 28-40, 71364 Winnenden, Germany
    Tel. +49 7195 / 14-0 I Fax +49 7195 / 14-2212
    E-mail: info@karcher.com

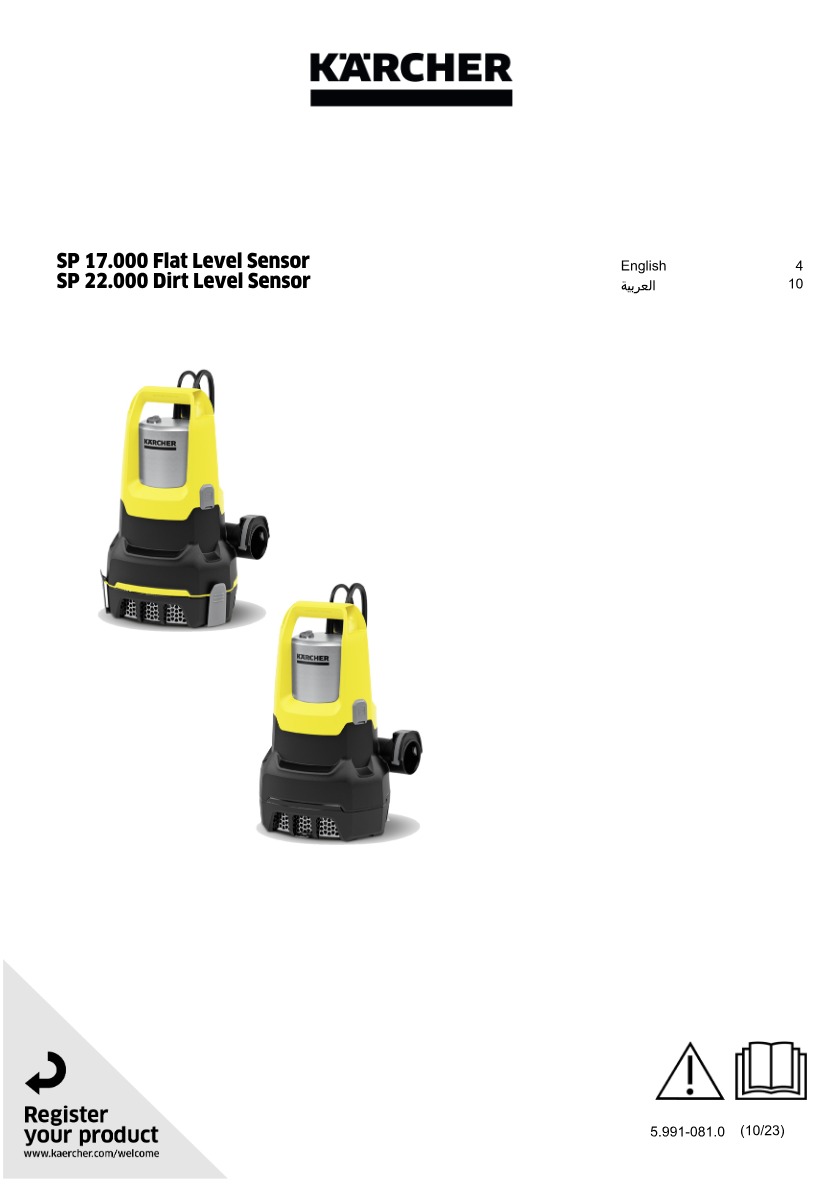

    • Manual

      Manual

      Download PDF

    Application areas

    • Pumping water from garden ponds
    • Use in event of flooding
    • Draining building pits up to max. 100 m³

    SP 22.000 Dirt Level Sensor
